LNA
0.05~31GHz, Gain30dB, P-1dB15dBm, 2.92-K
- DLNA8-0.05-31G-3926
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, small volume.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.05 | ~ | 31 | GHz |
| Gain | 30 | dB | ||
| Gain flatness 1 | ±1 | dB@0.05-1Ghz | ||
| Gain flatness 2 | ±4 | dB@1-31Ghz | ||
| Noise figure | 5 | dB | ||
| VSWR | 2.5 | |||
| P-1dB | 15 | dBm | ||
| Spur reduction | 70 | dBc |
Other parameters
| Connector | 2.92-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 500mA |
| Operation Temp. | -40~+75℃ Design assurance |
| Quality Grade | Industrial grade |
Typical test data
| Frequency | S11 | S22 | GAIN | P-1 | PSAT | NOISE |
| GHz | VSWR | VSWR | dB | dBm | dBm | dB |
| 0.01 | 1.2 | 2.07 | 34.01 | 14.6 | 18.6 | 13.14 |
| 0.05 | 1.21 | 1.17 | 34.71 | 19.9 | 23.4 | 7.01 |
| 2.37 | 1.57 | 1.1 | 33.85 | 21 | 23.8 | 4.23 |
| 4.72 | 1.63 | 1.38 | 33.89 | 22.4 | 25.2 | 3.57 |
| 7.08 | 1.36 | 1.58 | 33.87 | 22.4 | 25.1 | 3.05 |
| 9.44 | 1.44 | 1.4 | 33.81 | 23.5 | 25.4 | 2.85 |
| 11.79 | 1.57 | 1.42 | 34.25 | 23.2 | 25 | 2.49 |
| 14.15 | 1.48 | 1.43 | 34.73 | 23.2 | 24.4 | 2.54 |
| 16.51 | 1.56 | 1.34 | 35.53 | 23.9 | 24.9 | 2.9 |
| 18.86 | 1.94 | 1.28 | 35.65 | 23 | 24.8 | 3.21 |
| 21.22 | 1.67 | 1.47 | 36.17 | 23.9 | 24.8 | 3.28 |
| 23.57 | 1.87 | 1.2 | 37.1 | 24.2 | 25.5 | 3.67 |
| 25.93 | 1.42 | 1.35 | 37.97 | 21.8 | 23 | 3.59 |
| 28.29 | 1.26 | 1.49 | 38.93 | 21.8 | 22.8 | 3.56 |
| 30.64 | 1.6 | 1.6 | 38.35 | 20.5 | 22.1 | 3.7 |
| 33 | 2.36 | 2.32 | 34.98 | 19.3 | 20 | 4.28 |

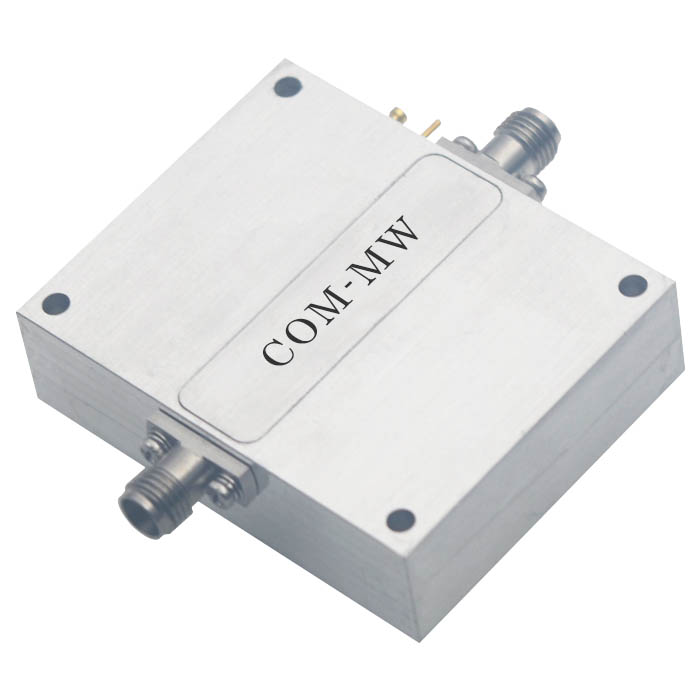

Reference picture

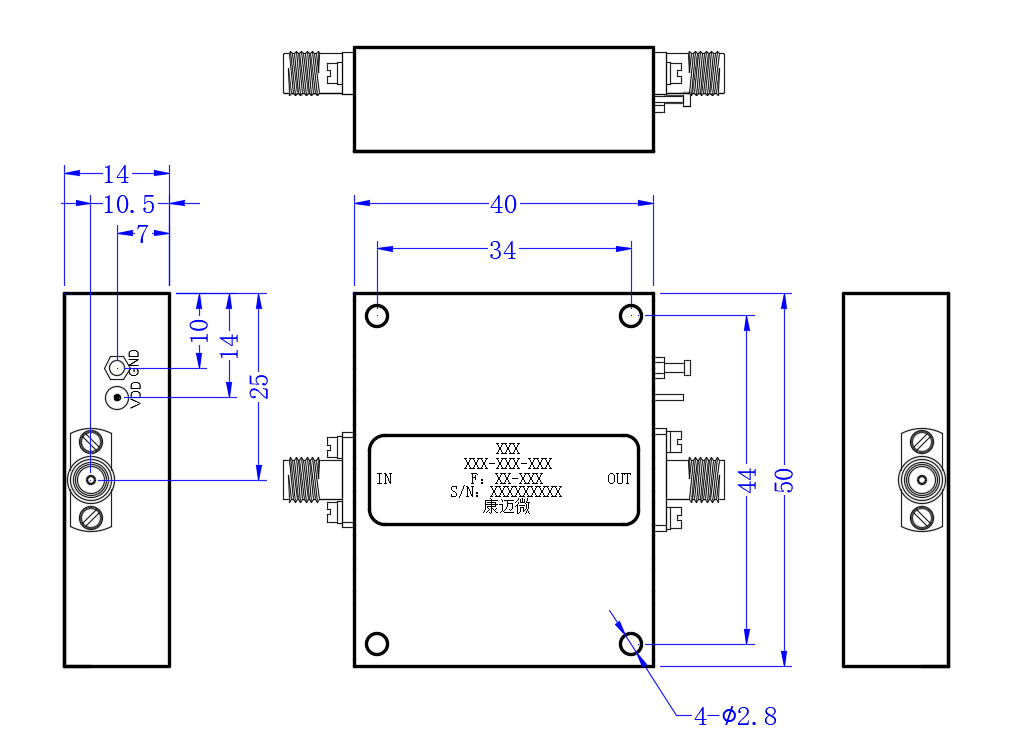

Outline structure diagram

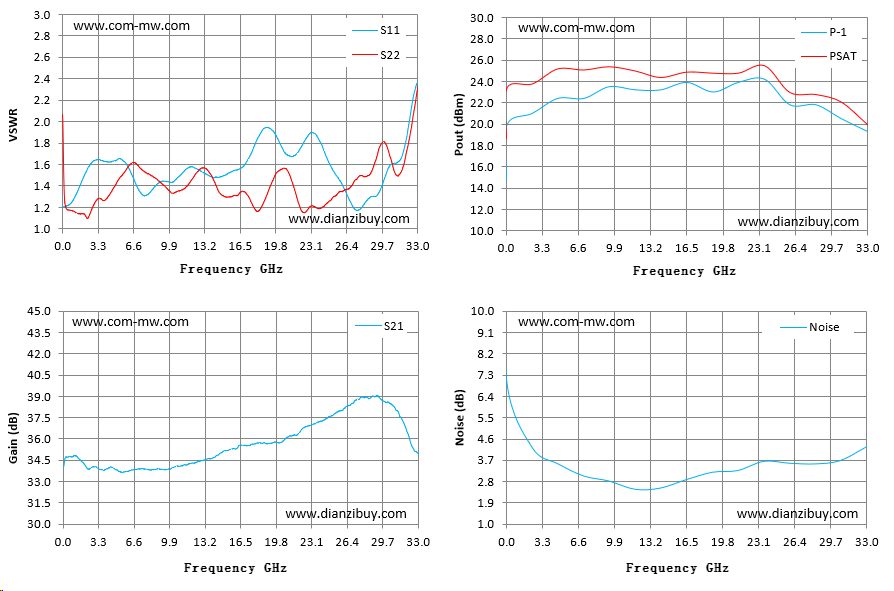

Typical test curve
