LNA
6~18GHz, Gain25dB, Noise figure2dB, P-1dB10dBm, SMA
- DLNA8-6-18G-2557
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Small volume.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 6 | ~ | 18 | GHz |
| Gain | 25 | dB | ||
| Gain flatness | 4.6 | dB | ||
| Noise figure | 2 | dB | ||
| VSWR | 2 | |||
| P-1dB | 10 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +12V |
| Working current | 100mA |
| Operation Temp. | -30~+70℃ Design assurance |
Typical test data
| F(GHz) | P-1(dBm) | NF(dB） | S11 VSWR | S22 VSWR | Gain(dB) |
| 5.6 | 11.2 | 1.67 | 1.38 | 1.44 | 26.2 |
| 7.2 | 11.8 | 1.6 | 1.3 | 1.73 | 25.3 |
| 8.8 | 13.1 | 1.61 | 1.07 | 1.51 | 25.4 |
| 10.4 | 14.1 | 1.62 | 1.32 | 1.23 | 26.1 |
| 12 | 14.8 | 1.77 | 1.54 | 1.27 | 26.2 |
| 13.6 | 14.4 | 1.77 | 1.49 | 1.65 | 27.2 |
| 15.2 | 14.5 | 1.84 | 1.24 | 1.54 | 28.3 |
| 16.8 | 13.3 | 1.9 | 1.3 | 1.2 | 29 |
| 18.4 | 11.4 | 1.95 | 1.9 | 2.4 | 29.6 |

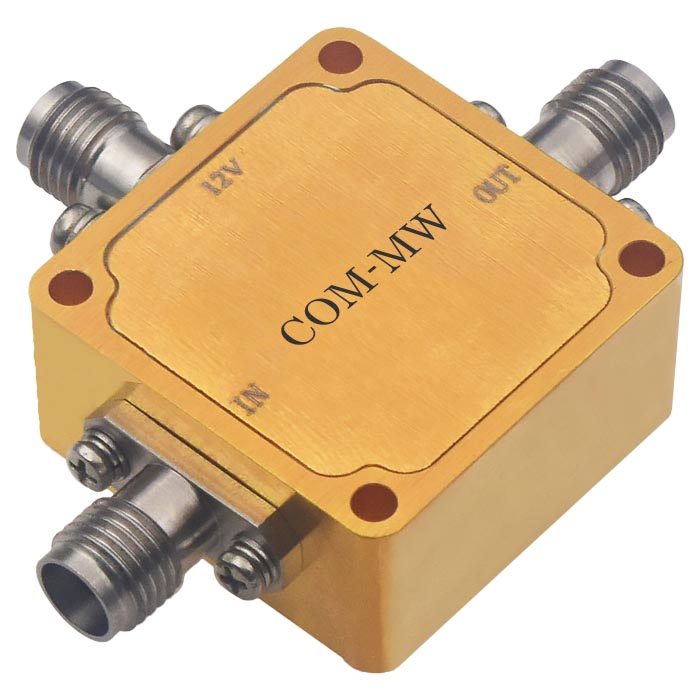

Reference picture
Configuration(mm)

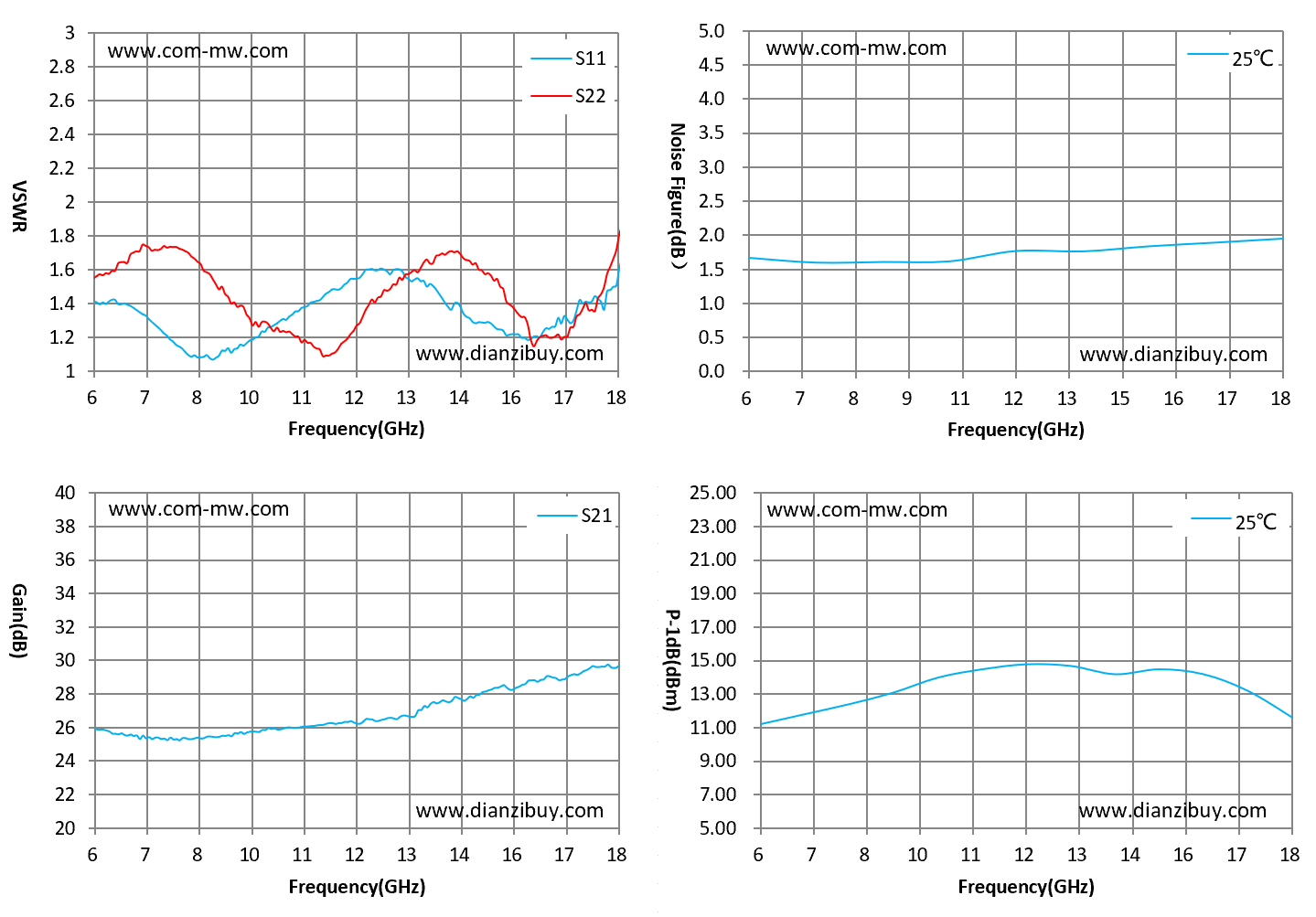

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
