LNA
0.01~50GHz, Gain36dB, Noise figure4.5dB, P-1dB12dBm, 2.4
- DLNA8-0.01-50G-9513
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.01 | ~ | 50 | GHz |
| Gain | 36 | dB | ||
| Gain flatness | ±3 | dB | ||
| Noise figure | 4.5 | dB | ||
| VSWR | 2.0 | |||
| P-1dB | 12 | dBm | ||
| Psat | 15 | dBm | ||
| Max input power | 5 | dBm |
Other parameters
| Connector | 2.4-F or K |
| Impedance | 50Ω |
| Working voltage | +5V |
| Working current | 220mA |
| Operation Temp. | -30~+60℃ Design assurance |
Typical test data
| Frequency GHz | S11 VSWR | S22 VSWR | S21 Gain dB | S21 P-1 dBm | S21 Psat dBm |
| 0.01 | 1.11 | 1.48 | 37.45 | 13.50 | 17.40 |
| 3.58 | 1.18 | 1.40 | 36.88 | 14.50 | 17.90 |
| 7.15 | 1.14 | 1.34 | 38.59 | 15.20 | 18.40 |
| 10.72 | 1.08 | 1.56 | 38.79 | 15.60 | 18.50 |
| 14.29 | 1.19 | 1.36 | 39.11 | 15.10 | 18.00 |
| 17.86 | 1.14 | 1.32 | 37.56 | 14.50 | 18.00 |
| 21.43 | 1.47 | 1.05 | 37.33 | 14.80 | 18.10 |
| 25.01 | 1.24 | 1.45 | 37.41 | 14.00 | 17.50 |
| 28.58 | 1.11 | 1.37 | 38.24 | 14.00 | 18.20 |
| 32.15 | 1.07 | 1.44 | 37.62 | 14.50 | 18.30 |
| 35.72 | 1.06 | 1.35 | 37.95 | 14.10 | 17.60 |
| 39.29 | 1.44 | 1.39 | 38.15 | 13.80 | 17.20 |
| 42.86 | 1.49 | 1.76 | 37.50 | 12.60 | 16.50 |
| 46.43 | 1.88 | 1.34 | 36.82 | 9.80 | 15.10 |
| 50.00 | 1.49 | 1.94 | 35.53 | 8.40 | 13.70 |

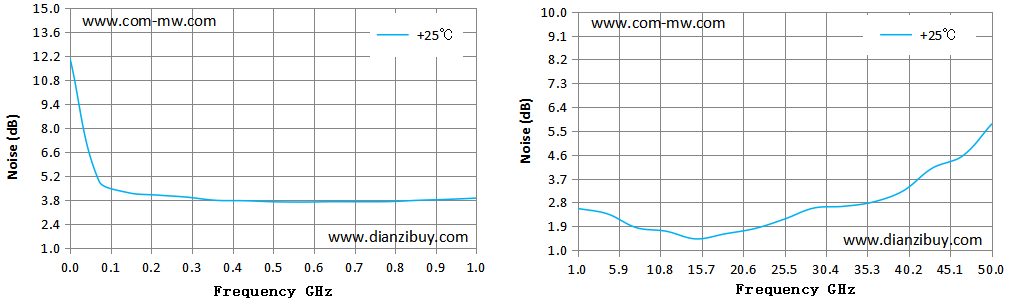

Typical test curve

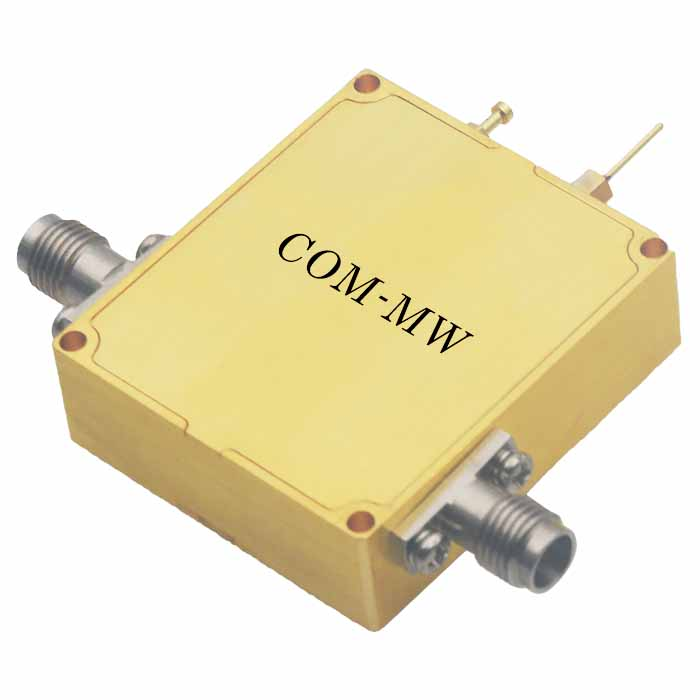

Reference picture

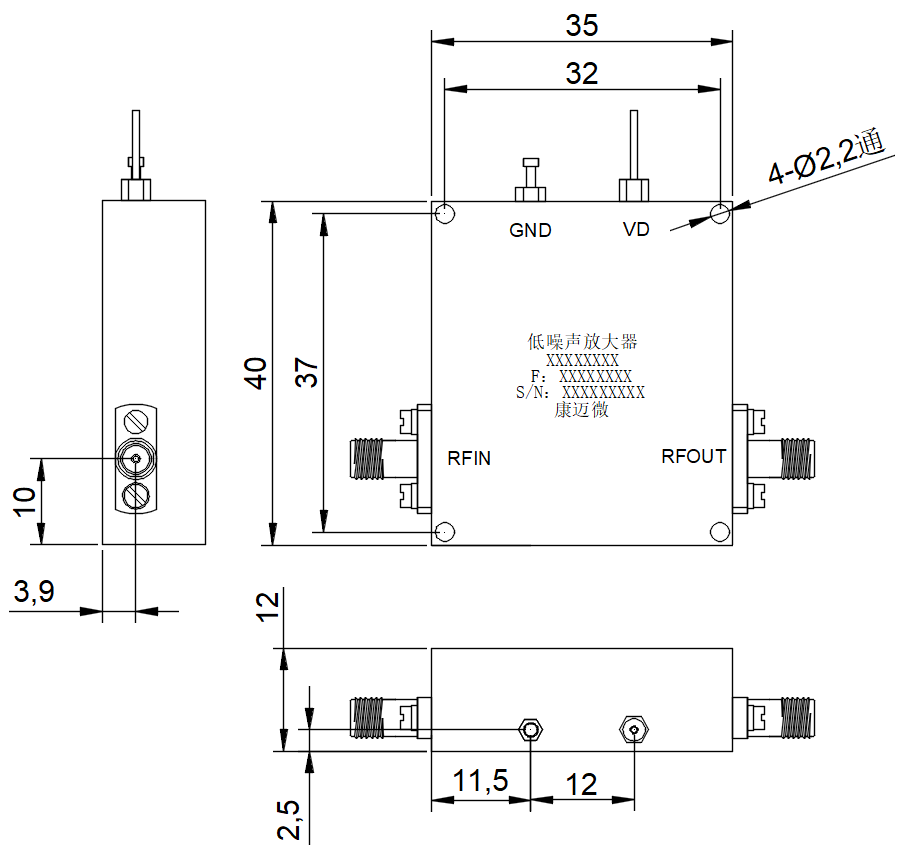

Configuration(mm)

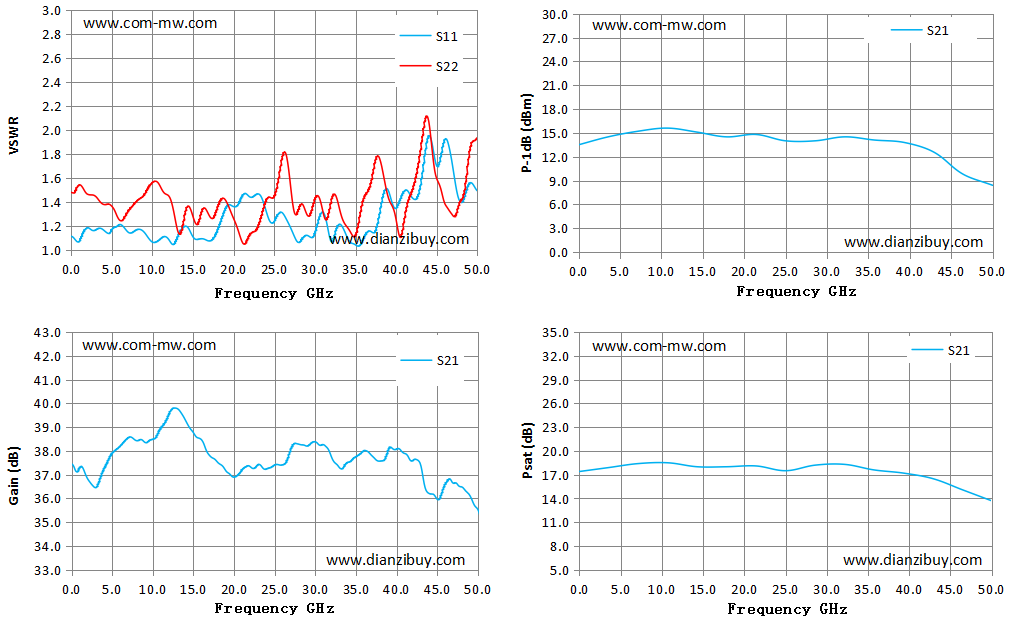

Typical test curve
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
Working or storage temperature less than 125 ℃;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
