LNA
400~1500MHz, Gain43dB, Noise figure1dB, P-1dB18dBm, SMA
- DLNA8-400-1500-2917
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 400 | ~ | 1500 | MHz |
| Gain | 40 | 43 | dB | |
| Gain flatness | ±1 | dB | ||
| Noise figure | 1 | 1.2 | dB | |
| VSWR | 1.7 | 2.2 | ||
| P-1dB | 18 | dBm |
Other parameters
| Connector | SMA-K |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12V |
| Working current | 200mA |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| Frequency(GHz) | S11 VSWR | S22 VSWR | S21 gain | S21 Noise | S21 P-1dB |
| 0.2 | 6.09 | 1.65 | 43.98 | 1.5 | 20.1 |
| 0.4 | 1.95 | 1.62 | 44.5 | 0.77 | 20.4 |
| 0.6 | 1.53 | 1.54 | 44.29 | 0.55 | 20.5 |
| 0.8 | 1.47 | 1.45 | 44.43 | 0.67 | 20.3 |
| 1 | 1.48 | 1.37 | 44.53 | 0.79 | 20.1 |
| 1.2 | 1.51 | 1.33 | 44.61 | 0.99 | 20.2 |
| 1.4 | 1.48 | 1.29 | 44.38 | 0.99 | 19.8 |
| 1.6 | 1.43 | 1.23 | 43.87 | 0.98 | 19.1 |
| 1.8 | 1.38 | 1.14 | 43.13 | 1.09 | 18.7 |
| 2 | 1.4 | 1.08 | 42.25 | 1.1 | 17.7 |
| 2.2 | 1.48 | 1.12 | 41.47 | 1.22 | 16.8 |
| 2.4 | 1.58 | 1.2 | 40.92 | 1.38 | 16.9 |
| 2.6 | 1.72 | 1.27 | 40.72 | 1.57 | 17.1 |
| 2.8 | 1.85 | 1.29 | 40.71 | 1.76 | 17 |
| 3 | 1.96 | 1.26 | 40.94 | 1.83 | 16.7 |
Reference picture
Configuration(mm)

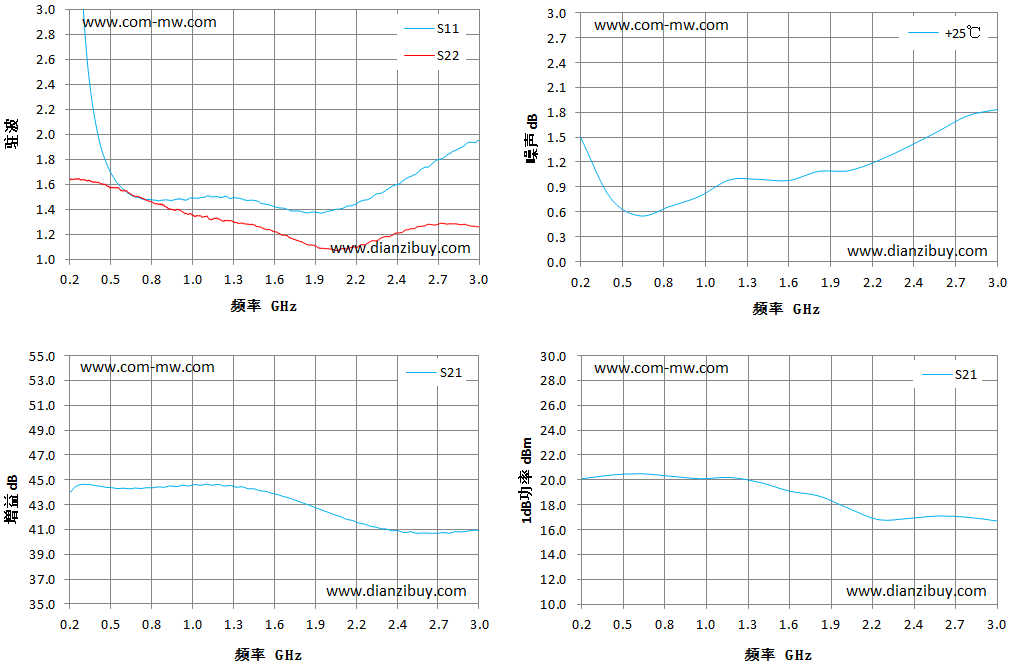

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
