LNA
18~40GHz, Gain30dB, Noise figuredB, P-1dB10dBm, 2.92-K, Supports 220V power supply and battery power supply
- DLNA8-18000-40000-1755
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, multiple power supply modes.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 18 | ~ | 40 | GHz |
| Gain | 30 | dB | ||
| Gain flatness | 4 | dB | ||
| Noise figure | 4 | dB | ||
| VSWR | 2.5 | |||
| P-1dB | 10 | dBm |
Other parameters
| Connector | 2.92-K |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12V or 220V |
| Working current | 300mA@12V |
| Operation Temp. | -30~+60℃ Design assurance |
| Other | Supports 220V power supply and battery power supply |

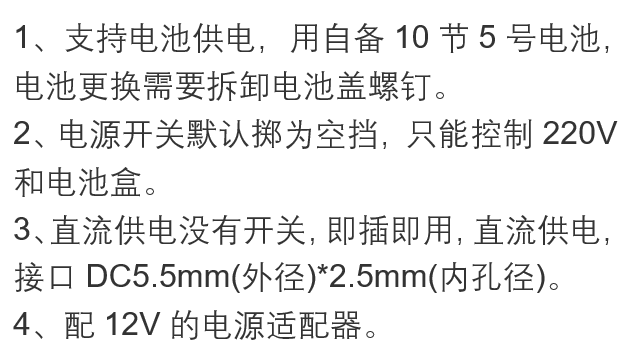

Function Description

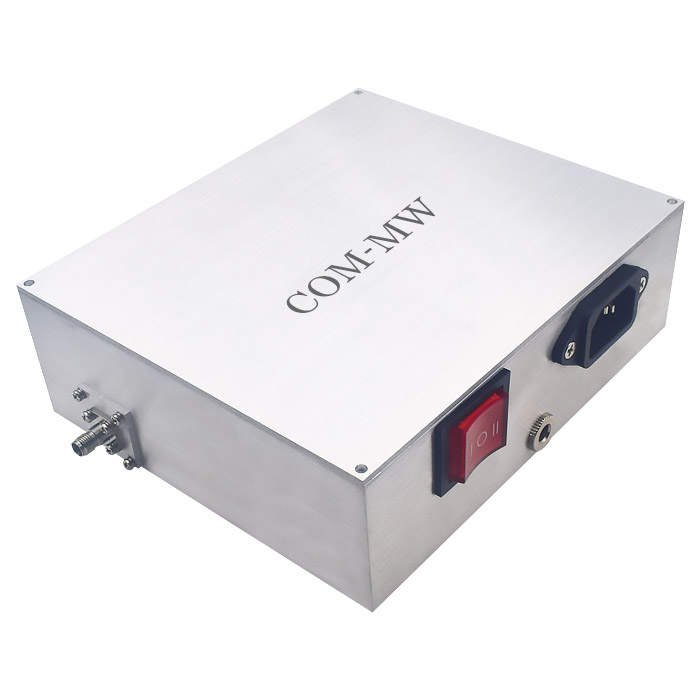

Reference picture

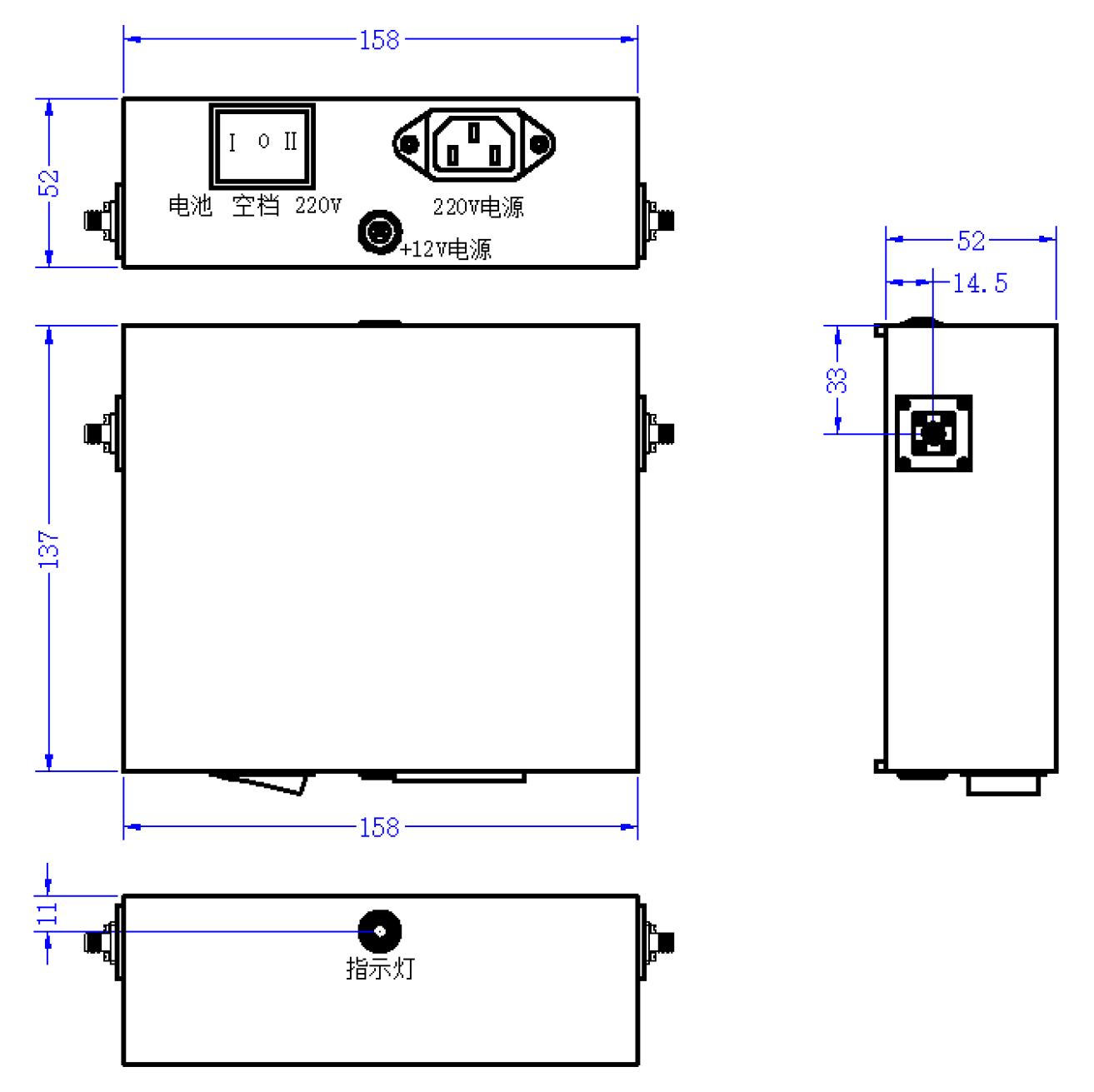

Configuration(mm)
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
