LNA
110~500MHz, Gain30dB, Noise figure3dB, P-1dB10dBm, N, Gain manually adjustable
- DLNA8-110-500-1110
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Gain /uploads/kmw-media/dlna8-110-500-1110/manual/DLNA8-110-500-1110@2025-05-03-21-31-21.pdfly adjustable, powered by coaxial port.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 110 | ~ | 500 | MHz |
| Gain | 30 | dB | ||
| Gain flatness | 3 | dB | ||
| Noise figure | 3 | dB | ||
| VSWR | 1.5 | |||
| spur reduction | 60 | dBc | ||
| P-1dB | 10 | dBm |
Other parameters
| Connector | N -K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +24V |
| Working current | 300mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Gain /uploads/kmw-media/dlna8-110-500-1110/manual/DLNA8-110-500-1110@2025-05-03-21-31-21.pdfly adjustable | 1dB step, /uploads/kmw-media/dlna8-110-500-1110/manual/DLNA8-110-500-1110@2025-05-03-21-31-21.pdf dial switch adjustable range: ≥ 20dB |
| Power input port | Coaxial SMA-F, DC power supply time ≥ 6 hours. |

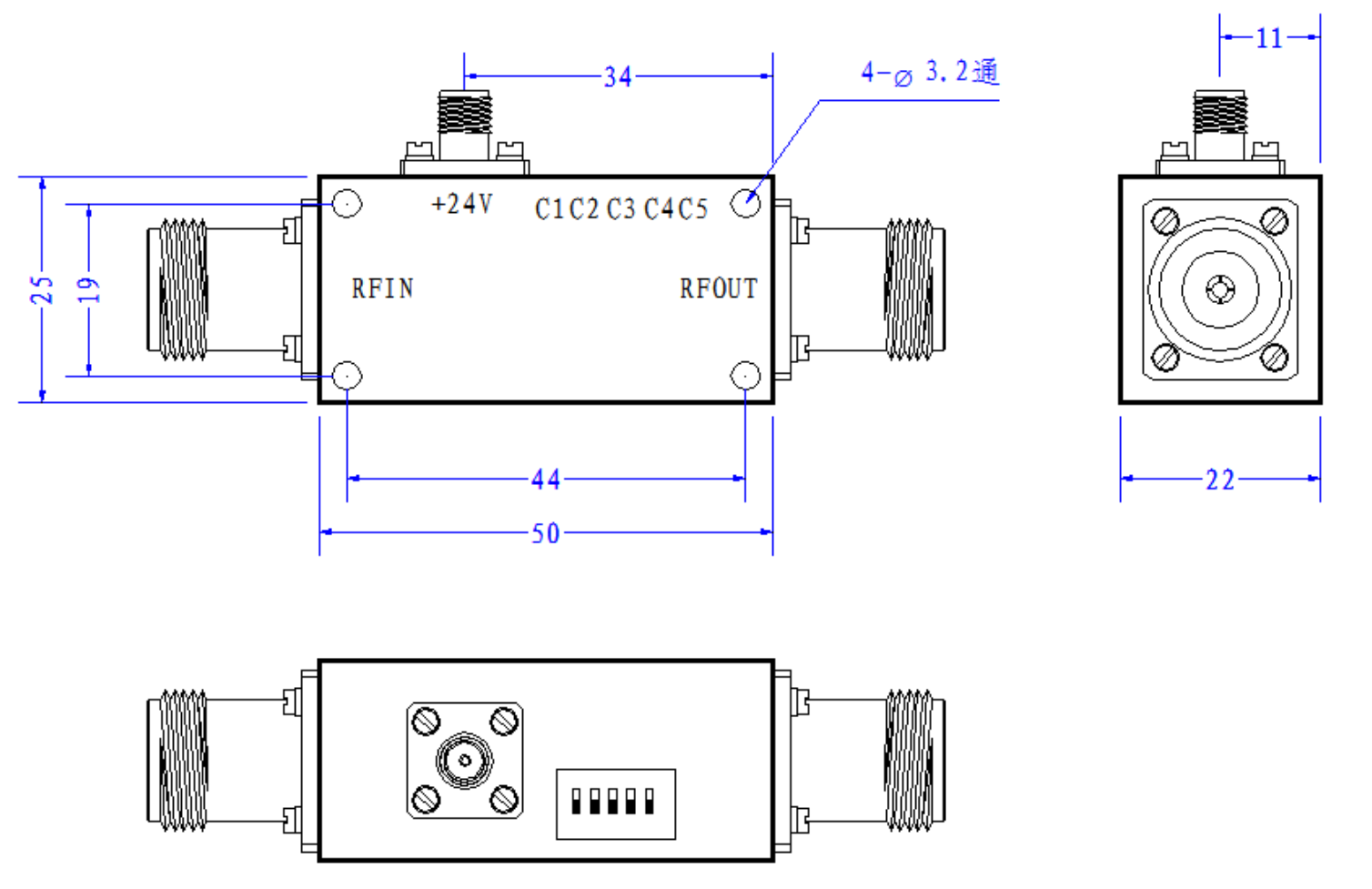

Configuration(mm)
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is connected to the antenna, electrostatic protection or isolation measures should be taken.
