LNA

1000~2000MHz, Gain35dB, Noise figure0.8dB, P-1dB10dBm, SMA

  • DLNA8-1-2G-3872
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

Main specifications

ParametersMinTypicalMaxUnits
Frequency1000~2000MHz
Gain35dB
Gain flatness1.2dB
Noise figure0.8dB
VSWR2
P-1dB10dBm

Other parameters

ConnectorSMA-F
Connector materialStainless steel
Working voltage+15V
Working current150mA
Operation Temp.-40~+60℃ Design assurance

Typical test data

FrequencyS11S22GainP-1PSATNosie
MHzVSWRVSWRdBdBmdBmdB
5001.961.9735.2715.8518.420.73
6431.841.4435.7118.2619.250.18
7861.631.3635.8519.0719.60.31
9291.461.3736.0219.3119.760.4
10711.41.4636.218.919.40.49
12141.31.536.1219.2219.860.54
13571.291.4936.119.1219.940.54
15001.311.4236.0219.0319.940.54
16431.381.3635.9518.9619.970.55
17861.451.2735.8518.7519.80.47
19291.551.2135.6618.7719.770.45
20711.621.2235.4218.6519.80.42
22141.691.2935.0918.6519.560.45
23571.71.4134.7218.7419.730.53
25001.711.634.1919.119.960.64

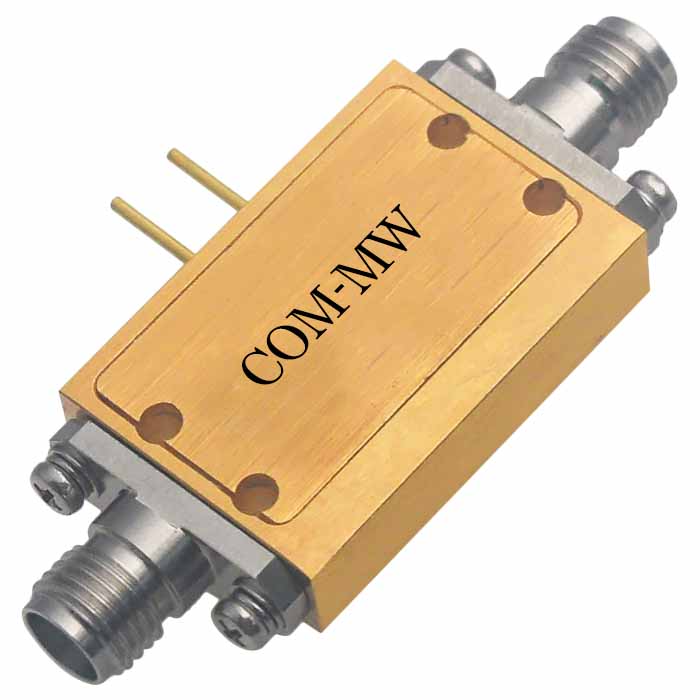

Reference picture

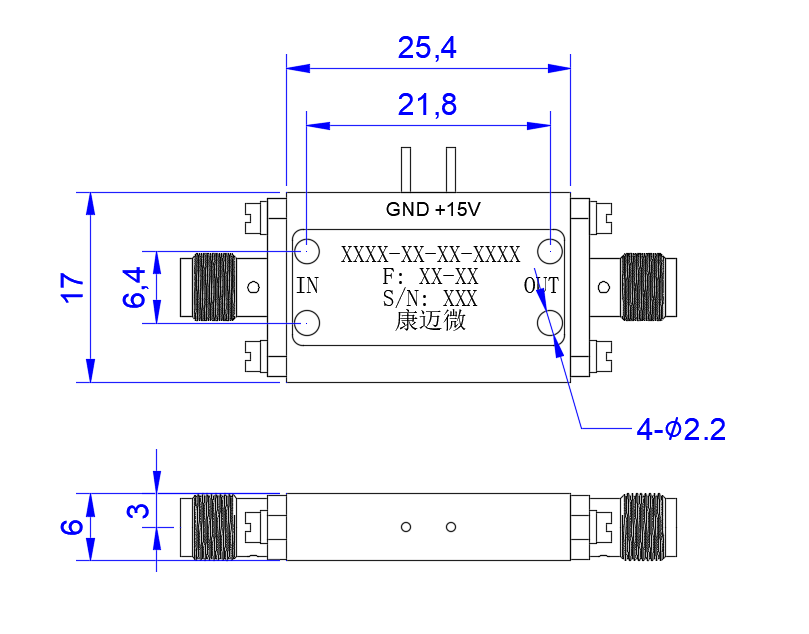

Configuration(mm)

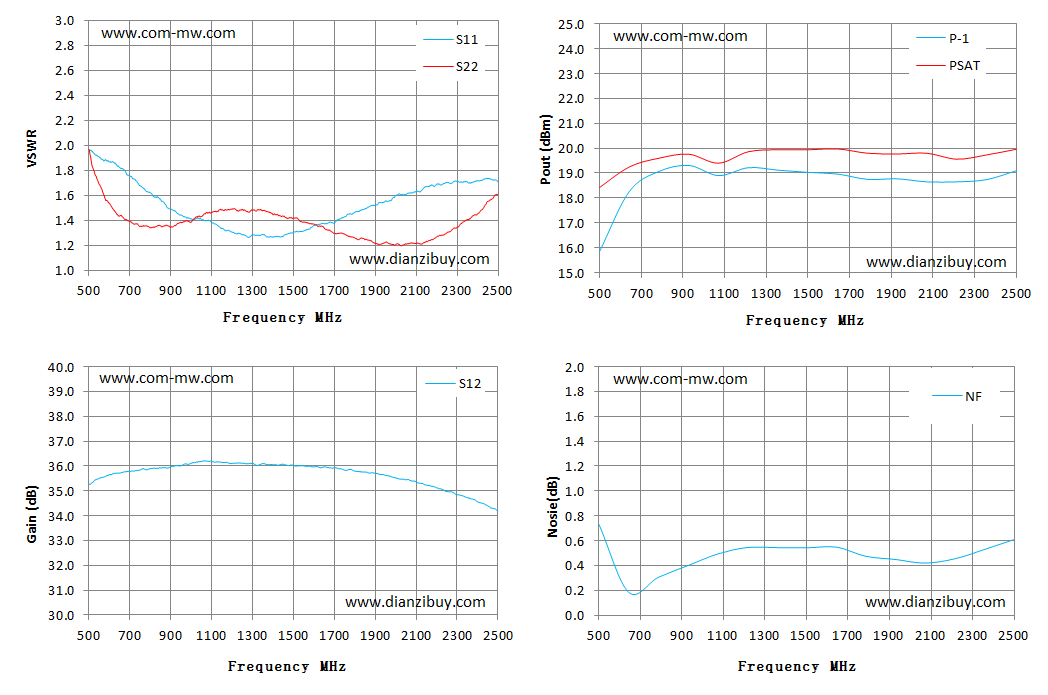

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
