Broadband LNA
14~20GHz, Gain40dB, Noise figure2dB, P-1dB10dBm, N, USB Type-C port charging.
- DCLNA1420-40C-S
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, low noise, with rechargeable batteries.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 14 | ~ | 20 | GHz |
| Gain | 40 | dB | ||
| Gain flatness | ±3 | dB | ||
| Noise figure | 2 | dB | ||
| VSWR | 2.5 | |||
| P-1dB | 10 | dBm |
Other parameters
| Connector | N -JK (Input N-J) |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Grey |
| Working voltage | +5V, USB Type-C port charging. |
| Working current | 500mA |
| Operation Temp. | -10~+50℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | 1. Equipped with power on/off indication, charging indication (including full charge), undervoltage indication, and (normal) working indication; |
| 2. Lithium battery power supply (3 hours); | |
| 3. Configure charger (adapter); | |
| / | |
| 5. Charging environment temperature: 0~+50 ℃; | |
| 6. Charging interface: USB Type-C, with dustproof silicone pad |

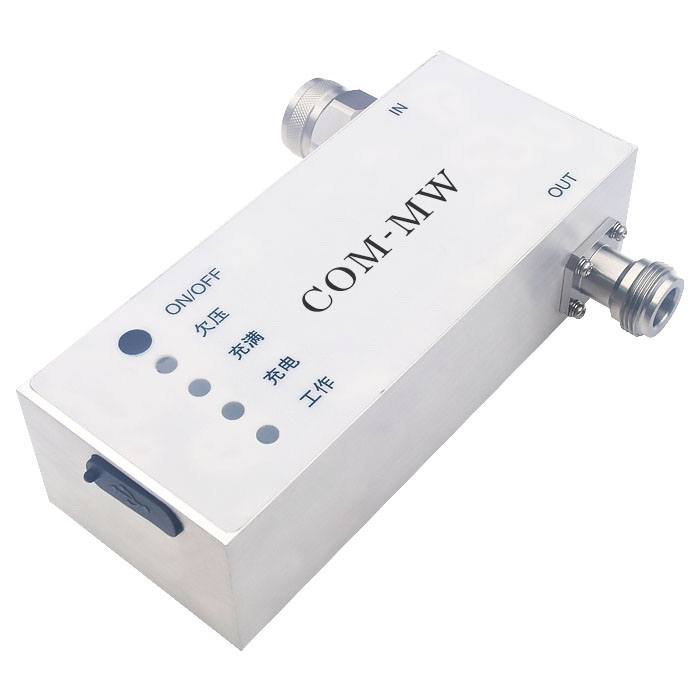

Reference picture

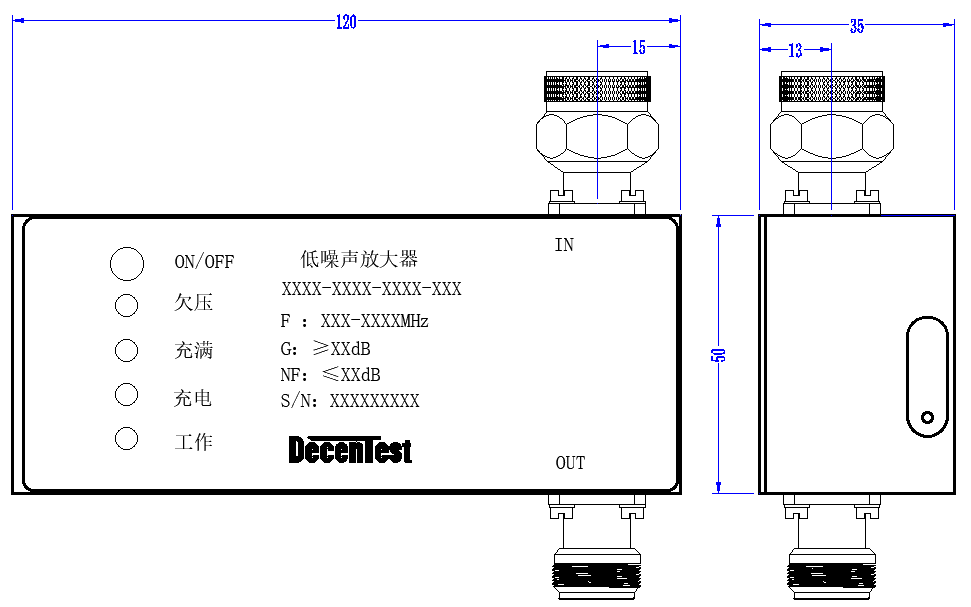

Configuration(mm)
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is connected to the antenna, electrostatic protection or isolation measures should be taken.
