LNA

100~500MHz, Gain30dB, Noise figure2dB, P-1dB5dBm, SMA

  • DLNA8-100-500-2293
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET
S-PARAMETERS
3D Outline Drawing

Product features

Broadband, high gain.

Main specifications

ParametersMinTypicalMaxUnits
Frequency100~500MHz
Gain30dB
Gain flatness±2dB
Noise figure2dB
VSWR1.5
P-1dB5dBm

Other parameters

ConnectorSMA-K
Connector materialStainless steel
Impedance50Ω
SurfaceWhite
Working voltage+12V
Working current200mA
Operation Temp.-50~+70℃ Design assurance
Storage Temp.-55~+85℃ Design assurance
OtherHigh and low temperature gain variation ≤ ± 2dB

Typical test data

Frequency(MHz)S11 VSWRS22 VSWRS21 gainS21 NoiseS21 P-1dB
601.591.434.981.4117.1
991.381.3434.690.6417
1371.321.3334.60.7617.3
1761.291.334.630.4717.3
2141.291.2934.660.4117.35
2531.31.2734.740.4417.35
2911.311.2534.750.4317.35
3301.321.2234.770.4117.4
3691.331.2134.710.4217.4
4071.351.234.690.3917.2
4461.371.1834.60.417.35
4841.381.1734.490.3917.4
5231.411.1534.350.4417.3
5611.421.1534.240.4517.3
6001.421.1434.120.4517.2

Reference picture

Configuration(mm)

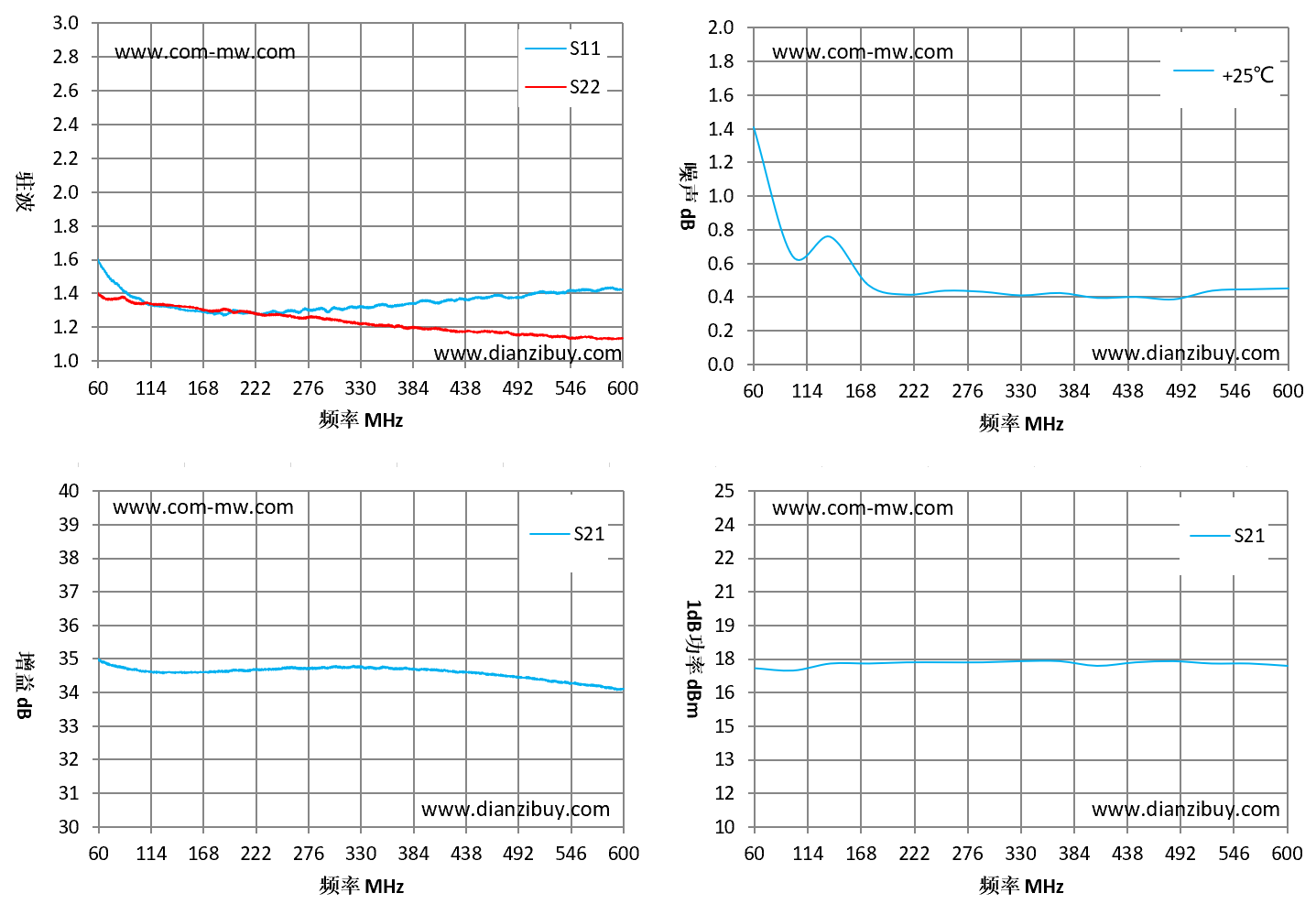

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
