LNA
0.009~6000MHz, Gain40dB, Noise figure3.5dB, P-1dB8dBm, SMA
- ZLNA-9K-6G-01
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.009 | ~ | 6000 | MHz |
| Gain | 40 | dB | ||
| Gain flatness | 4 | dB | ||
| Noise figure | 3.5 | 3.8 | dB | |
| VSWR | 2.2 | |||
| P-1dB | 8 | dBm |
Other parameters
| Connector | SMA-K |
| Impedance | 50Ω |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -30~+70℃ Design assurance |
Typical test data
| F(MHz) | P-1(dBm) | NF(dB） | S11VSWR | S22VSWR | Gain(dB) |
| 10 | 10.66 | 2.25 | 1.91 | 1.26 | 45.2 |
| 800 | 12.4 | 2.36 | 1.29 | 1.44 | 46.3 |
| 1600 | 12.2 | 2.39 | 1.31 | 1.58 | 46.3 |
| 2400 | 12.1 | 2.86 | 1.16 | 1.33 | 46.5 |
| 3200 | 12.3 | 2.77 | 1.48 | 1.35 | 46.4 |
| 4000 | 11.7 | 2.95 | 1.79 | 1.47 | 45.7 |
| 4800 | 10.5 | 3.12 | 1.8 | 1.45 | 45.8 |
| 5600 | 9.6 | 3.36 | 1.89 | 1.21 | 45.6 |
| 6400 | 9.4 | 3.47 | 2.06 | 2.3 | 45.5 |
| 7200 | 8.9 | 3.9 | 1.46 | 1.69 | 42.7 |
| 8000 | 6.8 | 4.44 | 4.52 | 3.09 | 36.7 |

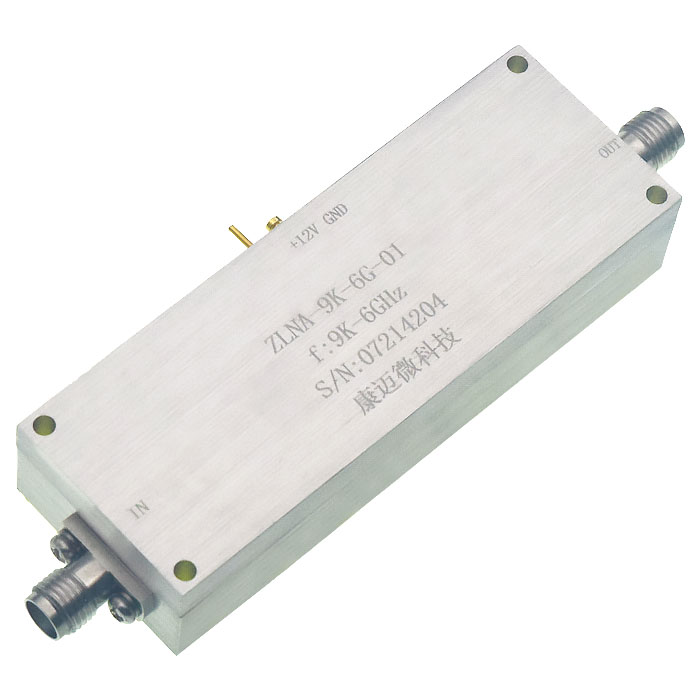

Reference picture

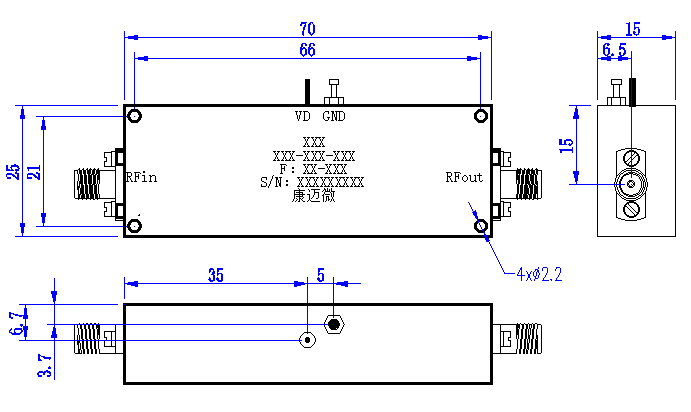

Configuration(mm)

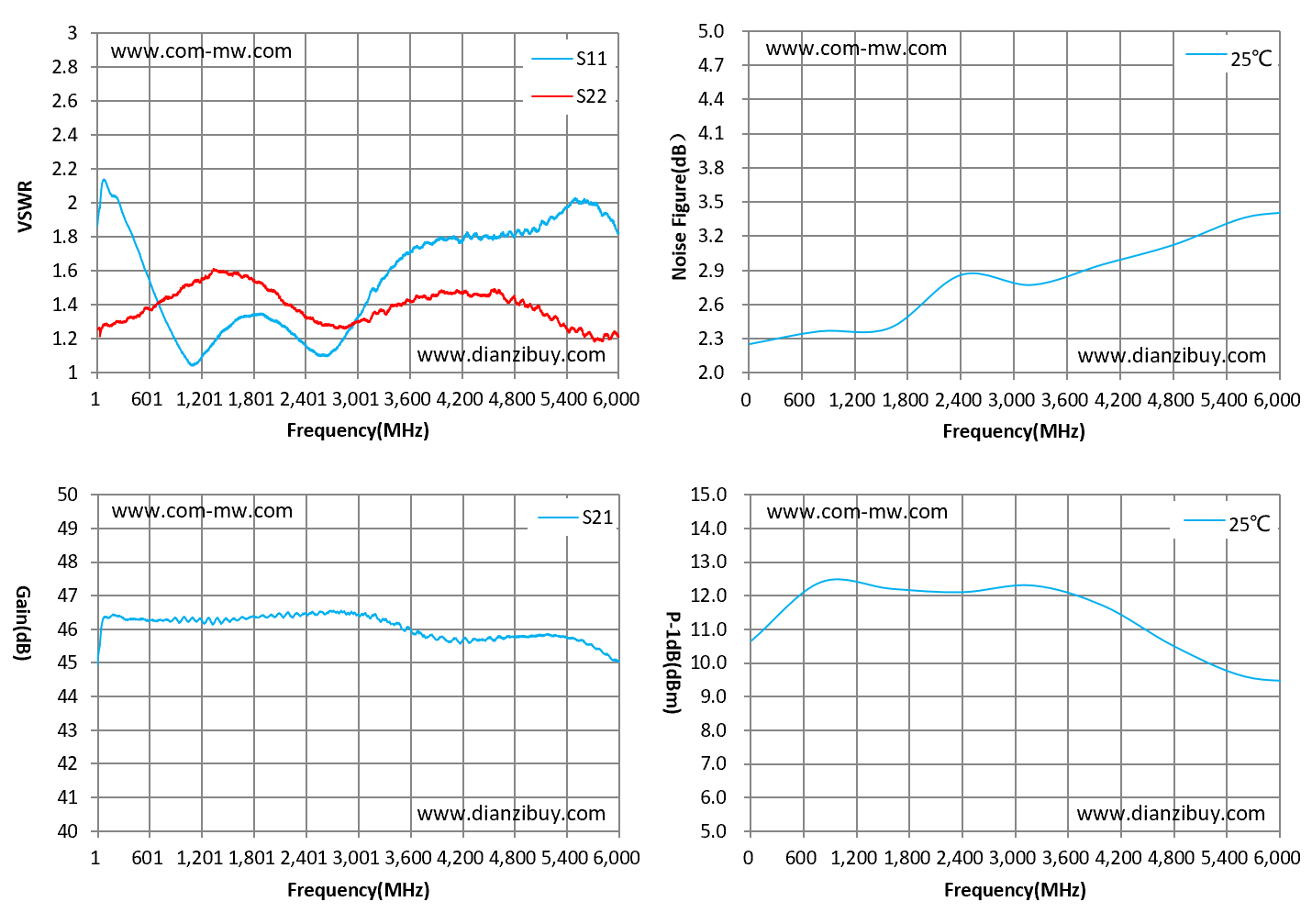

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
