LNA
5~450MHz, Gain20dB, SMA
- DLNA8-5-450-3835
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 5 | ~ | 450 | MHz |
| Gain | 20 | dB | ||
| Gain flatness | ±1 | ±2 | dB | |
| Noise figure | 3.5 | dB | ||
| VSWR | 2.2 | |||
| P-1dB | 30 | dBm | ||
| Spur reduction | 55 | dBc |
Other parameters
| Connector | SMA-F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 500mA |
| Operation Temp. | -30~+60℃ Design assurance |
| Quality Grade | Industrial grade |

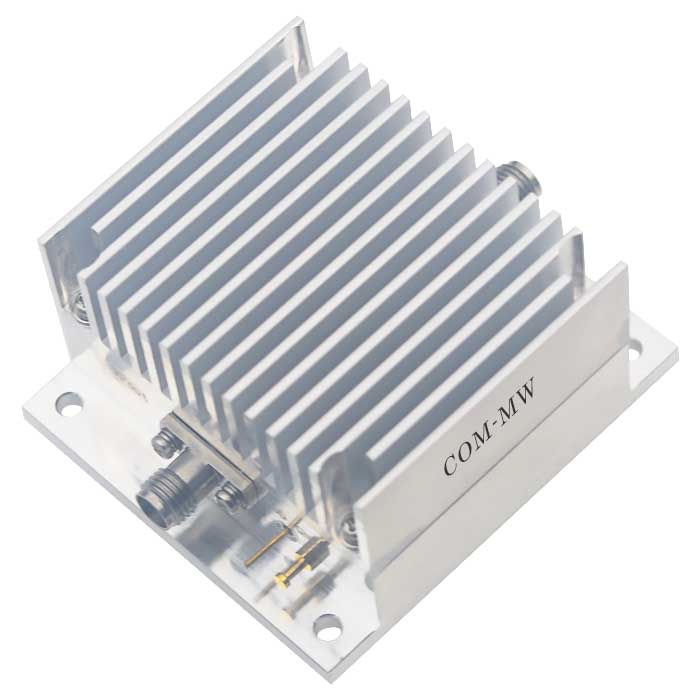

Reference picture

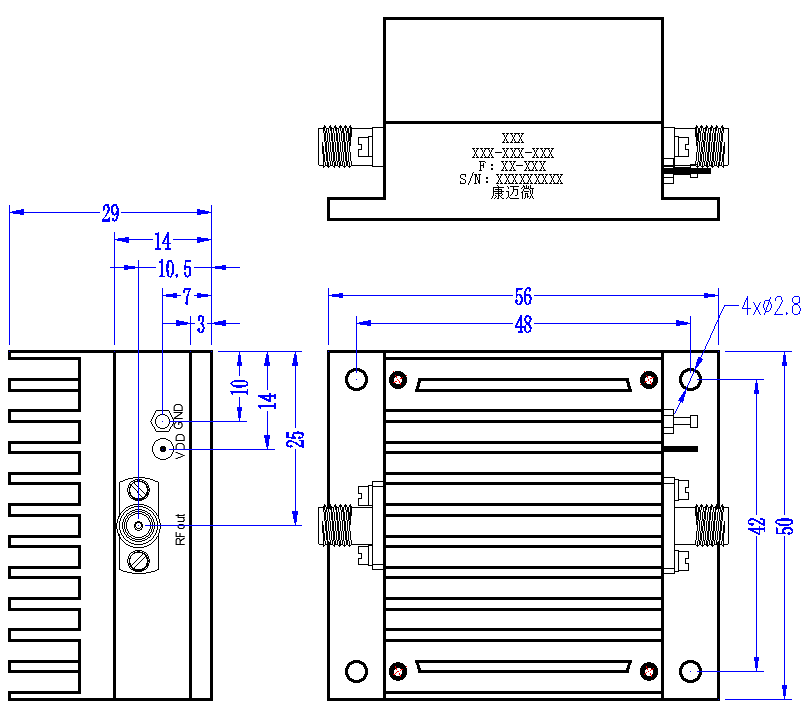

Configuration
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
