Power amplifier
2000~2700MHz, Gain12dBm, P-1dB30dBm, N
- DPA8-2000-2700-3639
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 2000 | ~ | 2700 | MHz |
| Gain | 12 | dBm | ||
| P-1dB | 30 | 32 | dBm | |
| Gain flatness | ±1 | dB | ||
| Input VSWR | 2 | |||
| Output VSWR | 2.5 | |||
| Max input power | 27 | dBm | ||
| OIP3 | 36 | dBm |
Other parameters
| Connector | N -JK |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +9-28V |
| power waste | 15W |
| Operation Temp. | -40~+60℃ Design assurance |
| Other | LEMO dual core power supply |
Definition of indicator lights
| state | definition | Note |
| Green light | Power supply and output power are normal | / |
| Red light | Abnormal power supply/output | / |
Typical test data
| Frequency | S11 | S22 | GAIN | P-1 | PSAT |
| GHz | VSWR | VSWR | dB | dBm | dBm |
| 1000 | 1.35 | 9.6 | -33 | -9 | -8.2 |
| 1143 | 1.3 | 7.84 | -23.48 | 1.5 | 2.02 |
| 1286 | 1.28 | 5.76 | -14.02 | 10.78 | 11.5 |
| 1429 | 1.24 | 3.65 | -5.48 | 20.04 | 20.5 |
| 1571 | 1.23 | 1.96 | 2.23 | 25.8 | 26.3 |
| 1714 | 1.2 | 1.17 | 8.76 | 27.9 | 28.98 |
| 1857 | 1.16 | 1.53 | 13.27 | 29.3 | 30.5 |
| 2000 | 1.11 | 1.86 | 15.24 | 30 | 30.9 |
| 2143 | 1.11 | 1.91 | 15.19 | 30.11 | 31 |
| 2286 | 1.12 | 1.73 | 14.56 | 30.09 | 30.83 |
| 2429 | 1.14 | 1.54 | 14.35 | 30.01 | 30.7 |
| 2571 | 1.16 | 1.48 | 14.15 | 30.27 | 30.77 |
| 2714 | 1.18 | 1.51 | 14.08 | 30.51 | 30.82 |
| 2857 | 1.18 | 1.58 | 14 | 30.92 | 31.07 |
| 3000 | 1.18 | 1.68 | 13.82 | 30.7 | 31.2 |
Reference picture

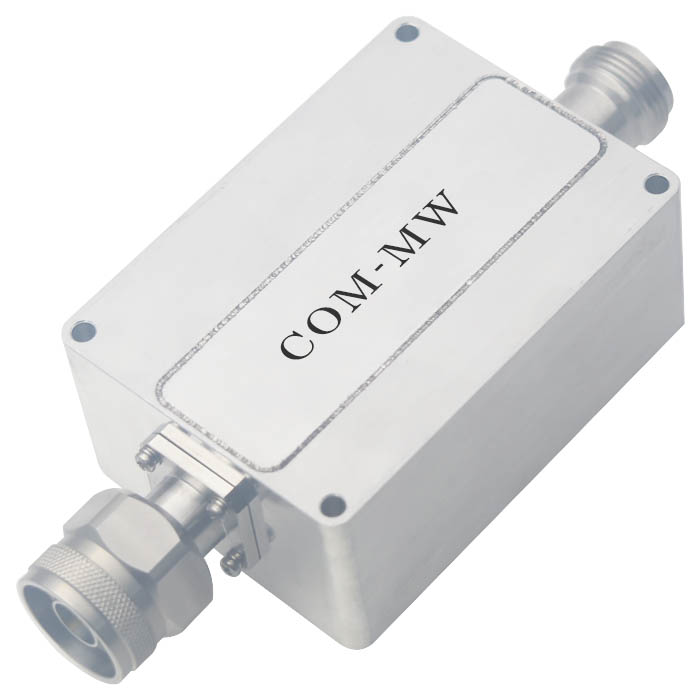

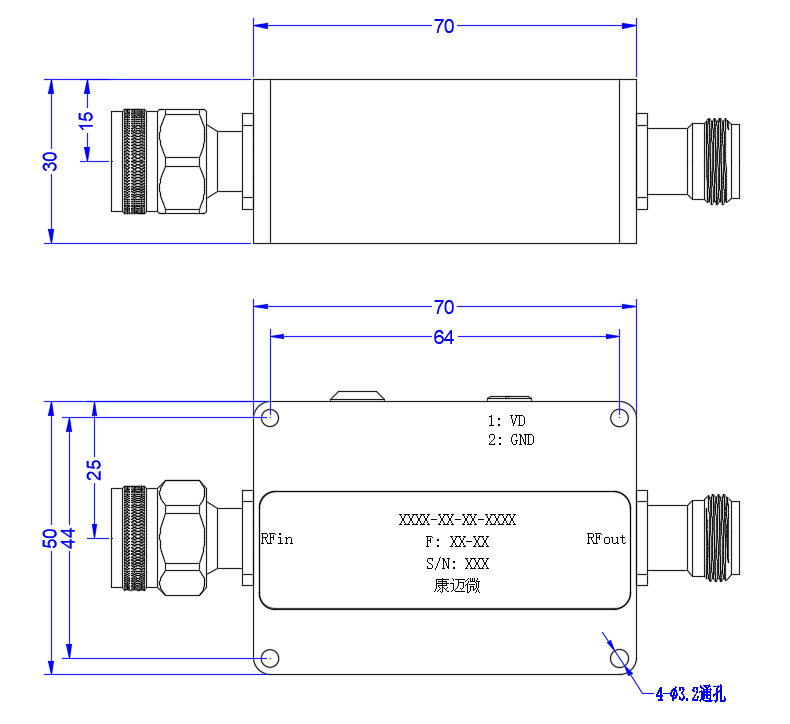

Configuration

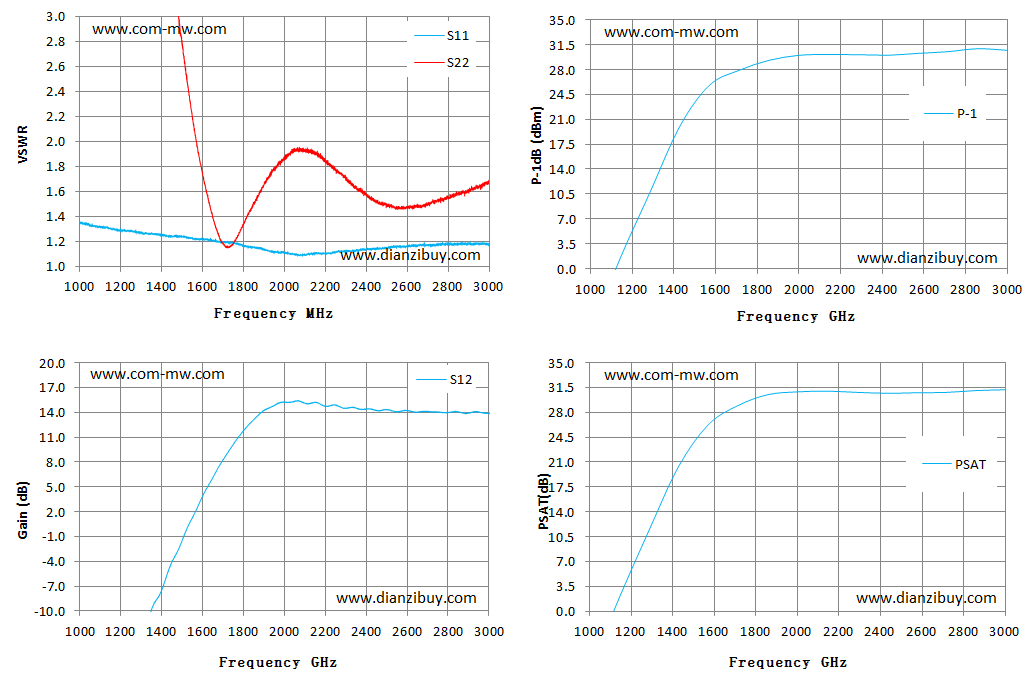

Typical test curve
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
