Power amplifier
9.8~18.2GHz, Gain38dB, Psat26dBm, SMA
- DPA8-9.8-18.2G-3605
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 9.8 | ~ | 18.2 | GHz |
| Gain | 38 | dB | ||
| Gain flatness | ±0.75 | dB | ||
| Noise figure | 2.5 | dB | ||
| VSWR | 2.2 | |||
| P-1dB | 25 | dBm | ||
| Psat | 26 | dBm | ||
| Max input power | 10 | dBm | ||
| Spur reduction | 55 | dBc | ||
| Harmonic Rejection | 13 | dBc | ||
| OIP3 | 30 | dBm | ||
| 反相隔离 | 60 | dBc |
Other parameters
| Connector | SMA-F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 400mA |
| Operation Temp. | -30~+60℃ Design assurance |
| Quality Grade | Industrial grade |

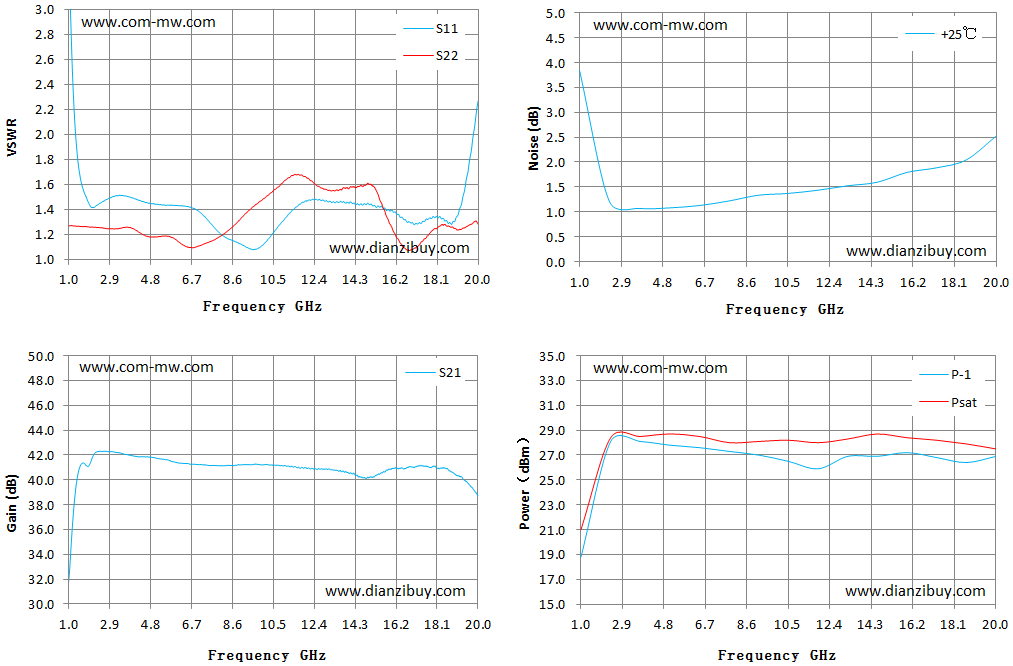

Typical test data
| Frequency GHz | S11 SWR | S22 SWR | GaindB | NFdB | P-1 OUT dBm | Psat dBm |
| 1 | 3.27 | 1.27 | 31.78 | 3.85 | 18.8 | 21 |
| 2.36 | 1.44 | 1.26 | 42.29 | 1.21 | 28.1 | 28.4 |
| 3.71 | 1.51 | 1.26 | 42.04 | 1.07 | 28.1 | 28.5 |
| 5.07 | 1.44 | 1.18 | 41.75 | 1.08 | 27.8 | 28.7 |
| 6.43 | 1.43 | 1.11 | 41.33 | 1.13 | 27.6 | 28.5 |
| 7.79 | 1.25 | 1.16 | 41.16 | 1.22 | 27.3 | 28 |
| 9.14 | 1.11 | 1.36 | 41.23 | 1.34 | 27 | 28.1 |
| 10.5 | 1.22 | 1.56 | 41.2 | 1.37 | 26.5 | 28.2 |
| 11.86 | 1.46 | 1.67 | 40.99 | 1.44 | 25.9 | 28 |
| 13.21 | 1.46 | 1.55 | 40.82 | 1.52 | 26.9 | 28.3 |
| 14.57 | 1.45 | 1.6 | 40.21 | 1.6 | 26.9 | 28.7 |
| 15.93 | 1.39 | 1.28 | 40.85 | 1.8 | 27.2 | 28.4 |
| 17.29 | 1.3 | 1.12 | 41.15 | 1.89 | 26.8 | 28.2 |
| 18.64 | 1.29 | 1.27 | 40.8 | 2.05 | 26.4 | 27.9 |
| 20 | 2.27 | 1.29 | 38.73 | 2.53 | 26.9 | 27.5 |

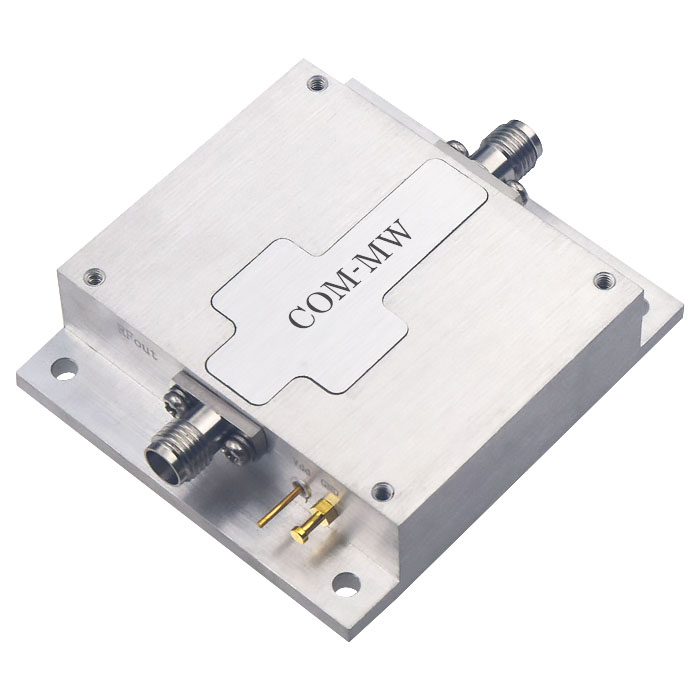

Reference picture

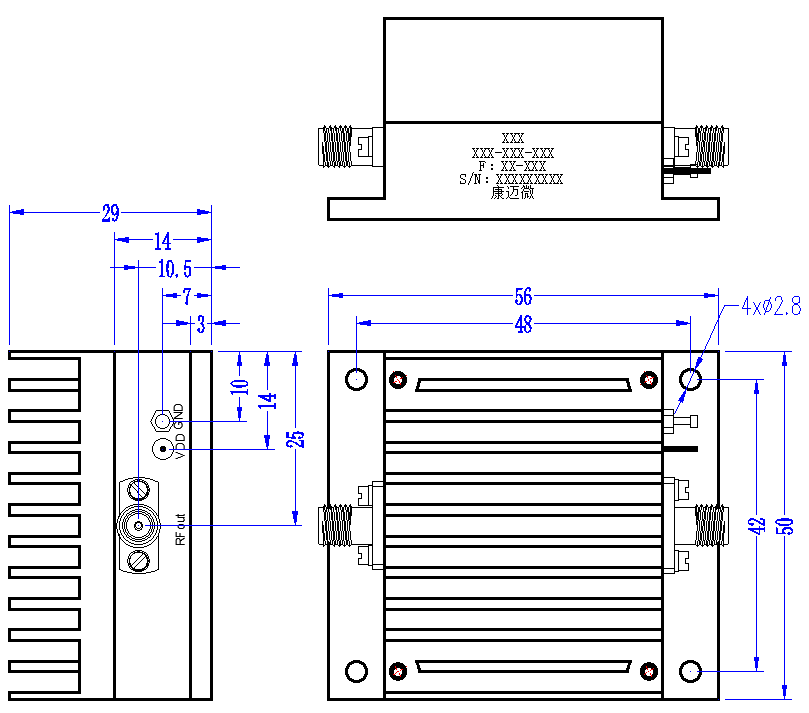

Configuration
Note
