LNA
1.2~1.6GHz, Gain50dB, Noise figure0.9dB, P-1dB0dBm, SMA, Work status inspection
- DLNA8-1.2-1.6G-1143
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Low noise, with working state detection.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1.2 | ~ | 1.6 | GHz |
| Gain | 50 | dB | ||
| Gain flatness | ±0.5 | dB | ||
| Noise figure | 0.9 | dB | ||
| VSWR | 1.5 | |||
| P-1dB | 0 | dBm |
Other parameters
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -45~+60℃ Design assurance |
| Storage Temp. | -55~+70℃ Design assurance |
| Work status inspection | TTL |
| Other | Maximum input power+10dBm; Power detection: Normal current output high level 3-5 V, abnormal current output low level 0-0.2 V. |

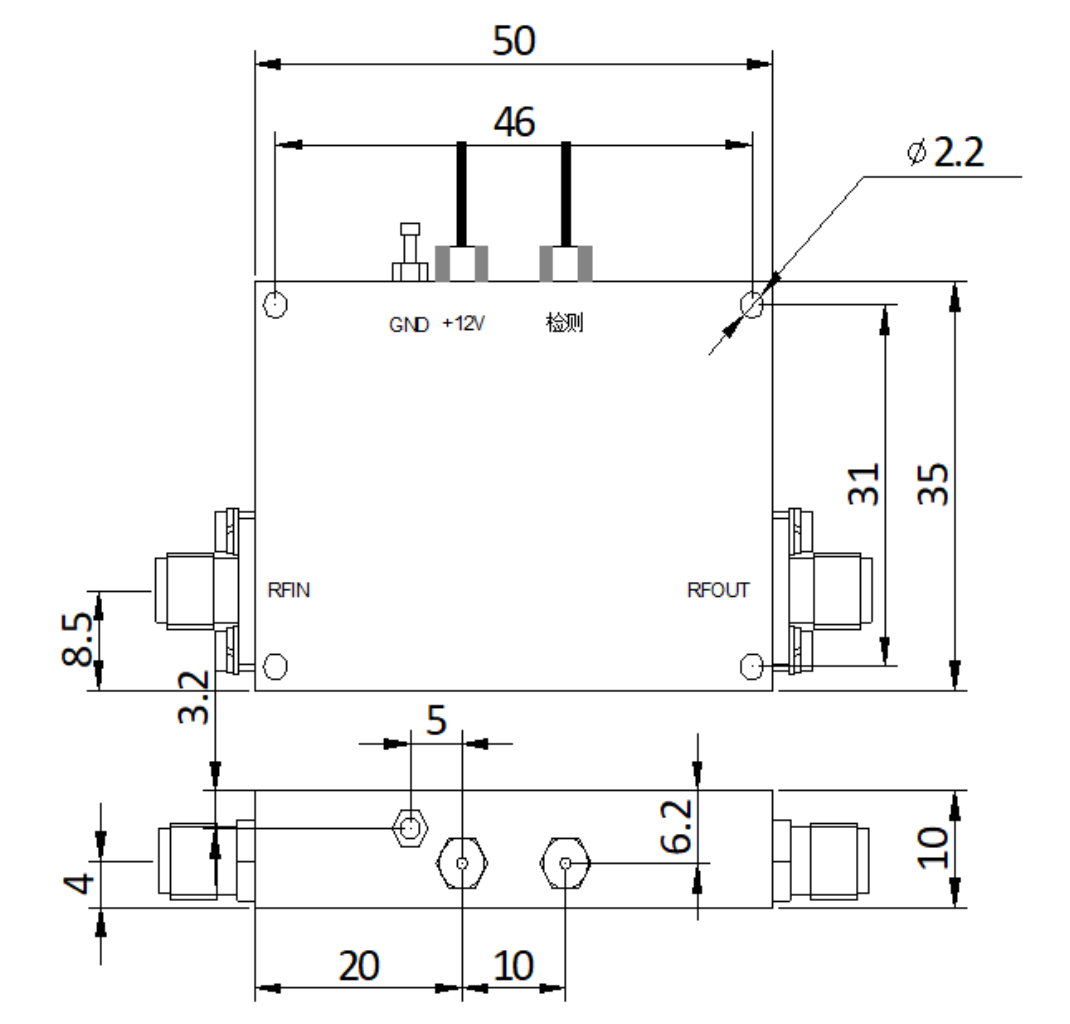

Configuration(mm)
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is connected to the antenna, electrostatic protection or isolation measures should be taken.
