LNA

1~30GHz, Gain13dB, P-1dB17dBm, 2.92

Model:DLNA8-1-30G-2876
Made In:China
Warranty:One Year
Tel:+86-19938031308
Email:sales@com-mw.com, cynthia@com-mw.com
Address:3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
Reminder:For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
No restrictions on export to any country
RoHS: no(Customization Needed for ROHS Compliance)
The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

3D Outline Drawing

Product features

Broadband, low noise.

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	1	~	30	GHz
Gain		13		dB
Gain flatness		±2.5	±3	dB
Noise figure		8		dB
VSWR			2
P-1dB		17		dBm
Spur reduction		65		dBc
Harmonic Rejection		25		dBc
OIP3		25		dBm
Reverse isolation		25		dBc

Other parameters

Connector	2.92-F detachable, Pin 0.38mm
Connector material	Stainless steel
Impedance	50Ω
Surface	Gold-plating
Working voltage	+12V
Working current	300mA
Operation Temp.	-30~+70℃ Design assurance

Typical test data

Frequency	S11	S22	GAIN	P-1	PSAT	Nosie
GHz	VSWR	VSWR	dB	dBm	dBm	dBm
1	1.49	1.11	18.19	24.7	27.7	5.31
3.07	1.51	1.11	17.73	25.3	27.9	4.57
5.14	1.59	1.14	16.87	25.8	27	3.02
7.21	1.28	1.18	17.08	25.5	26.8	2.17
9.29	1.3	1.24	16.98	24.4	26.2	2.65
11.36	1.82	1.39	16.34	24.5	26.2	2.84
13.43	1.38	1.11	16.7	24.8	26.2	2.96
15.5	1.32	1.15	16.26	24.3	25.6	3.26
17.57	1.5	1.43	16.18	24.2	25.6	3.26
19.64	1.21	1.33	16.24	22.9	25.2	4.43
21.71	1.42	1.18	16.04	21.8	25.1	4.87
23.79	1.72	1.33	15.58	21.5	24.6	5.81
25.86	1.2	1.53	15.14	20.5	23.4	6.73
27.93	1.62	1.7	14.03	18.6	22.3	8.16
30	1.29	1.27	12.64	16.3	21.1	9.39

Reference picture

Configuration(mm)

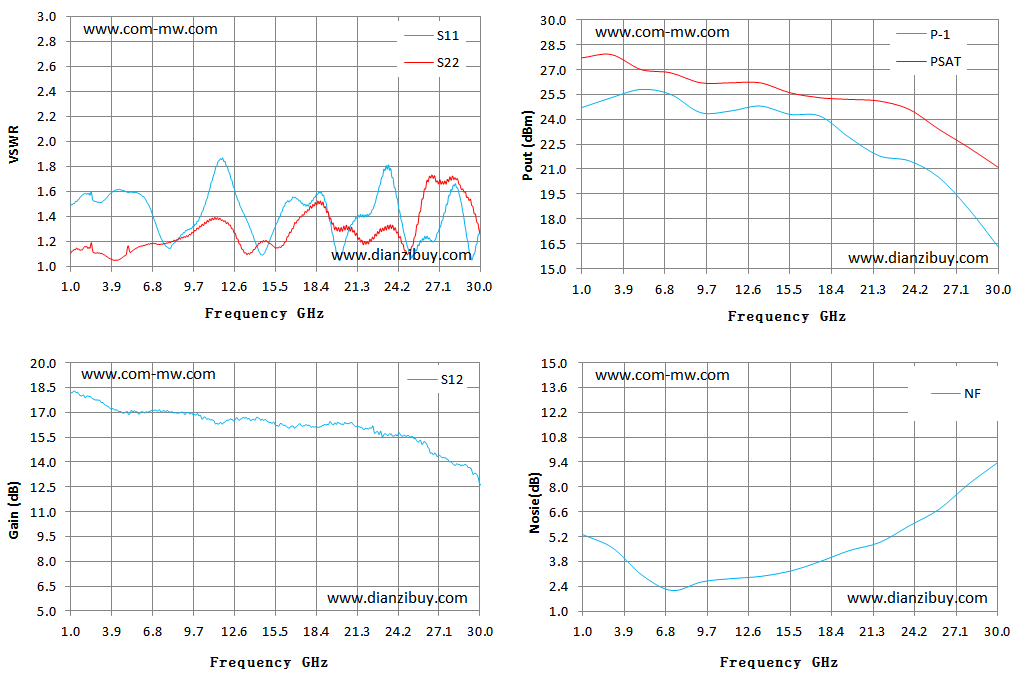

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
