Gain control module
26~40GHz, Power-30dBm, P-1dB Output5dBm, 2.92
- DAGC8-26-40G-02
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units | Units |
| Frequency | 26 | ~ | 40 | GHz | |
| Power | -30 | ~ | 25 | dBm | |
| Output power | 0 | dB | |||
| Gain flatness | ±0.5 | dB | @500MHz | ||
| Output power stability | ±0.5 | dB | |||
| P-1dB Output | 5 | dBm | |||
| Detection accuracy | 1 | dB |
Other parameters
| Connector | 2.92-K |
| Impedance | 50Ω |
| Working voltage | +12V |
| Working current | 1000mA |
| Operation Temp. | -0~+30℃ Design assurance |
| 脉冲体制 | 单载频脉冲波形:脉冲宽度:0.3us~2s；重复频率:0.1kHz~1kHz。 |
| 线性调频波形:脉冲宽度:1us~1000us； 瞬时带宽:1MHz~500MHz；重复频率:50Hz~1kHz | |
| 连续波体制 | Continuous wave |
| 三角调频连续波，带宽 500MHz； | |
| 相位编码波形，码元宽度 0.02s | |
| RF signal description | 频率范围实际上包含了射频信号的带宽，比如信号带宽为 500MHz 时，在 18~26GHz 频段内，载频最小为 18.25GHz，最大为 25.75GHz |
| Phase linearity | 线性调频信号脉冲宽度内，相位线性度≤±1º（依技术难度可适当放宽） |
| Other | The light on indicates normal operation |
| 输出功率稳定度只需在单次控制模式下严格满足指标要求 | |
| 检波精度可依据实际器件水平等因素适当放宽。 |
Port Definition
| 端口号 | Name | Socket model | Illustrate |
| X1 | Input RF | 2.92-K | RF signal |
| X2 | Output RF signal | 2.92-K | 输出与 X1 同频段的恒定功率信号 |
| X3 | Power supply and control signals | J30J-9ZKP | 直流电源输入、信号波形参数（频率、 脉宽、重频等）输入和功率数值输出 |

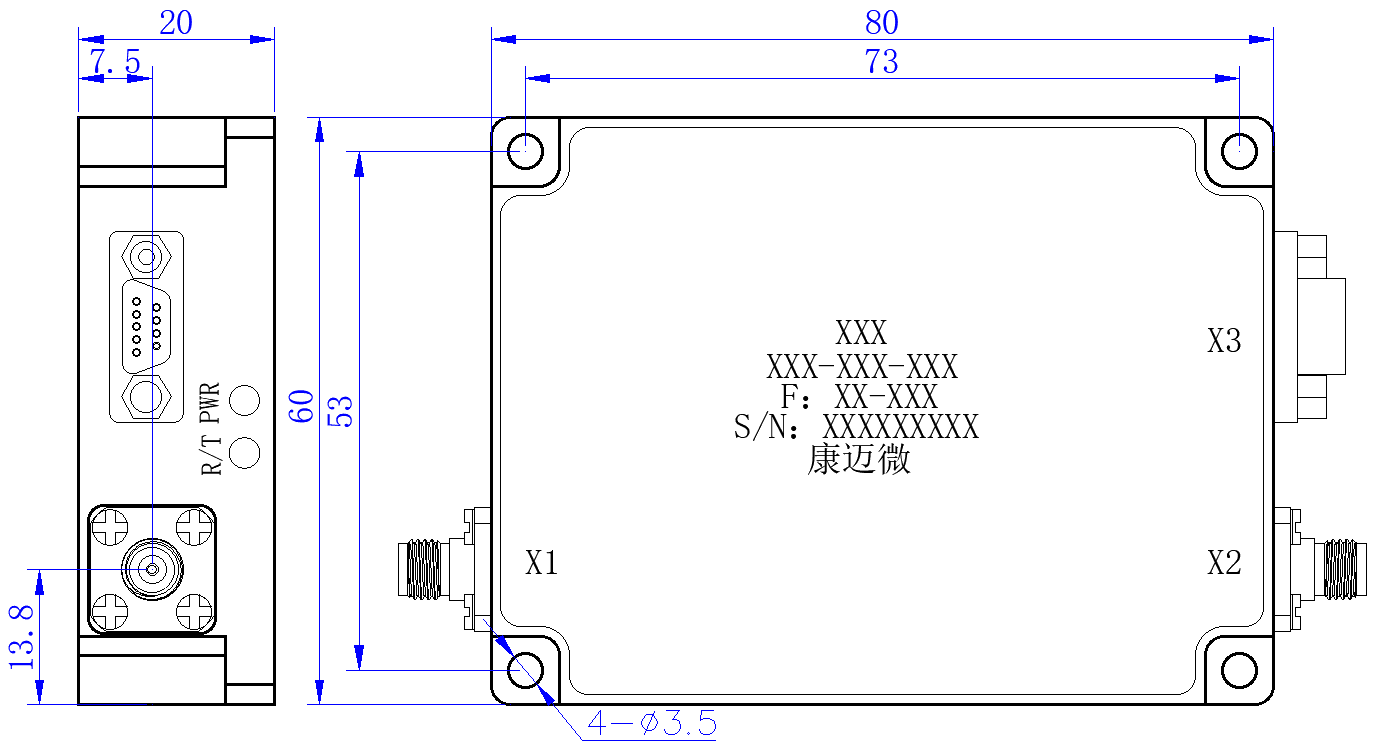

Configuration(mm)
J30J-ZKP pin definition (communication interface is RS485, baud rate 9600, 8bit, no checksum, message format MODBUS RTU)
| 端子号 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| 电路特性 | 485_A | 485_B | +12V | Ground | Reserve | Reserve | Reserve | Reserve | Reserve |
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
