LNA

22~24GHz, Gain20dB, Noise figure1.8dB, P-1dB10dBm, 2.92

  • DLNA8-22-24G-3609
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET
3D Outline Drawing

Main specifications

ParametersMinTypicalMaxUnits
Frequency22~24GHz
Gain20dB
Amplitude frequency characteristic1dB（p-p）
Gain slope 1±0.1dB/10MHz
Gain slope 2±0.2dB/40MHz
Noise figure1.8dB
VSWR2
P-1dB10dBm
Max input power10dBm

Other parameters

Connector2.92-F&waveguide port
Connector materialStainless steel
Waveguide portBJ260
Impedance50Ω
Working voltage+9-15V
Working current250mA
Operation Temp.-40~+65℃ Design assurance
OtherPower supply connector SF812/P-2; Protection level IP65

Typical test data

FrequencyS11S22GAINP-1PSATNoise
GHzVSWRVSWRdBdBmdBmdB
211.281.2621.5811.2212.971.35
21.291.341.2621.6311.1313.281.42
21.571.371.2321.7711.3313.31.21
21.861.371.221.9211.1713.291.54
22.141.311.1821.9911.2113.611.58
22.431.231.222.0211.3213.621.63
22.711.161.212211.3113.821.57
231.151.2521.9811.6314.111.54
23.291.241.2521.9511.6914.861.61
23.571.371.2621.9111.7615.011.63
23.861.471.3121.8211.9914.161.62
24.141.521.3521.7212.2413.961.69
24.431.551.4621.6611.9313.921.75
24.711.561.5521.6211.93141.61
251.571.6621.5811.6914.141.58

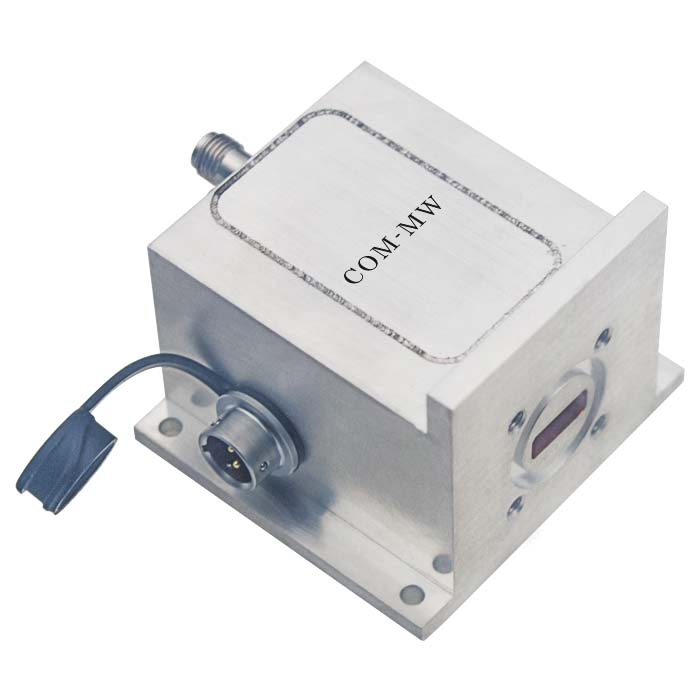

Reference picture

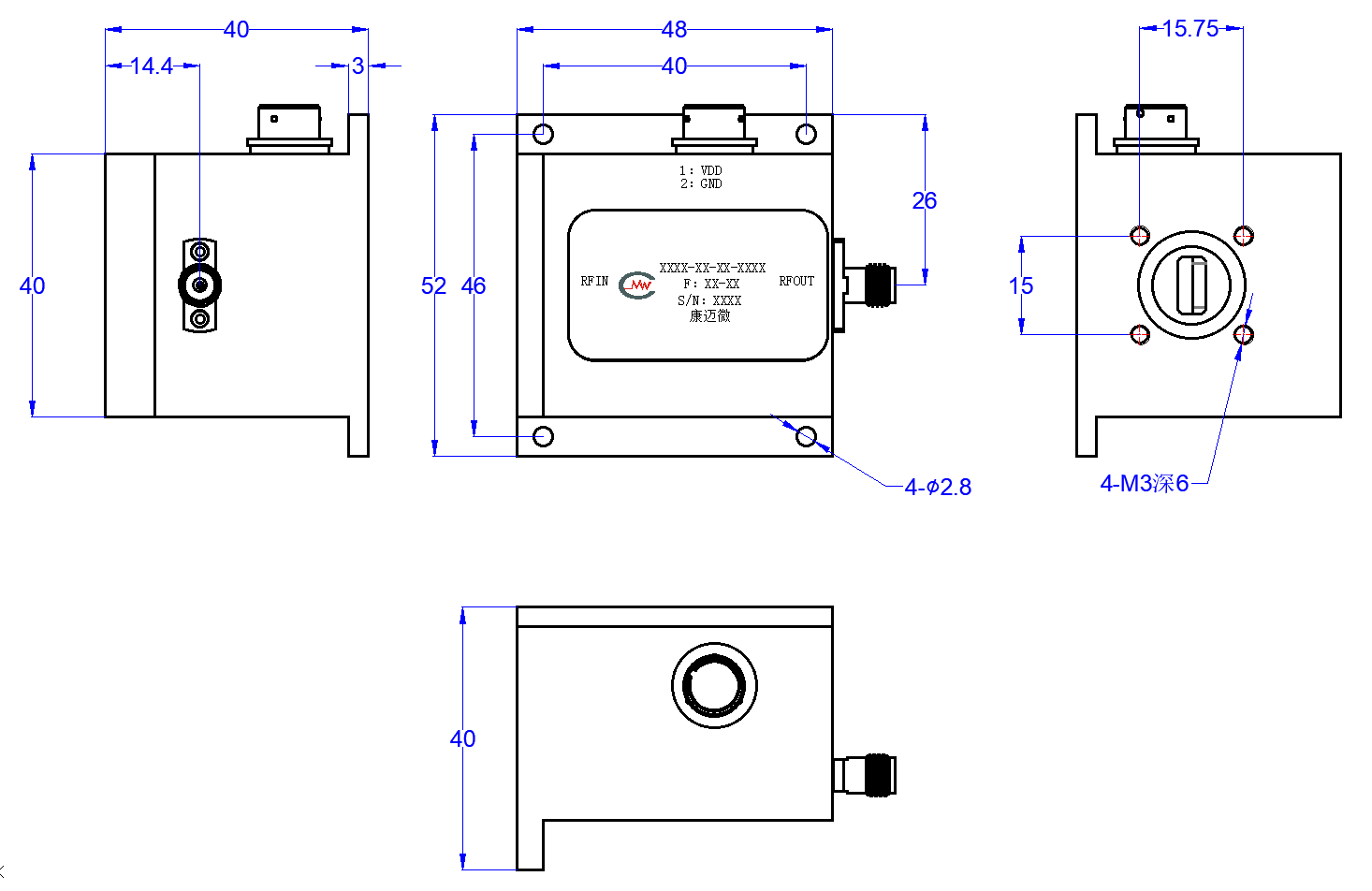

Configuration(mm)

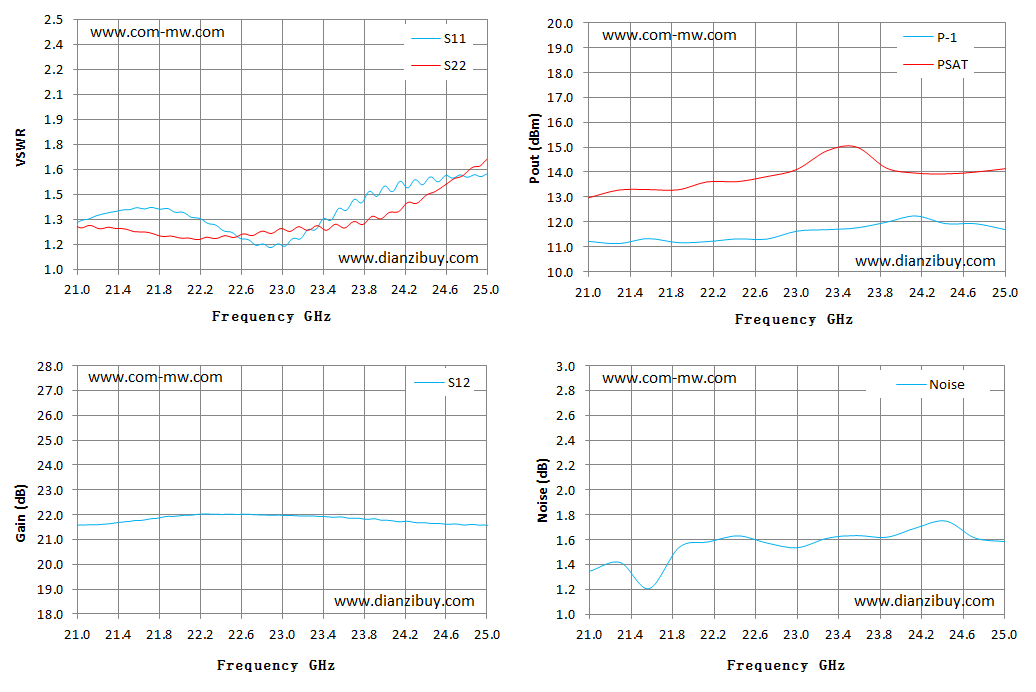

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
