LNA
Frequency2~18GHz, Gain35, 1.8, Adapter power supply
- DLNA8-2-18G-9355
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 2 | ~ | 18 | GHz |
| Gain | 35 | dB | ||
| Gain flatness | ±2 | dB | ||
| Input VSWR | 1.8 | |||
| P-1dB | 38 | dBm | ||
| PO（sat） | 40 | dBm |
Product Application
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Black baking paint |
| Operation Temp. | -20~+40℃ Design assurance |
| Characteristic | Adapter power supply |
Port Definition
| Port identification | definition | Illustrate |
| DC | DC power input | 根据内配模块选择对应适配器，插孔5.5*2.1，兼容5.5*2.5 |
| GND | GND | |
| ON/OFF | Power switch | 开通后灯亮，内部模块上电 |
| EN | Enable control switch | 开通后灯亮，内部模块使能控制开通 |
上电顺序
Parts list
| 1 | Standard configuration | Equipped with a power adapter |

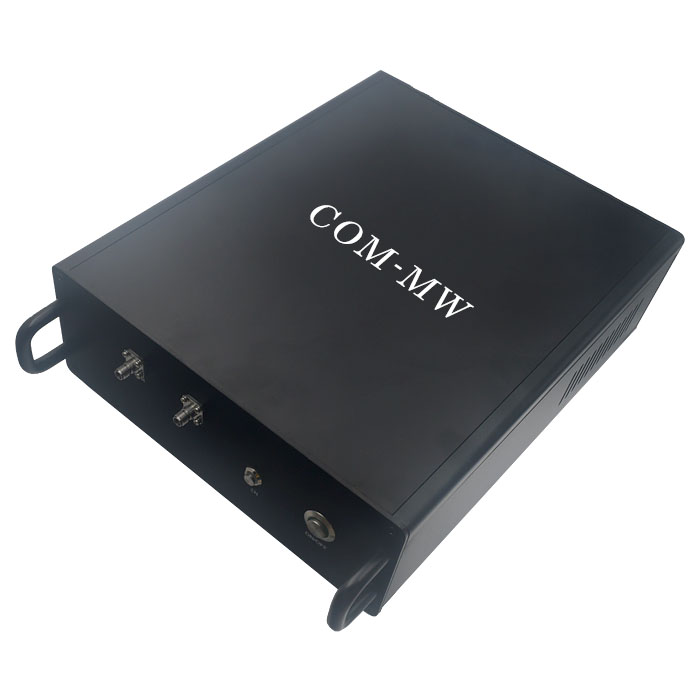

Reference picture

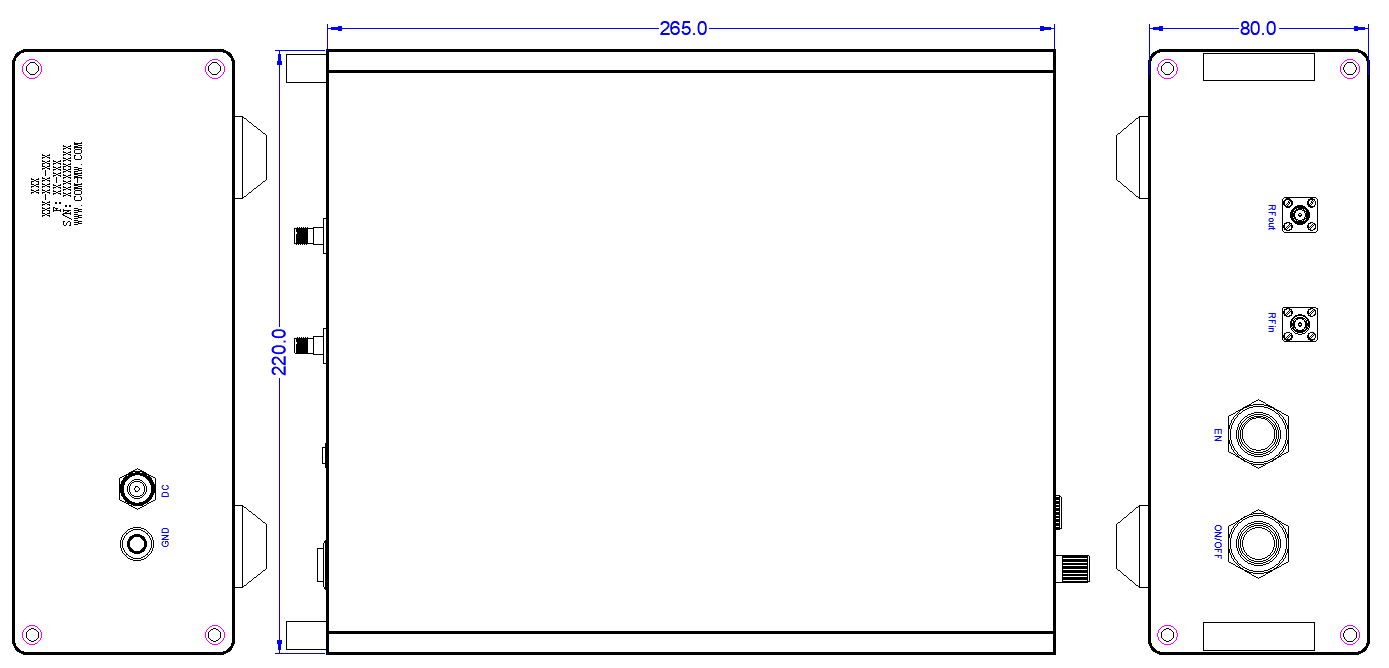

Configuration(mm)
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | 请严格按照上电顺序加电，关电时反向操作。 |
