LNA
500~2500MHz, Gain30dB, Noise figure2dB, P-1dB15dBm, SMA
- DLNA8-500-2500-2309
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 500 | ~ | 2500 | MHz |
| Gain | 30 | dB | ||
| Gain flatness | ±1.3 | ±1.5 | dB | |
| Noise figure | 2 | dB | ||
| VSWR | 1.8 | 2.2 | ||
| P-1dB | 15 | 16 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -40~+70℃ Design assurance |
Suggested PCB Layout
| F(GHz) | S11 VSWR | S22 VSWR | Gain(dB) | P-1(dBm) | NF(dB） |
| 0.1 | 4.8 | 2.05 | 32.84 | 19 | 1.15 |
| 0.34 | 2.29 | 1.57 | 34.93 | 20.5 | 1.16 |
| 0.59 | 1.76 | 1.61 | 35.4 | 21.2 | 1.04 |
| 0.83 | 1.45 | 1.54 | 35.64 | 20.6 | 1.09 |
| 1.07 | 1.39 | 1.26 | 35.68 | 20.8 | 1.14 |
| 1.31 | 1.38 | 1.08 | 35.67 | 19.7 | 1.22 |
| 1.56 | 1.3 | 1.48 | 35.71 | 20.1 | 1.33 |
| 1.8 | 1.3 | 1.75 | 35.42 | 19.9 | 1.52 |
| 2.04 | 1.44 | 1.68 | 34.94 | 19.8 | 1.68 |
| 2.29 | 1.52 | 1.42 | 34.38 | 19.7 | 1.59 |
| 2.53 | 1.48 | 1.24 | 34.09 | 19.6 | 1.55 |
| 2.77 | 1.47 | 1.19 | 33.89 | 19.5 | 1.71 |
| 3.01 | 1.51 | 1.16 | 33.05 | 19.8 | 1.94 |
| 3.26 | 1.42 | 1.09 | 31.37 | 19.6 | 1.99 |
| 3.5 | 1.38 | 1.14 | 29.7 | 19 | 2.05 |
Reference picture
Configuration(mm)

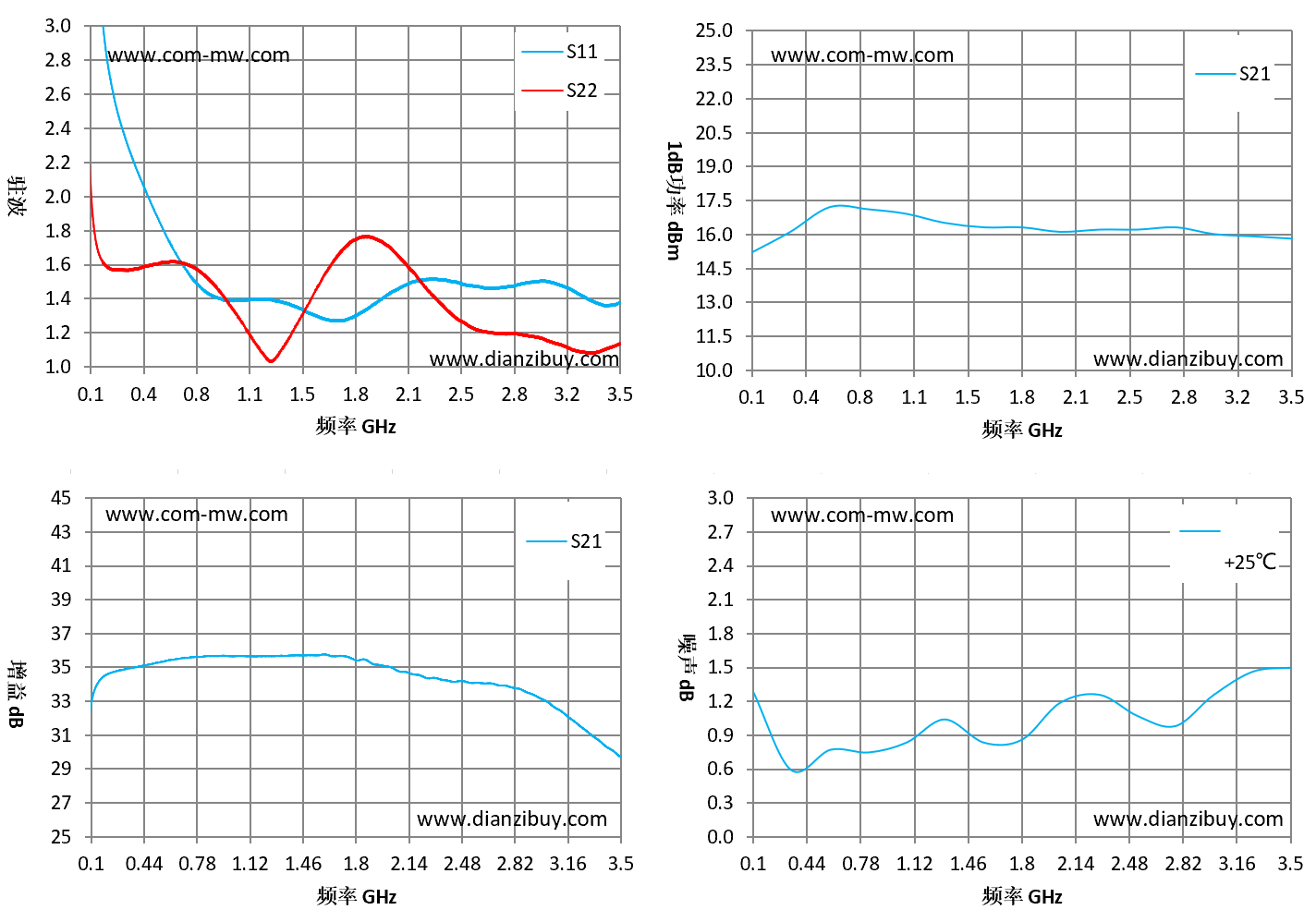

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
