Power amplifier
5750~5850MHz, Gain16dB, Psat40W, SMA
- DPA9-5700-5900-1609
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 5750 | ~ | 5850 | MHz |
| Gain | 16 | dB | ||
| Gain flatness | ±1.2 | dB | ||
| VSWR | 1.5 | |||
| Psat | 40 | W | ||
| Max input power | 30 | dBm | ||
| spur reduction | 60 | dBc | ||
| Harmonic Rejection | 20 | dBc |
Environmental
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +28V |
| Working current | 7A |
| Operation Temp. | -25~+65℃ Design assurance |
| Storage Temp. | -40~+65℃ Design assurance |
| Quality Grade | Industrial grade |
Port Definition
| PTT | Low level or suspended, the power amplifier is working, while the high-level power amplifier is not working. |
| TEMP | Over temperature protection prompt: When the temperature reaches 70 degrees, a high level is output and the power amplifier does not work. |
| SWR | Output standing wave protection, when the output standing wave is greater than 3 or the output is open or short circuited, the output is high and the power amplifier does not work. |
| Vt | Power amplifier cavity temperature, calculation formula Vt=0.5V+TC × 10mV/℃ |
| V+ | Power amplifier output power forward detection, voltage output. |
| V- | Power amplifier output power reverse amplifier detection, voltage output. |
| PREST | Reset function, when protection occurs, a pulse signal is given to reset. |
| VDD | Working power supply voltage+28V, efficiency: ≥ 25% |

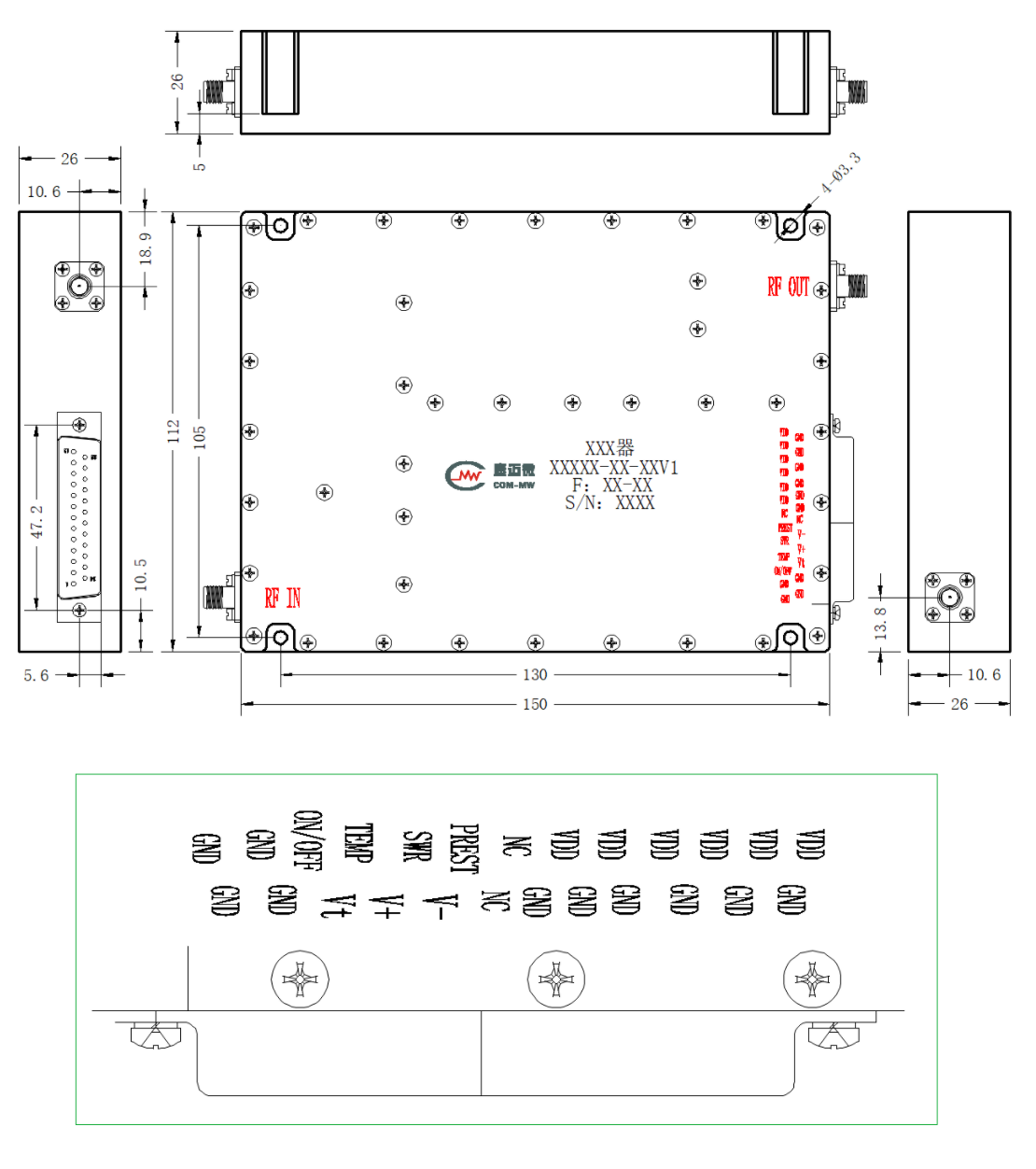

Configuration
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
