LNA
15~50GHz, Gain38dB, Noise figure5dB, P-1dB17dBm, 2.4
- DLNA8-15-50G-9196
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 15 | ~ | 50 | GHz |
| Gain | 38 | dB | ||
| Gain flatness | ±3 | dB | ||
| Noise figure | 5 | dB | ||
| VSWR | 2 | |||
| P-1dB | 17 | dBm |
Other parameters
| Connector | 2.4-F or K可拆 |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +5V |
| Working current | 400mA |
| Reverse isolation | 60dB |
| Operation Temp. | -40~+65℃ Design assurance |
Typical test data
| Frequency GHz | S11 VSWR | S22 VSWR | Gain dB | Noise dB | P-1 dBm | Psat dBm |
| 13.00 | 2.50 | 1.17 | 36.52 | 2.97 | 10.04 | 12.40 |
| 15.64 | 2.22 | 1.11 | 42.12 | 2.68 | 14.93 | 17.08 |
| 18.29 | 1.60 | 1.24 | 42.41 | 2.82 | 17.54 | 18.79 |
| 20.93 | 1.10 | 1.43 | 41.80 | 3.13 | 18.81 | 19.30 |
| 23.57 | 1.12 | 1.35 | 40.71 | 3.66 | 19.05 | 19.60 |
| 26.21 | 1.26 | 1.19 | 40.59 | 3.65 | 19.18 | 19.87 |
| 28.86 | 1.60 | 1.12 | 40.60 | 3.76 | 18.65 | 19.50 |
| 31.50 | 1.76 | 1.28 | 41.35 | 4.04 | 17.83 | 19.27 |
| 34.14 | 1.46 | 1.34 | 41.39 | 4.02 | 17.43 | 18.77 |
| 36.79 | 1.56 | 1.18 | 41.43 | 3.95 | 16.31 | 18.02 |
| 39.43 | 1.84 | 1.45 | 41.64 | 3.81 | 16.41 | 18.17 |
| 42.07 | 1.67 | 1.57 | 42.47 | 4.03 | 17.53 | 19.10 |
| 44.71 | 1.17 | 1.29 | 43.42 | 4.79 | 18.09 | 19.13 |
| 47.36 | 1.23 | 1.61 | 43.25 | 4.64 | 17.94 | 19.03 |
| 50.00 | 1.26 | 1.93 | 43.32 | 6.27 | 19.57 | 20.10 |

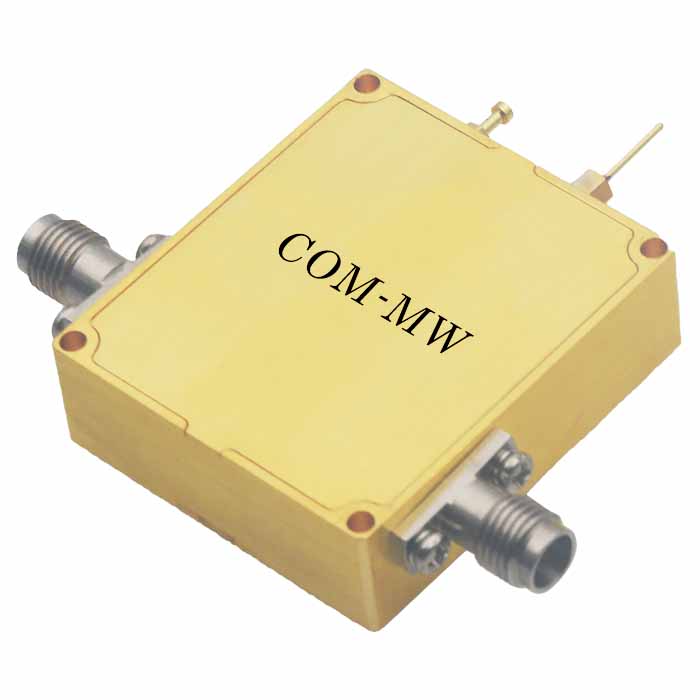

Reference picture

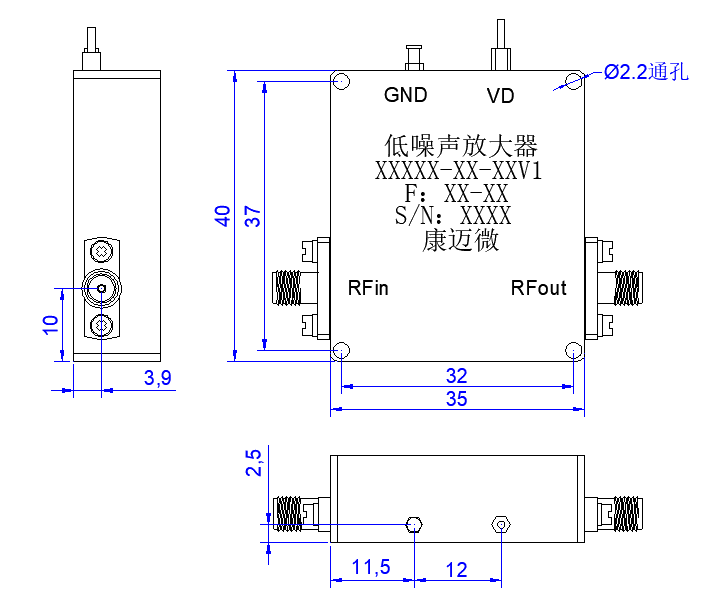

Configuration(mm)
Typical test curve
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
Working or storage temperature less than 125 ℃;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
