LNA

6000~12000MHz, Gain60dB, Noise figure2dB, P-1dB10dBm, SMA

  • DLNA8-6000-12000-4262
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET
3D Outline Drawing

Main specifications

ParametersMinTypicalMaxUnits
Frequency6000~12000MHz
Gain586062dB
Attenuation range060dB
Noise figure2dB
VSWR2
P-1dB10dBm
TTL  Voltage Control02.5V
Setting Time2us

Other parameters

ConnectorSMA-F
Connector materialStainless steel
Impedance50Ω
Working voltage+12V
Working current500mA
Operation Temp.-40~+70℃ Design assurance
OtherReach /RoHS Compliance, CE Self Declaration

Typical test data

Frequency S11 S22 GAINAttenuation(TTL1=0V;TTTL2=2.5V)Attenuation(TTL1=2.5V;TTL2=0V )Noise
 GHzVSWRVSWR dBdB dBdB
41.502.8155.4424.9224.911.76
51.521.958.6624.0223.961.21
61.451.3359.7324.5624.51.30
71.331.260.2524.7124.641.19
81.211.3660.5224.6124.691.32
91.181.2660.823.8323.971.31
101.421.0960.5722.5322.611.45
111.831.1860.2222.122.081.4
121.821.360.4522.3422.321.49
131.811.366122.6422.641.61
142.021.4361.1722.5322.511.47
151.831.5260.3821.2321.161.73
161.801.7460.2120.2620.261.63
17.001.821.9459.1717.8517.782.04
18.001.682.1558.7418.0517.761.73

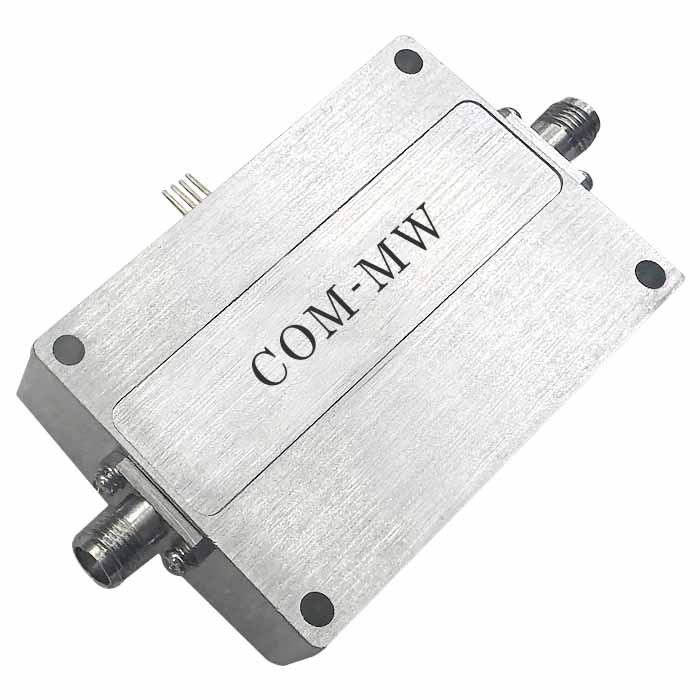

Reference picture

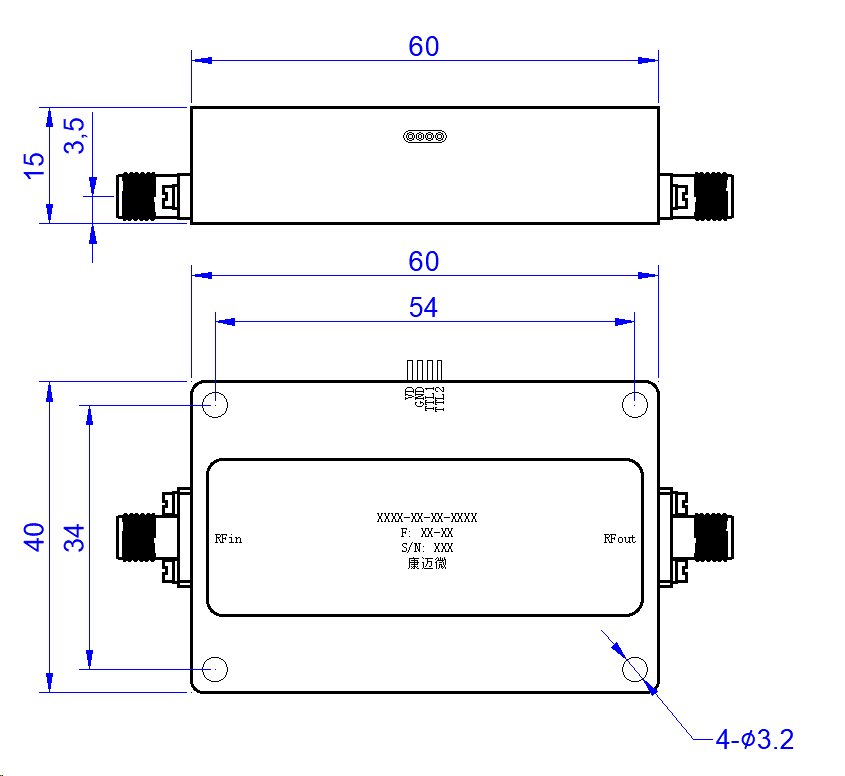

Configuration(mm)

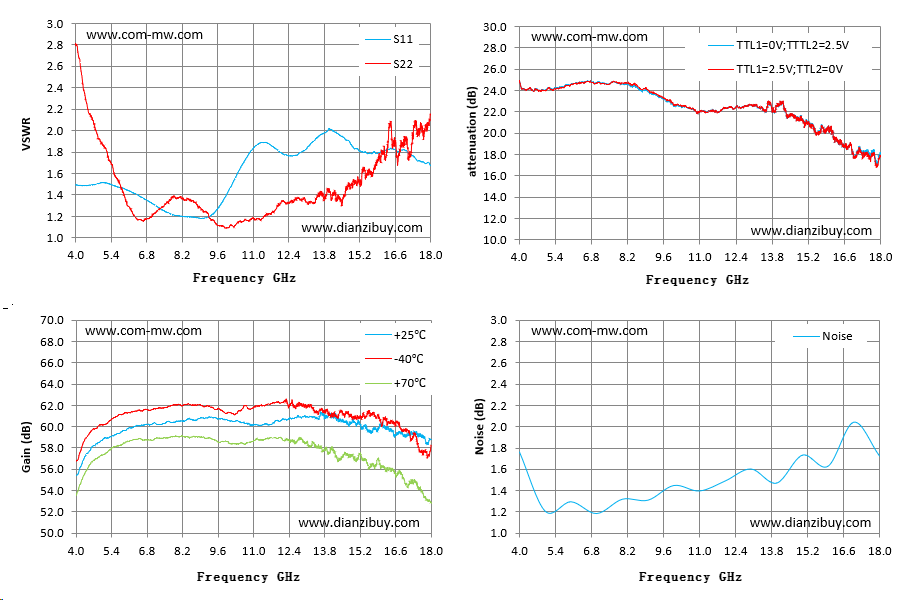

Typical test curve

Note

, When designing, consider the issue of amplifier heat dissipation.

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
