Power amplifier
4~50GHz, Gain33dB, Psat 130dBm, Psat 223dBm, 2.4
- DPA8-4-50G-3799
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 4 | ~ | 50 | GHz |
| Gain | 33 | dB | ||
| Gain flatness 1 | ±3 | dB@4-26.5GHz | ||
| Gain flatness 2 | ±3 | dB@26.5-50GHz | ||
| Input VSWR | 2 | |||
| Psat 1 | 30 | dBm @4-26.5GHz | ||
| Psat 2 | 23 | dBm @26.5-50GHz |
Other parameters
| Connector | 2.4-F |
| Connector material | Stainless steel |
| Working voltage | +220V |
| Operation Temp. | -20~+50℃ Design assurance |
| Other | Input 220v AC |

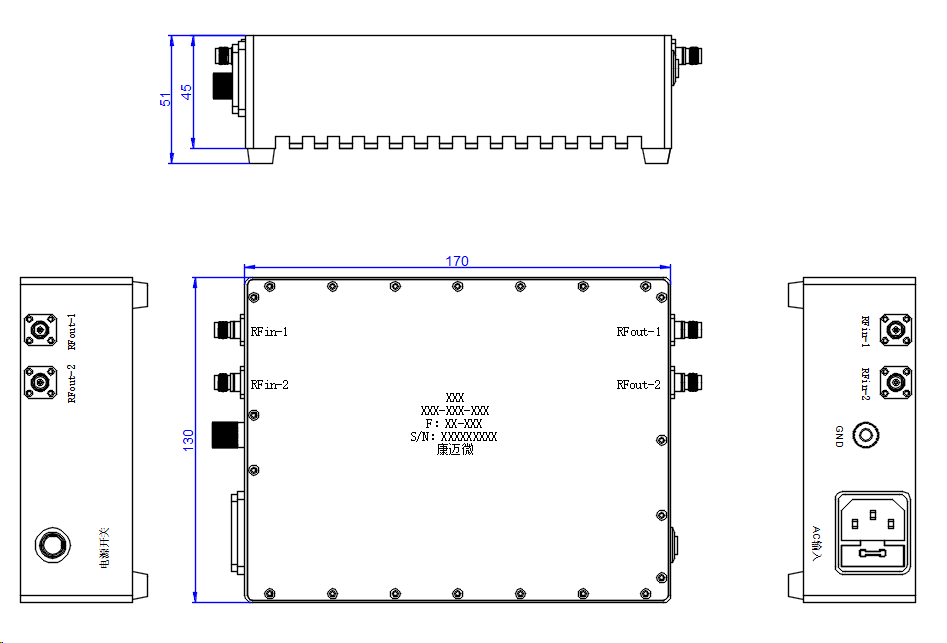

Configuration
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
