LNA

2000~26000MHz, Gain24dB, Noise figure5dB, P-1dB8dBm, SMA

  • DLNA8-2000-26000-3682
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

Main specifications

ParametersMinTypicalMaxUnits
Frequency2000~26000MHz
Gain24dB
Gain flatness±2dB
Noise figure5dB
VSWR2.5
P-1dB8dBm
Max input power10dBm
Spur reduction70dBc
Harmonic Rejection20dBc
OIP320dBm
Reverse isolation45dB

Other parameters

ConnectorSMA
Connector materialStainless steel
Impedance50Ω
Working voltage+12V
Working current100mA
Operation Temp.-40~+70℃ Design assurance

Typical test data

FrequencyS11S22GAINP-1PSATNF
GHzVSWRVSWRdBdBmdBmdB
12.082.0725.911819.84.48
2.821.971.2929.615.919.84.08
4.642.261.1429.2614.819.53.98
6.461.981.0228.4614.519.53.4
8.291.531.128.9514.619.63.07
10.111.251.429.4214.719.52.88
11.931.461.4230.1714.119.52.7
13.751.461.4430.7614.318.32.5
15.571.251.1831.2213.2182.63
17.391.491.1631.412.817.83.07
19.211.371.0631.6912.517.63.22
21.041.151.233212.117.93.06
22.861.041.3931.811.3183.32
24.681.151.3430.961118.33.63
26.51.251.5429.6210.118.64.19

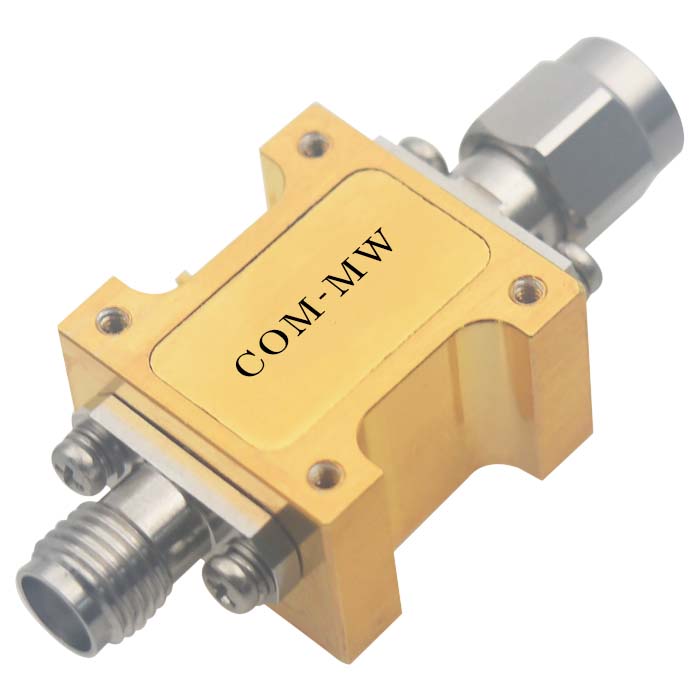

Reference picture

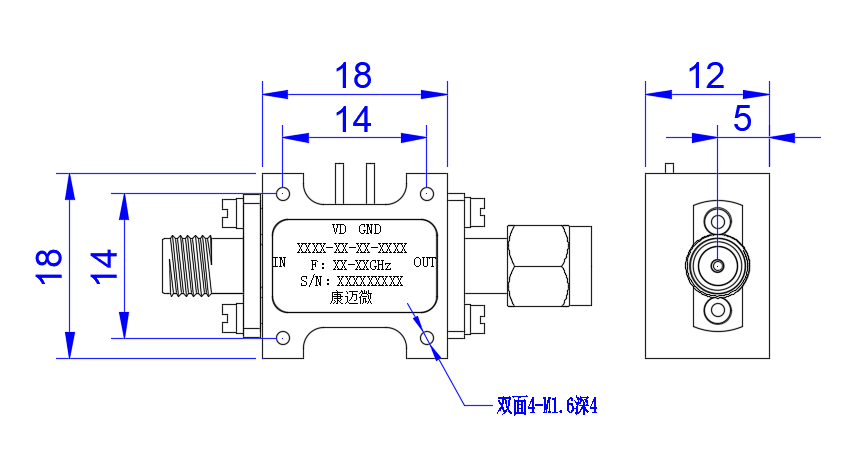

Configuration(mm)

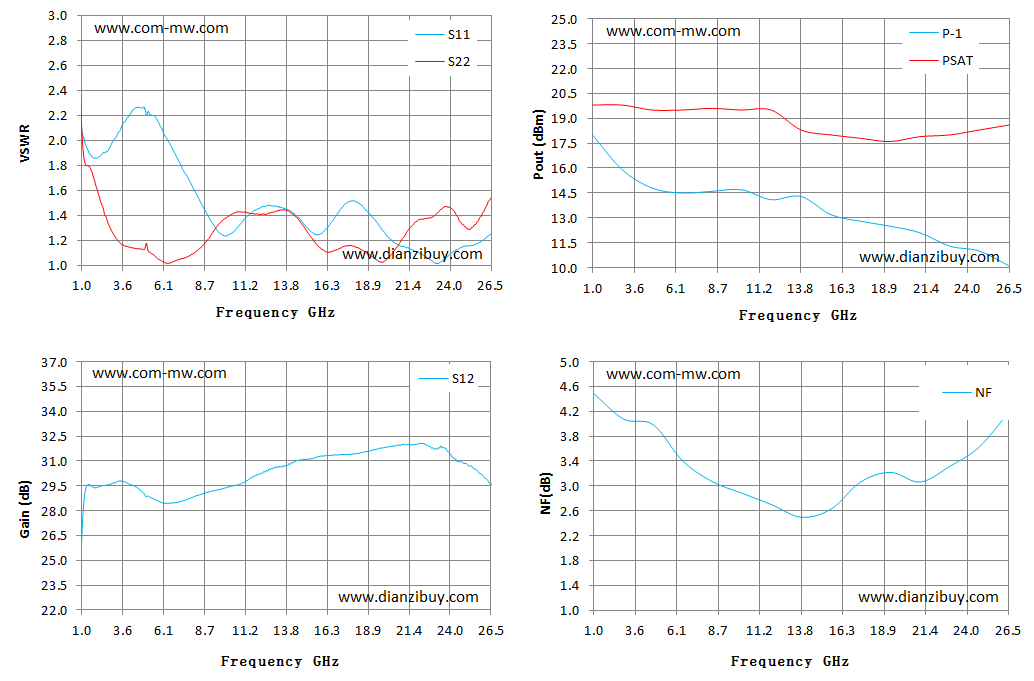

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
