Power amplifier
600~8000MHz, Gain20dB, P-1dB30dBm, SMA
- DPA8-600-8000-1727
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 600 | ~ | 8000 | MHz |
| Gain | 20 | dB | ||
| Gain flatness | ±2.3 | dB | ||
| VSWR | 2 | |||
| P-1dB | 30 | dBm | ||
| Psat | 31 | dBm | ||
| Max input power | 40 | dBm |
Other parameters
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12V |
| Working current | 800mA |
| Operation Temp. | -30~+70℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | Input limiter |

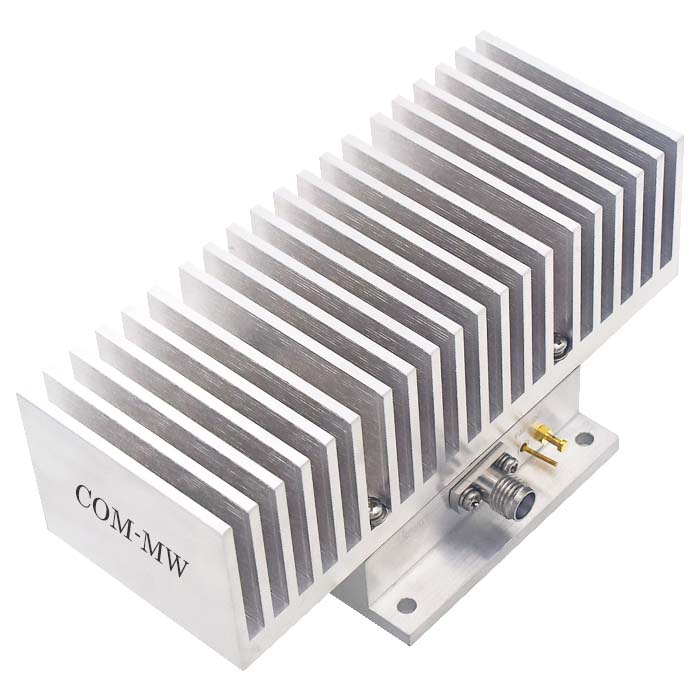

Reference picture

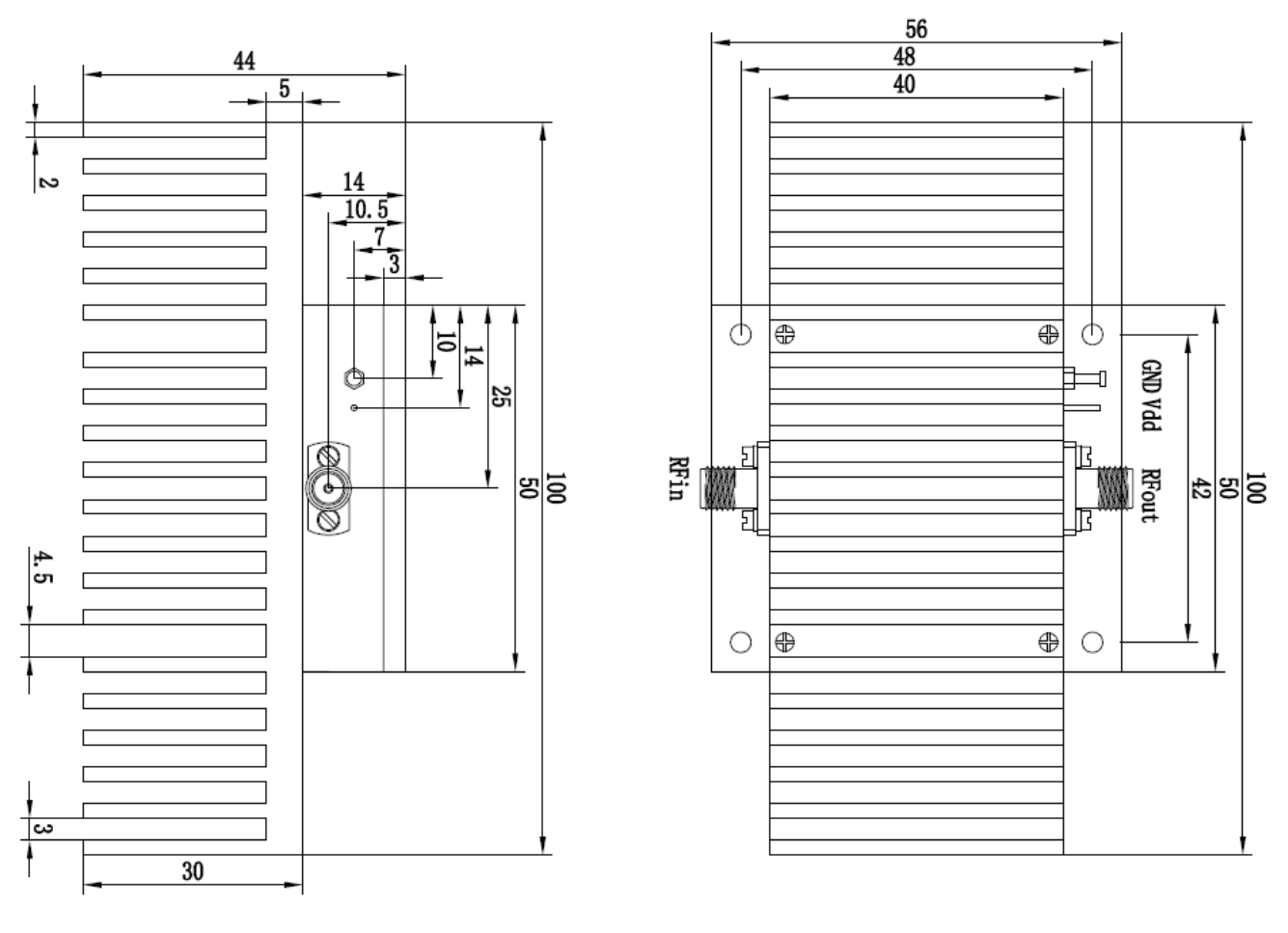

Configuration
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
