LNA

4000~8000MHz, Gain35dB, Noise figure1.2dB, P-1dB10dBm, SMA

  • DLNA8-4-8G-3874
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

Main specifications

ParametersMinTypicalMaxUnits
Frequency4000~8000MHz
Gain35dB
Gain flatness1.2dB
Noise figure1.2dB
VSWR2
P-1dB10dBm

Other parameters

ConnectorSMA-F
Connector materialStainless steel
Working voltage+15V
Working current150mA
Operation Temp.-40~+60℃ Design assurance

Typical test data

FrequencyS11S22GainP-1PSATNosie
GHzVSWRVSWRdBdBmdBmdB
22.292.2132.7117.520.52.69
2.572.541.2238.1119.620.71.59
3.142.421.7738.5720.321.11.56
3.7121.7838.8819.821.21.1
4.291.61.5239.4919.821.31.15
4.861.291.2840.0419.421.11.12
5.431.261.1740.261921.21.4
61.441.1540.3418.821.31.05
6.571.531.1440.3519.621.21.11
7.141.551.2840.2919.8211.11
7.711.711.6439.8619.9211.14
8.292.071.8139.4219.720.71.18
8.862.531.538.8819.420.61.55
9.433.171.3138.1319.420.61.52
104.181.8436.9619.320.51.35

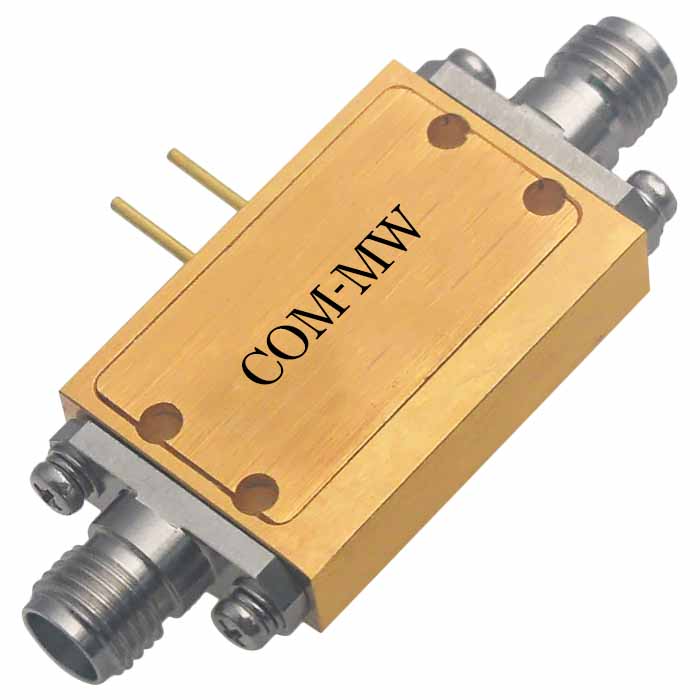

Reference picture

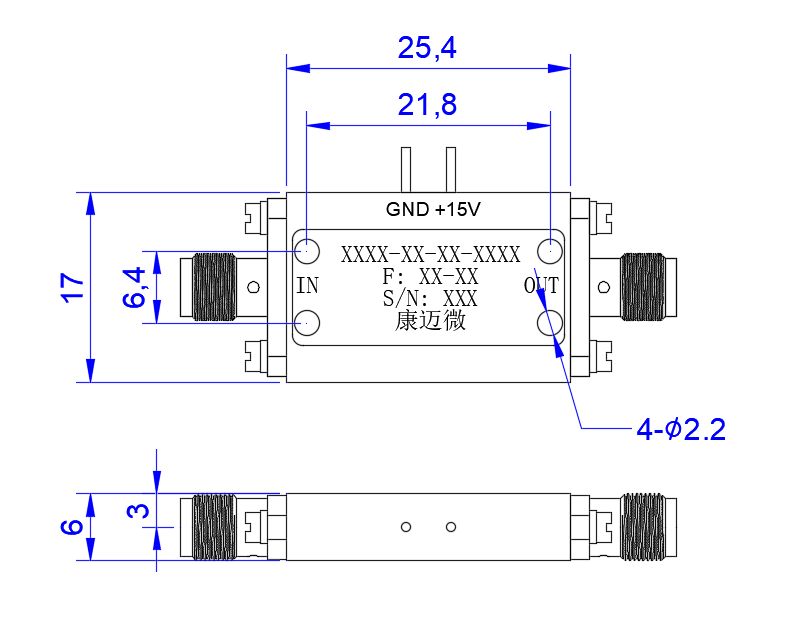

Configuration(mm)

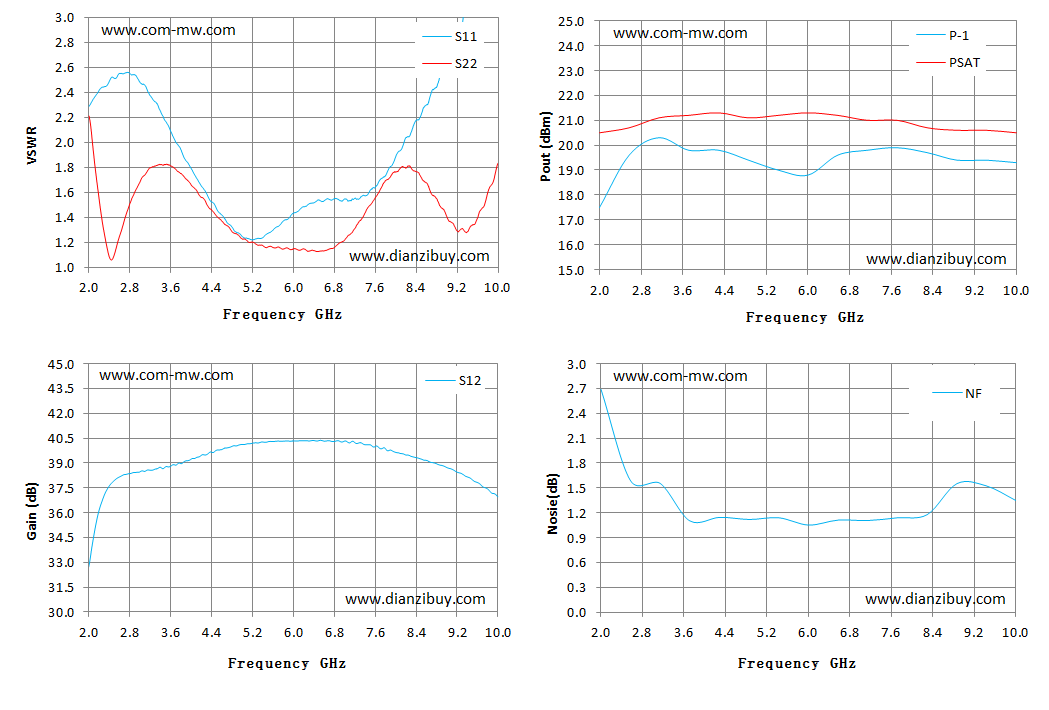

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
