LNA
1~18GHz, Gain45dB, Noise figure2.8dB, P-1dB15dBm, SMA
- DLNA-1000-18000-01
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1 | ~ | 18 | GHz |
| Gain | 45 | dB | ||
| Gain flatness | ±2.5 | dB | ||
| Noise figure | 2.8 | dB | ||
| VSWR | 2.2 | |||
| P-1dB | 15 | dBm |
Other parameters
| Connector | SMA-F Detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -30~+70℃ Design assurance |
Typical test data
| F(GHz) | NF(dB） | S11 VSWR | S22 VSWR | Gain(dB) |
| 1 | 1.51 | 1.23 | 1.13 | 48.1 |
| 2 | 1.48 | 1.23 | 1.21 | 48.2 |
| 4 | 1.43 | 1.74 | 1.25 | 47.9 |
| 6 | 1.5 | 1.86 | 1.27 | 47.1 |
| 8 | 1.52 | 1.31 | 1.17 | 47.8 |
| 10 | 1.55 | 1.68 | 1.47 | 48.1 |
| 12 | 1.62 | 1.72 | 1.41 | 47.8 |
| 14 | 1.71 | 1.49 | 1.38 | 47.9 |
| 16 | 1.86 | 1.56 | 1.62 | 47.8 |
| 18 | 2.11 | 1.71 | 1.22 | 46.9 |

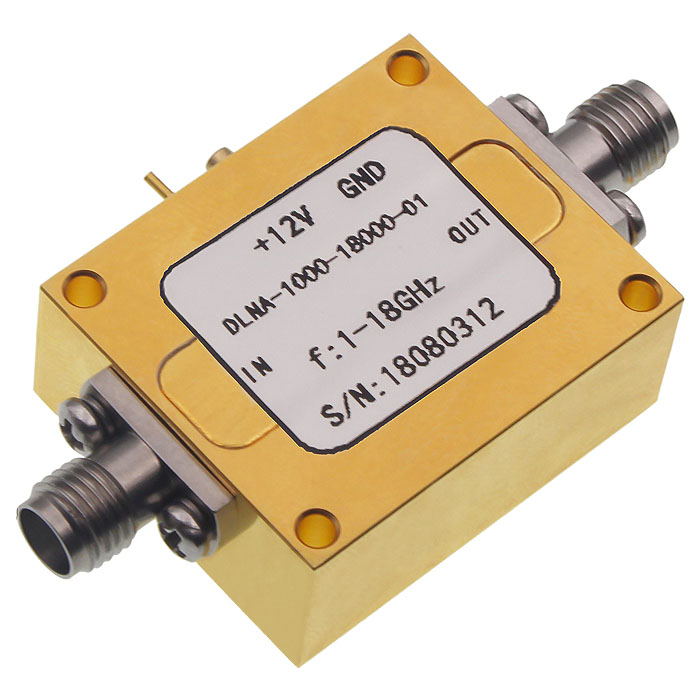

Reference picture
Configuration(mm)

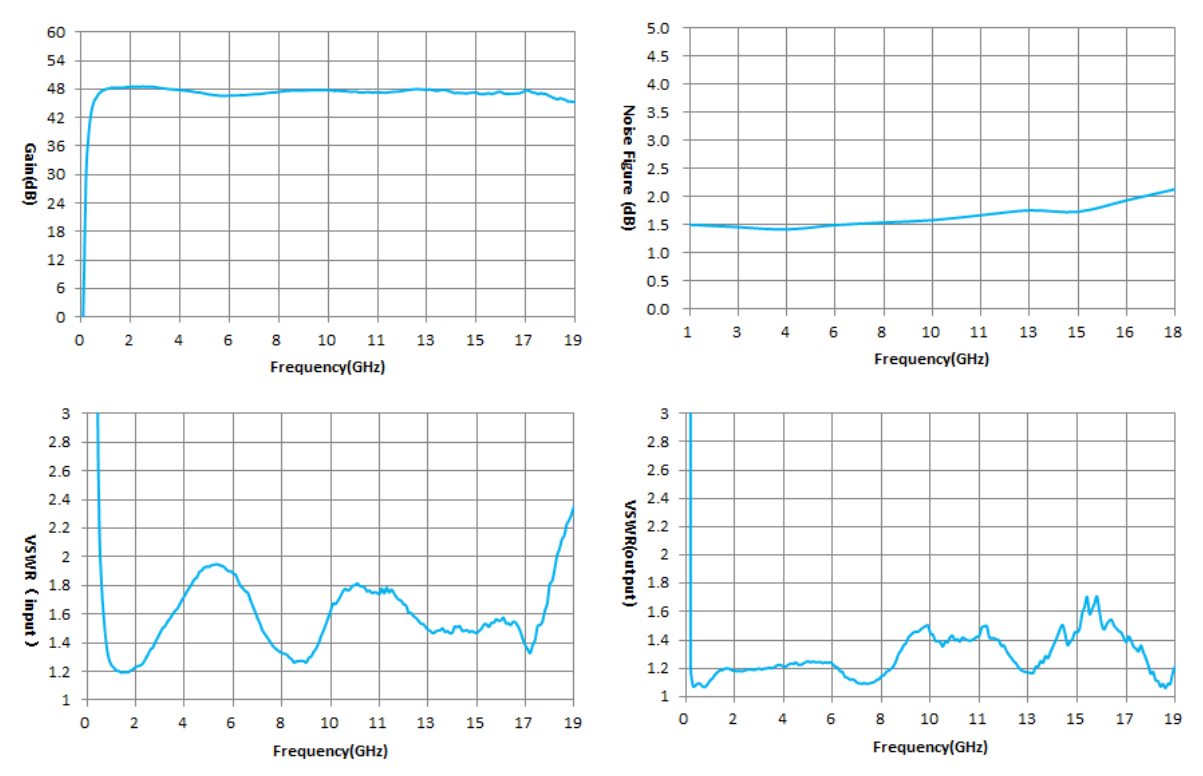

Typical test curve
Note
, When designing, consider the issue of amplifier heat dissipation.
