LNA
1~18GHz, Gain30dB, Noise figure3dB, P-1dB15dBm, SMA-JK
- DLNA8-1000-18000-965
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1 | ~ | 18 | GHz |
| Gain | 30 | dB | ||
| Gain flatness | ±2 | dB | ||
| Noise figure | 3 | dB | ||
| VSWR | 2 | |||
| P-1dB | 15 | dBm |
Other parameters
| Connector | SMA-JK |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Other | Maximum input power 3W |
Typical test data
| Frequency(GHz) | S11 VSWR | S22 VSWR | S21 gain | S21 P-1dB | 25 ℃ noise |
| 1 | 1.37 | 1.29 | 35.38 | 21.4 | 2.94 |
| 2 | 1.3 | 1.37 | 34.8 | 21 | 2.89 |
| 4 | 1.55 | 1.12 | 34.34 | 21 | 2.85 |
| 5 | 1.5 | 1.15 | 34.24 | 20.8 | 2.74 |
| 6 | 1.56 | 1.16 | 34.18 | 20.9 | 2.84 |
| 7 | 1.71 | 1.32 | 34.01 | 20.6 | 2.77 |
| 9 | 1.53 | 1.6 | 34.7 | 20.3 | 2.79 |
| 10 | 1.44 | 1.46 | 35.1 | 20.8 | 2.71 |
| 11 | 1.62 | 1.33 | 35.39 | 20.4 | 2.68 |
| 13 | 1.67 | 1.26 | 35.75 | 20.4 | 2.79 |
| 14 | 1.84 | 1.22 | 35.55 | 20.8 | 2.83 |
| 15 | 1.81 | 1.33 | 35.75 | 21.3 | 2.89 |
| 16 | 1.57 | 1.38 | 35.87 | 21.8 | 2.86 |
| 18 | 1.82 | 1.53 | 35.85 | 22.1 | 2.94 |
| 19 | 2.46 | 1.09 | 35.8 | 20.3 | 2.88 |

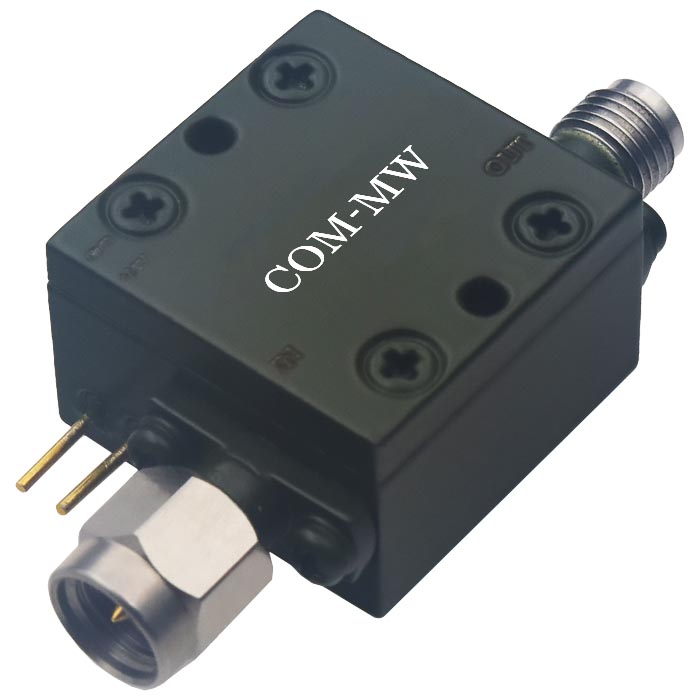

Reference picture

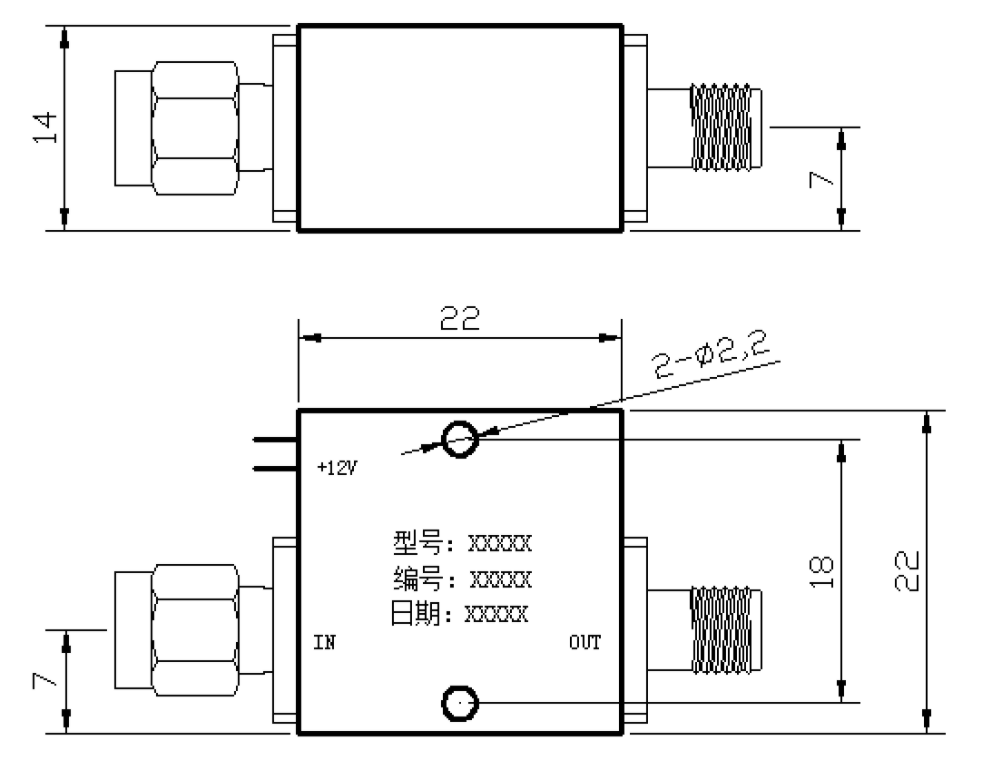

Configuration(mm)

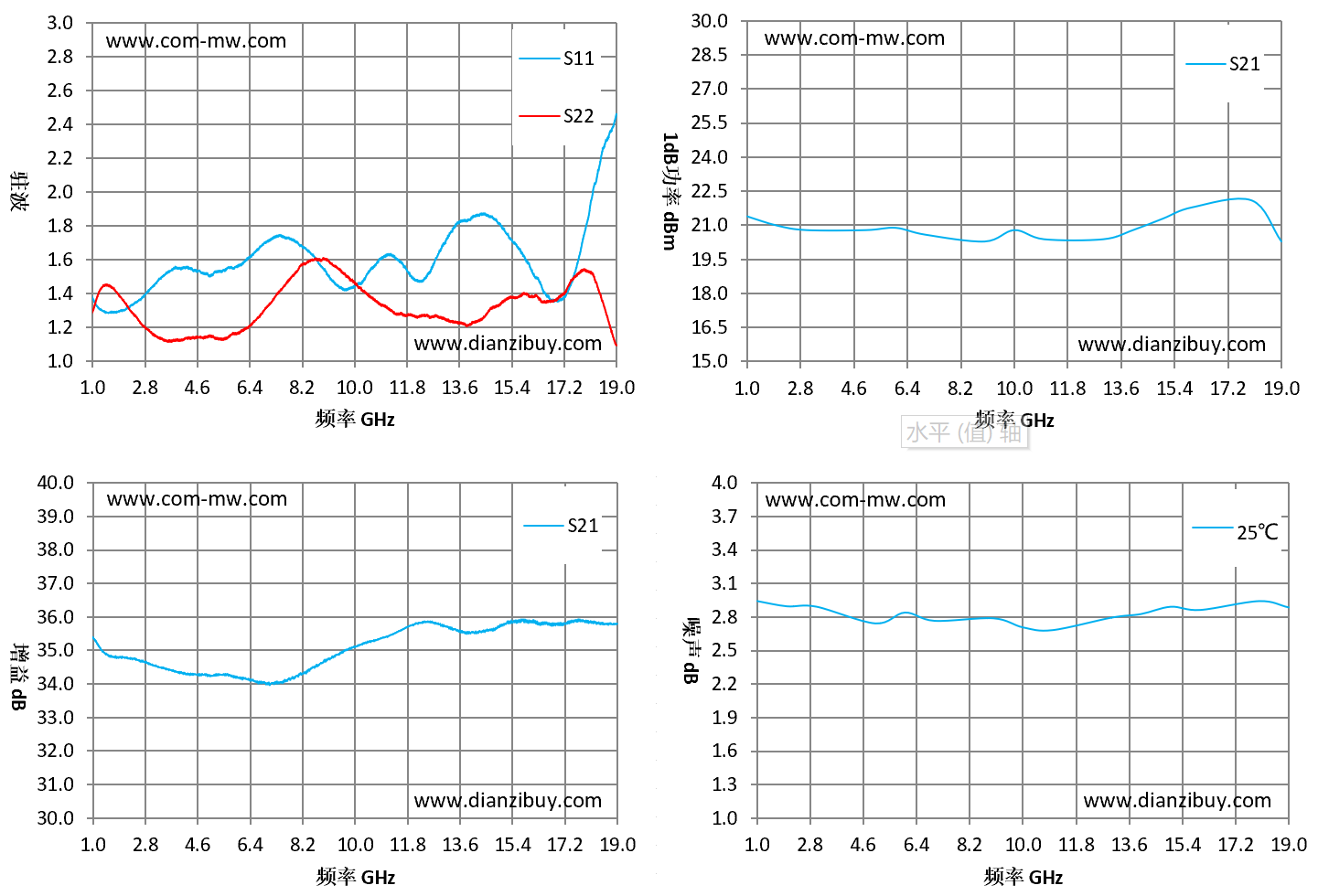

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
