Power amplifier
18~40GHz, Gain44dB, P-1dB18dBm, 2.92-K
- DPA8-18-40G-1313
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, low noise.
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 18 | ~ | 40 | GHz |
| Gain | 40 | 44 | dB | |
| Gain flatness | 4 | dB | ||
| Noise figure | 4.2 | dB | ||
| VSWR | 1.8 | 2.5 | ||
| P-1dB | 18 | 22 | dBm |
Environmental
| Connector | 2.92-F detachable, Pin 0.3mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -30~+70℃ Design assurance |
| Other | Maximum input power: 10dBm |
Typical test data
| F（GHz） | S11 VSWR | S22 VSWR | Gain (dB) | NF（dB） | P-1dB（dBm） |
| 16 | 1.22 | 3.41 | 45.06 | 3.2 | 19.7 |
| 17.86 | 1.13 | 2.3 | 47.17 | 3.15 | 22.6 |
| 19.71 | 1.35 | 1.56 | 46.22 | 3.32 | 22.6 |
| 21.57 | 1.45 | 1.23 | 45.47 | 3.1 | 24.2 |
| 23.43 | 1.51 | 1.61 | 45.88 | 3.53 | 24 |
| 25.29 | 1.48 | 2.03 | 46.19 | 3.27 | 24.3 |
| 27.14 | 1.57 | 2.21 | 46.19 | 3.37 | 23.5 |
| 29 | 1.59 | 1.87 | 46.9 | 3.67 | 22.9 |
| 30.86 | 2.08 | 1.35 | 47.18 | 3.35 | 21.8 |
| 32.71 | 2.04 | 1.38 | 46.17 | 3.61 | 20.7 |
| 34.57 | 1.54 | 1.6 | 45.86 | 3.48 | 22.2 |
| 36.43 | 1.39 | 1.45 | 46.74 | 3.34 | 22 |
| 38.29 | 1.84 | 1.16 | 46.12 | 3.09 | 20.4 |
| 40.14 | 1.86 | 1.8 | 45.2 | 3.08 | 18.8 |
| 42 | 1.77 | 4.51 | 43.12 | 3.17 | 15.8 |
Reference picture
Configuration

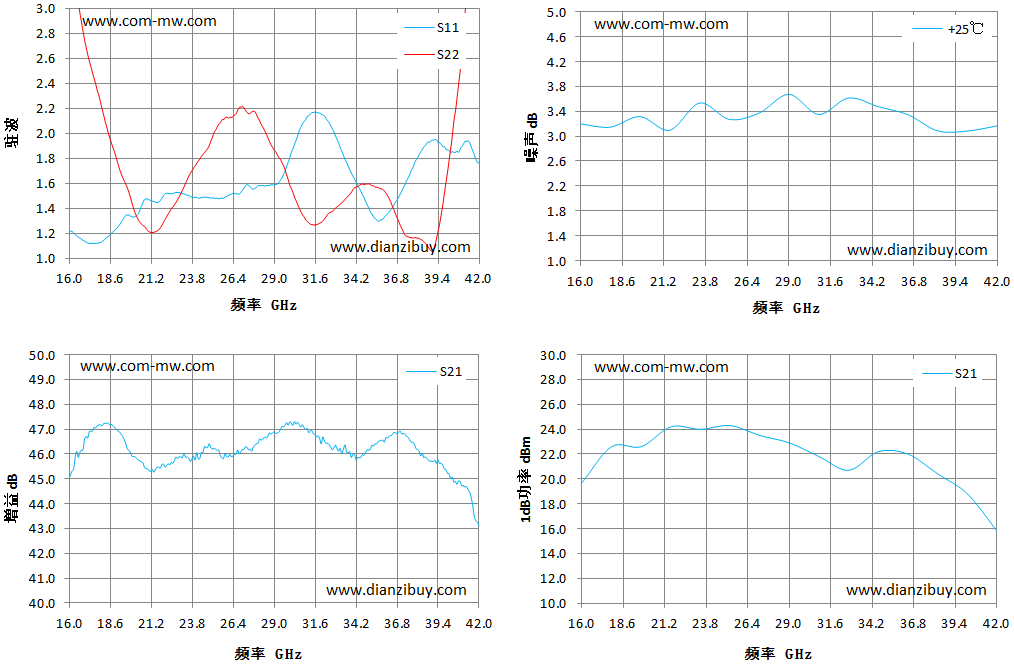

Typical test curve
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
