Power amplifier
6700~6900MHz, Gain40dB, Psat40dBm, SMA
- DPA8-6700-6900-1737
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 6700 | ~ | 6900 | MHz |
| Gain | 40 | dB | ||
| Gain flatness | ±1 | dB | ||
| Psat | 40 | dBm | ||
| Spur reduction | 65 | dBc | ||
| Harmonic Rejection | 20 | dBc |
Other parameters
| Connector | SMA-K |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12V |
| Working current | 10000mA |
| Operation Temp. | -25~+55℃ Design assurance |
| Quality Grade | Industrial grade |
Other
| Temperature protection | 80℃ |
| Working current | 3-4.5A |
| PTT switch port | The amplifier is turned on by default and turned off by+5V. |
| VCC Maximum voltage | +13V |

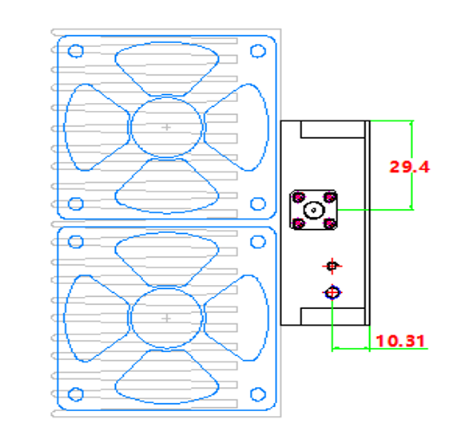

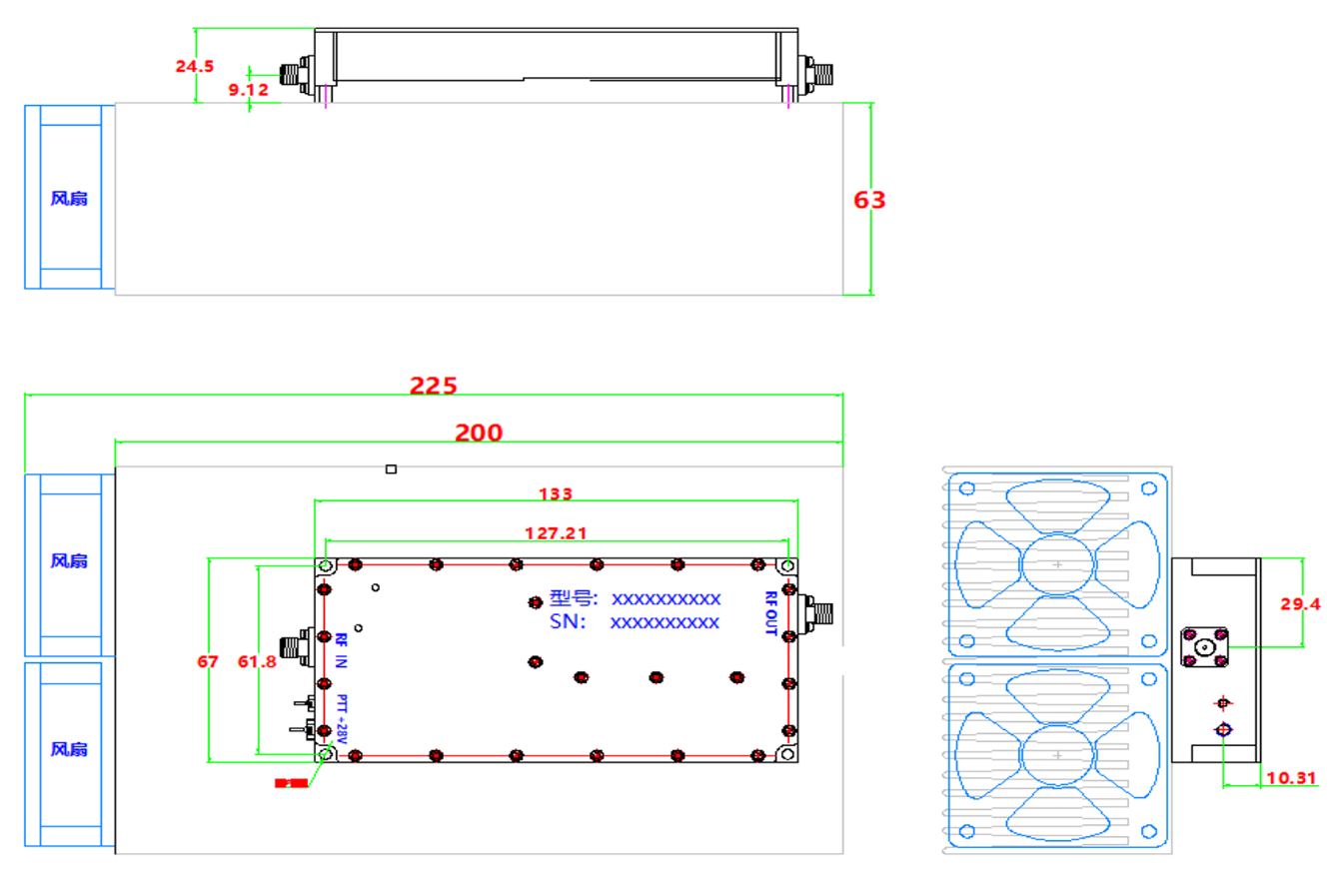

Reference picture
Configuration
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
