LNA

10~3000MHz, Gain35dB, Noise figure2.8dB, P-1dB10dBm, SMA

  • DLNA8-10-3000-3649
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

Main specifications

ParametersMinTypicalMaxUnits
Frequency10~3000MHz
Gain35dB
Gain flatness±2.5dB
Noise figure2.8dB
VSWR2.7
P-1dB10dBm
Max input power10dBm

Other parameters

ConnectorSMA-F
Connector materialStainless steel
Impedance50Ω
Working voltage+12V
Working current300mA
Operation Temp.-40~+70℃ Design assurance
OtherPowered by a 220V power adapter with an interface of DC 5.5mm (outer diameter) * 2.1mm (inner aperture)

Typical test data

FrequencyS11S22GAINP-1PSATNF
MHzVSWRVSWRdBdBmdBmdB
101.871.4438.0517.5418.762.86
2951.131.1838.6318.1219.371.33
5801.241.1338.3717.9819.151.3
8651.351.083817.5518.921.57
11501.471.043817.55191.65
14351.551.0437.9117.519.171.57
17201.571.0237.8217.419.041.49
20051.521.0737.717.2918.821.68
22901.461.1737.5917.4318.751.76
25751.431.3137.4817.6118.761.62
28601.451.4537.4417.7918.621.47
31451.511.4937.517.9418.761.54
34301.61.4537.417.9318.81.67
37151.691.3237.2517.8318.651.94
40001.831.1737.6917.318.11.82

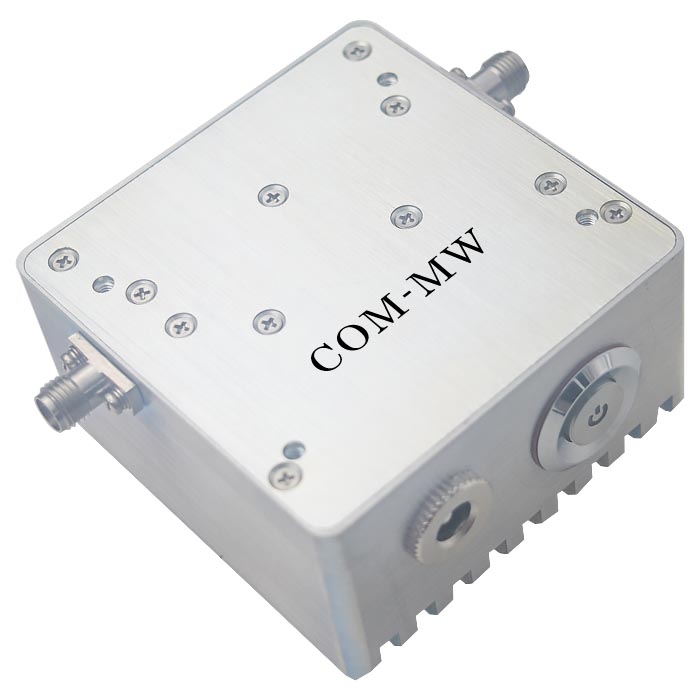

Reference picture

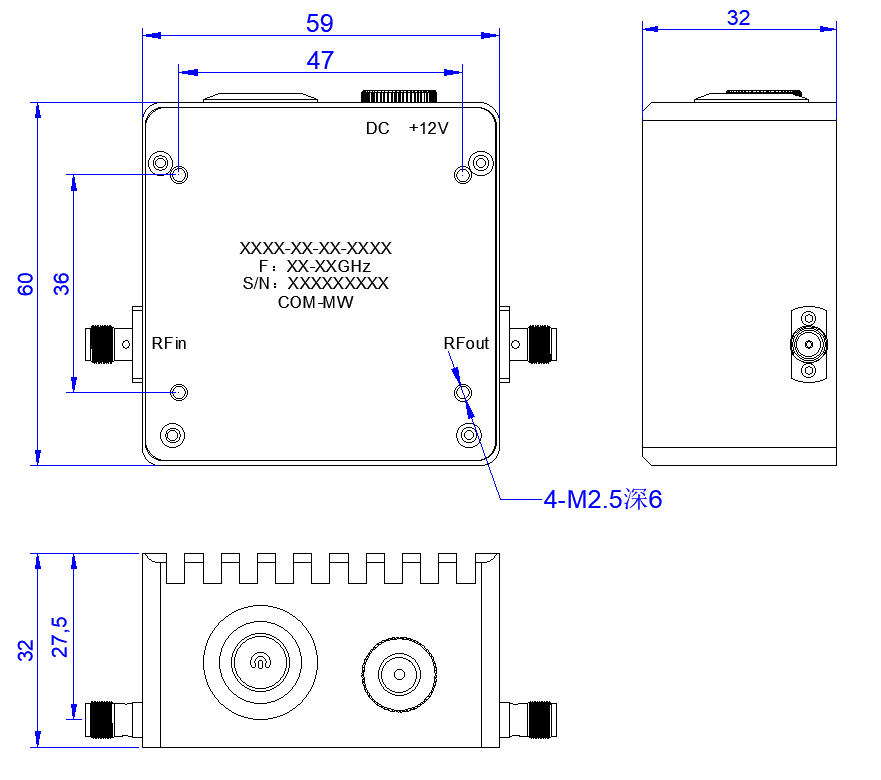

Configuration(mm)

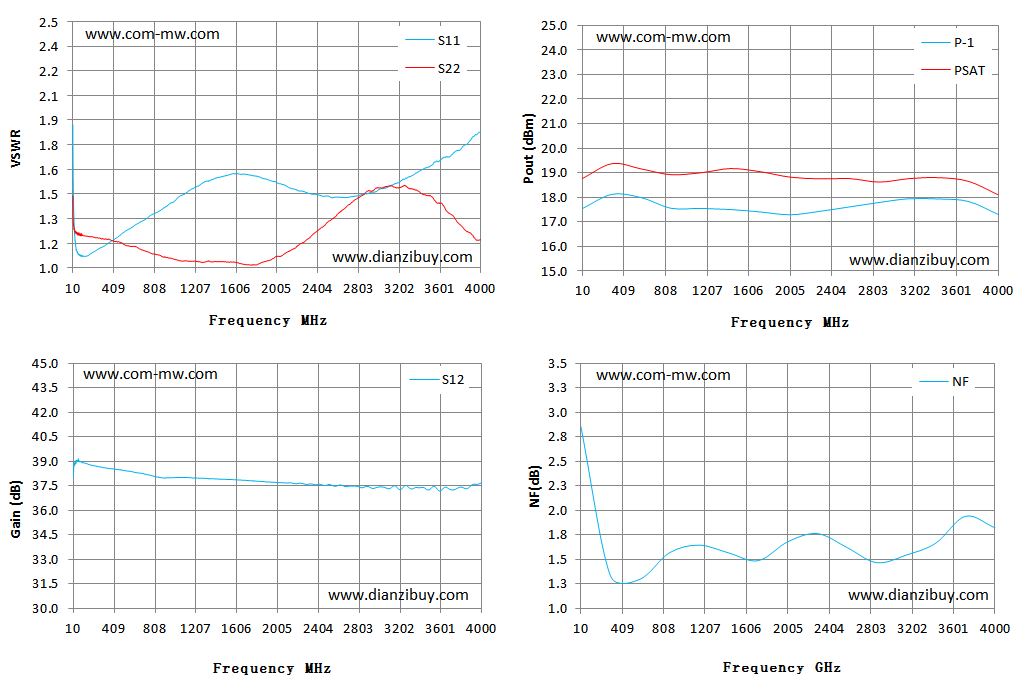

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
