LNA
110~1350MHz, Gain30dB, Noise figure1.5dB, P-1dB15dBm, SMA
- DLNA7-110-1350-893
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 110 | ~ | 1350 | MHz |
| Gain | 30 | dB | ||
| Gain flatness | 2 | dB | ||
| Noise figure | 1.5 | 2 | dB | |
| VSWR | 2 | |||
| P-1dB | 10 | 15 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Other | Output port feeding |
Typical test data
| Frequency MHz | S11 VSWR | S22 VSWR | S21 Gain |
| 50 | 2.11 | 1.84 | 34.66 |
| 189 | 1.62 | 1.23 | 35.11 |
| 329 | 1.58 | 1.16 | 35.07 |
| 468 | 1.52 | 1.14 | 35.2 |
| 607 | 1.45 | 1.15 | 35.37 |
| 746 | 1.37 | 1.16 | 35.48 |
| 886 | 1.28 | 1.16 | 35.46 |
| 1025 | 1.26 | 1.14 | 35.22 |
| 1164 | 1.3 | 1.11 | 34.76 |
| 1304 | 1.37 | 1.09 | 34.2 |
| 1443 | 1.45 | 1.12 | 33.85 |
| 1582 | 1.49 | 1.23 | 33.42 |
| 1721 | 1.52 | 1.36 | 32.92 |
| 1861 | 1.52 | 1.51 | 32.39 |
| 2000 | 1.5 | 1.63 | 32.06 |
Reference picture
Configuration(mm)

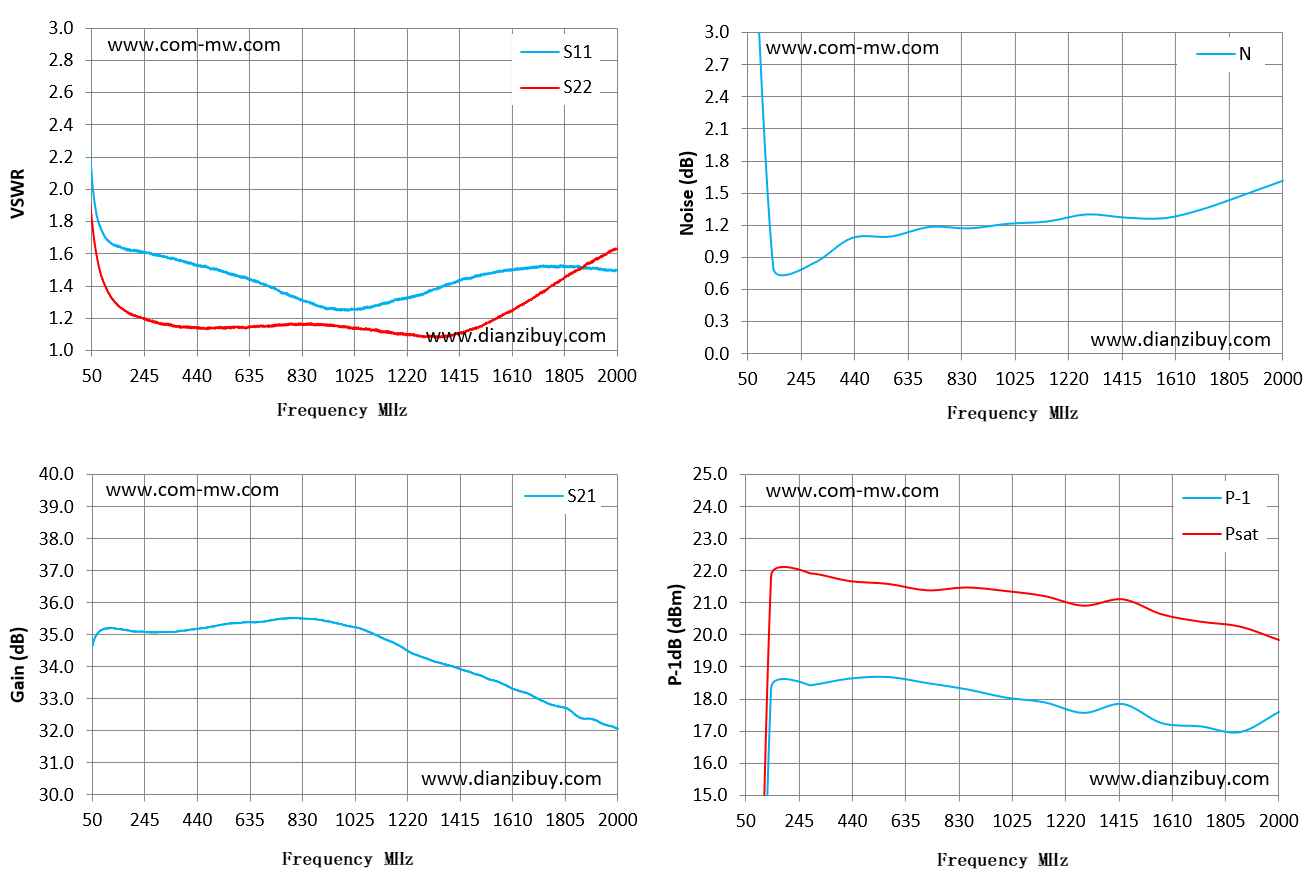

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
