Power amplifier
29.5~31.5GHz, Gain26dB, 2.92
- DPA8-29.5-31.5G-9507
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 29.5 | ~ | 31.5 | GHz |
| Gain | 26 | dB | ||
| Gain flatness | 1.5 | dB | ||
| 增益平波动 | ±1 | dB@-15℃~+50℃ | ||
| VSWR | 1.5 | |||
| 线性工作区输出 | 25 | dBm | ||
| P-1dB | 29 | dBm | ||
| Spur reduction | 60 | dBc | ||
| Harmonic Rejection | 55 | dBc |
Other parameters
| Connector | 2.92 |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +12V |
| Working current | 1000mA |
| Operation Temp. | -15~+50℃ Design assurance |
| Other | 负载失配保护、过温保护、输入信号过载保护，TTL高电平指示 |
J30J-9ZKP接口定义
| No. | definition | Note |
| 1、2 | VD | +12V供电 |
| 3、4 | GND | Ground |
| 5、9 | NC | backup |
| 6 | TTL1 | 负载失配指示，失配为高电平，正常工作为低电平 |
| 7 | TTL2 | 过温指示，过温为高电平，正常工作为低电平 |
| 8 | TTL3 | 输入信号过载指示，输入信号过载为高电平，正常工作为低电平 |

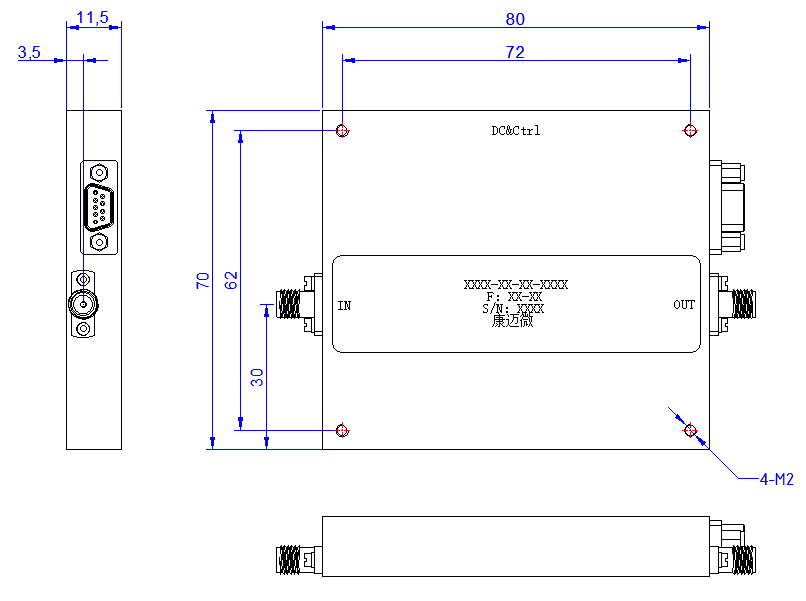

Configuration
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
Working or storage temperature less than 125 ℃;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
