Power amplifier
400~6000MHz, Gain44dB, Psat30dBm, SMA
- DPA8-400-6000-2635
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, detachable heat sink.
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 400 | ~ | 6000 | MHz |
| Gain | 44 | dB | ||
| Gain flatness | ±2.5 | dB | ||
| VSWR | 2.5 | |||
| Psat | 30 | dBm |
Environmental
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +18V |
| Working current | 1000mA |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| Frequency(GHz) | S22 VSWR | S33 VSWR | Gain dB | P-1dB | Psat dBm |
| 0.4 | 1.16 | 1.41 | 49.97 | 29.84 | 31.18 |
| 0.5 | 1.01 | 1.15 | 50 | 29.87 | 31.24 |
| 1 | 1.33 | 1.15 | 49.95 | 30.17 | 31.23 |
| 1.5 | 1.34 | 1.18 | 49.59 | 30.4 | 31.2 |
| 2 | 1.28 | 1.22 | 49.18 | 30.267 | 31.36 |
| 2.5 | 1.18 | 1.3 | 48.94 | 30.74 | 31.52 |
| 3 | 1.11 | 1.41 | 48.5 | 30.31 | 31.19 |
| 3.5 | 1.1 | 1.5 | 47.53 | 29.9 | 30.43 |
| 4 | 1.12 | 1.4 | 47.41 | 29.88 | 30.62 |
| 4.5 | 1.18 | 1.41 | 47.76 | 29.99 | 30.77 |
| 5 | 1.21 | 1.5 | 47 | 29.72 | 30.6 |
| 5.5 | 1.24 | 1.7 | 46.44 | 29.67 | 30.48 |
| 6 | 1.26 | 1.86 | 46.42 | 29.43 | 30.23 |

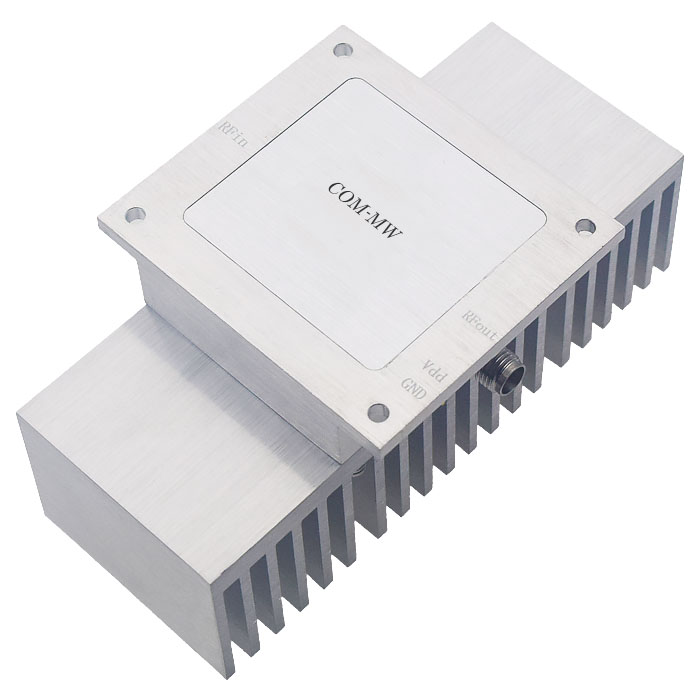

Reference picture
Configuration

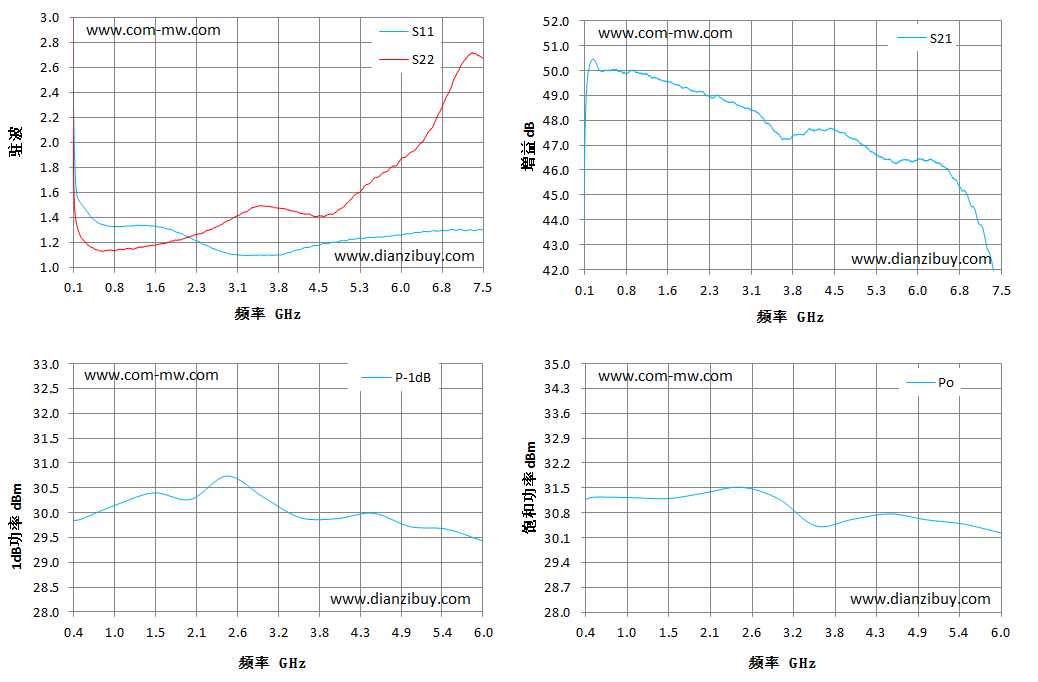

Typical test curve
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
