Tripod
Lifting height0.85~3.2m, With a level gauge
- TXJ7-3000-1942
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Product features
This metal tripod has a small shrinkage size and an adjustable height range of 0.8 to 3 meters. It is made of aluminum alloy and engineering plastics. The antenna can be directly installed on a quick installation board or 1/4 "male thread, or installed using an antenna adapter.
Main specifications
| Parameters | Min | Max | Units |
| Lifting height | 0.85~ | 3.2 | m |
| Folding height | 0.9 | m | |
| Level adjustment | 0 | 360 | ° |
| Pitch adjustment | -30 | 80 | ° |
| Bearing | 5 | Kg |
Other parameters

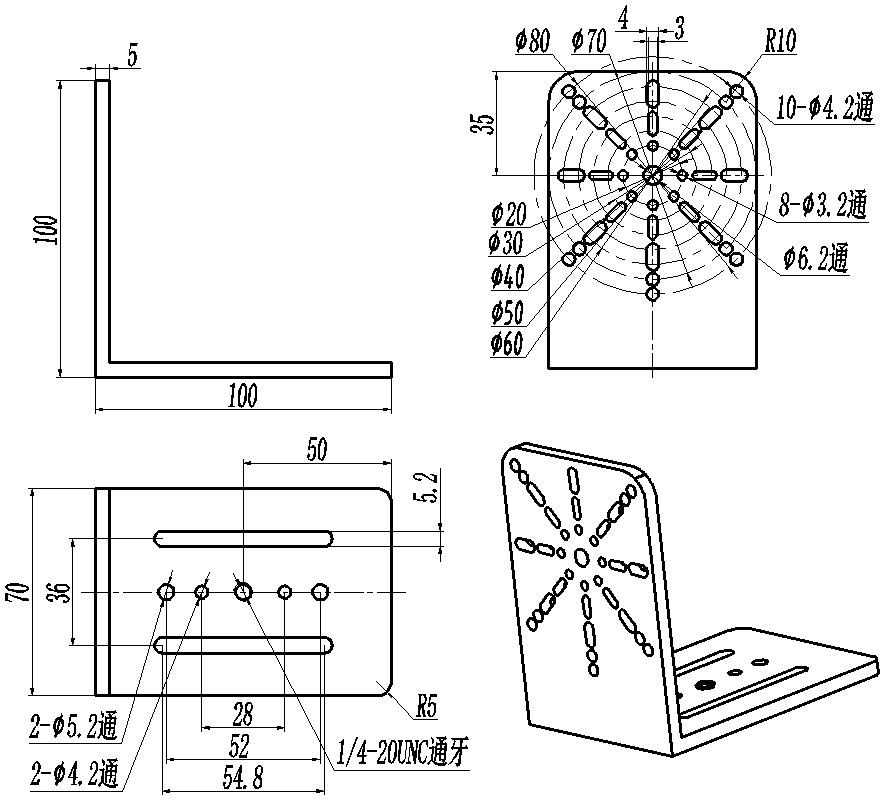

| Connector | 1/4 male thread, porous L-plate |
| Outline size | 146*209*900mm |
| Estimated weight | 3.1Kg |
| Surface | Black |
| Operation Temp. | -25~+55℃ Design assurance |
| Other | With a level gauge |

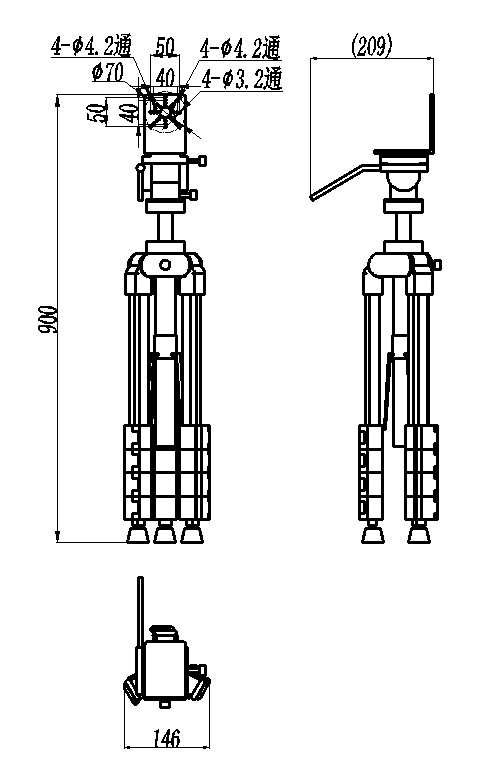

Configuration(mm)
Note
Avoid collisions during installation.
The support rod should be perpendicular to the ground to prevent antenna damage.

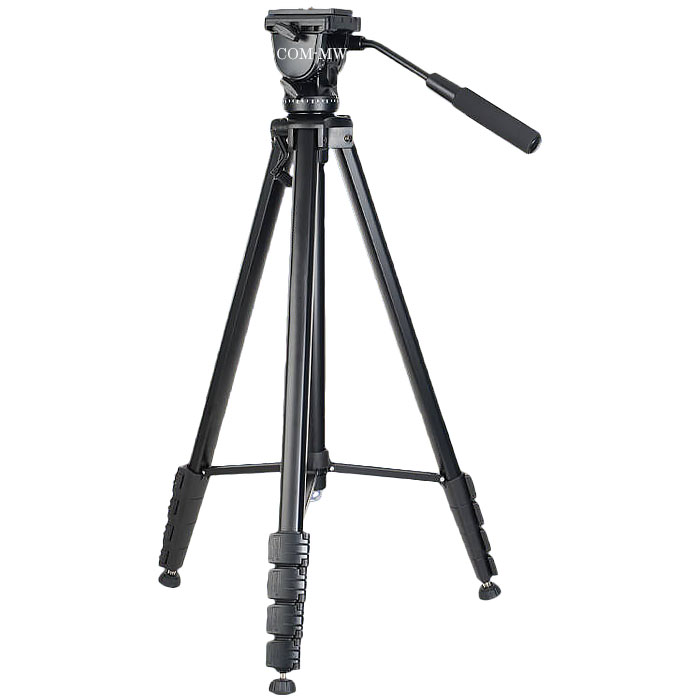

Reference picture
