Waveguide adapter
Frequency8200~12500MHz, Power50W, Rect waveguider, BJ100, SMA
- D8-AWC100SK-1239
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Low loss, wide temperature range.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 8200 | ~ | 12500 | MHz |
| IL | 0.2 | dB | ||
| VSWR | 1.2 | dB |
Other parameters
| Power | 50W |
| Waveguide model | Rect waveguider |
| Connector 1 | BJ100 |
| Connector 2 | SMA-K |
| Flange model | FBP |
| Surface | Black baking paint |
| Product shell material | Aluminium |
| Work Temp. | -45~+85℃ Design assurance |
| Storage Temp. | -55~+125℃ Design assurance |
Typical test data
| F（GHz) | S11VSWR | S12IL | |
| 1 | 8.2 | 1.1 | -0.05 |
| 2 | 8.6 | 1.08 | -0.07 |
| 3 | 9 | 1.1 | -0.08 |
| 4 | 9.4 | 1.09 | -0.1 |
| 5 | 9.8 | 1.06 | -0.12 |
| 6 | 10.2 | 1.03 | -0.14 |
| 7 | 10.6 | 1.05 | -0.16 |
| 8 | 11 | 1.07 | -0.18 |
| 9 | 11.4 | 1.08 | -0.16 |
| 10 | 11.8 | 1.11 | -0.18 |
| 11 | 12.2 | 1.12 | -0.19 |
| 12 | 12.5 | 1.14 | -0.19 |

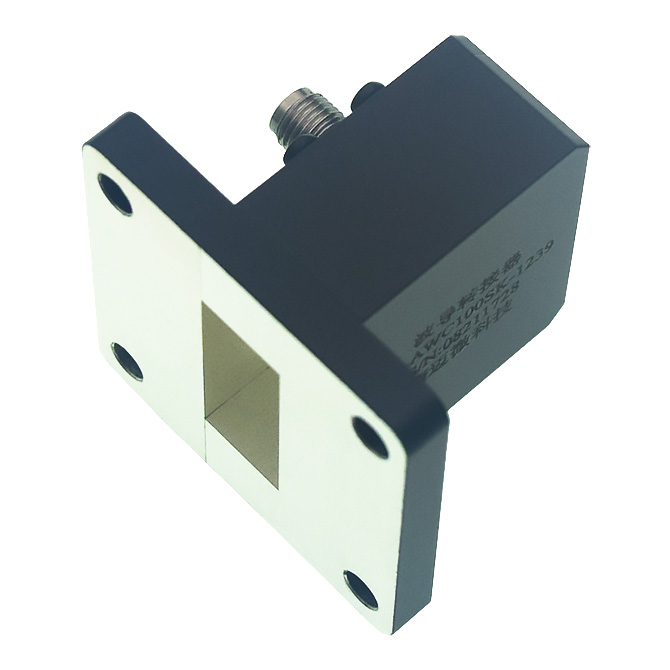

Reference picture

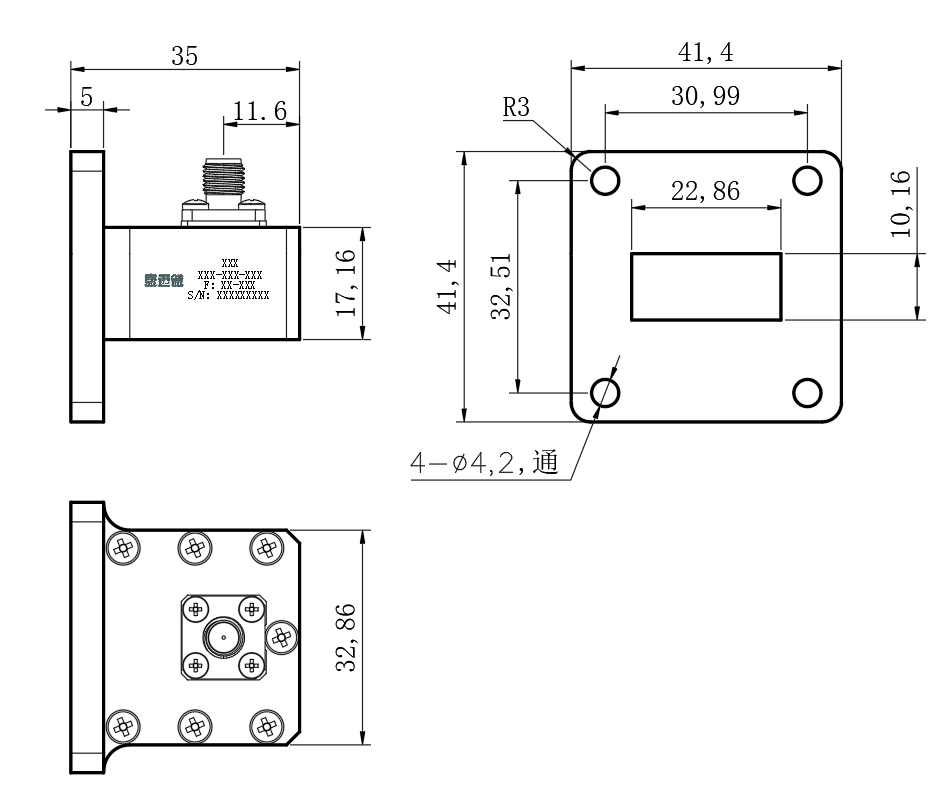

Configuration(mm)

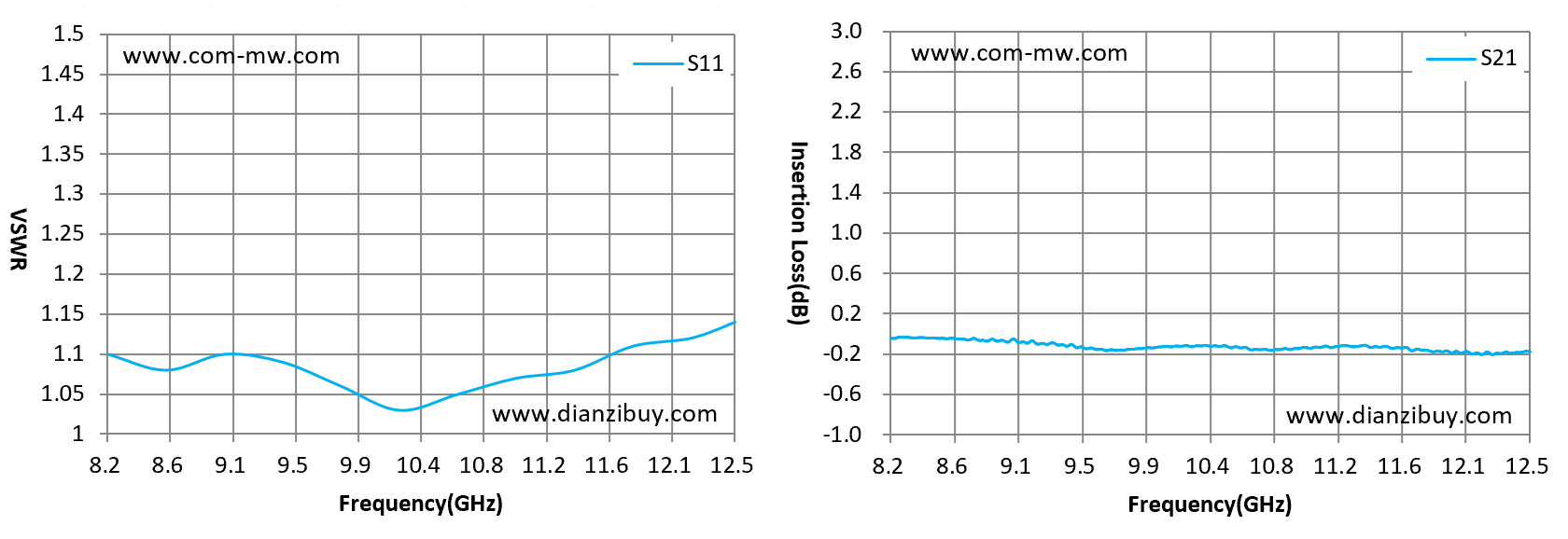

Typical test curve
