Filter
Passband7~9GHz, DC-5.3GHz≥40dBc, 10.7-13GHz≥40dBc
- CA0094
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Small size.
High cost-effectiveness.
Support for SMD.
Main specifications
| Parameters | Frequency | / | Min | Typical | Max | Units |
| Passband | / | / | 7 | ~ | 9 | GHz |
| Passband IL | / | / | 2.5 | dB | ||
| Rejection | DC-5.3 | GHz≥ | 40 | dBc | ||
| Rejection | 10.7-13 | GHz≥ | 40 | dBc | ||
| Passband VSWR | / | / | 1.7 |
Other parameters
| Connector | SMD |
| Impedance | 50Ω |
| Power | 5W Design assurance |
| Work Temp. | -45~+85℃ Design assurance |
| Storage Temp. | -55~+125℃ Design assurance |

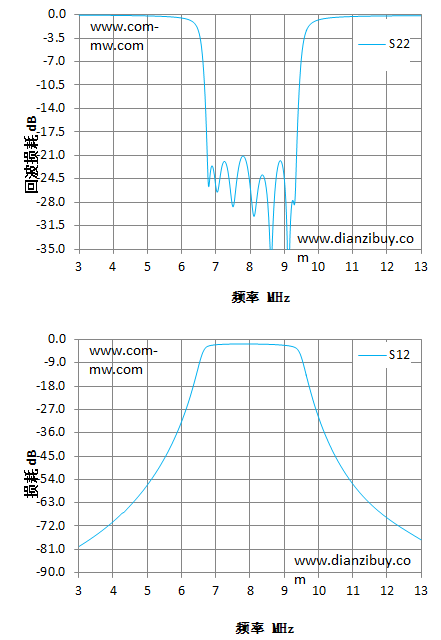

Typical test curve

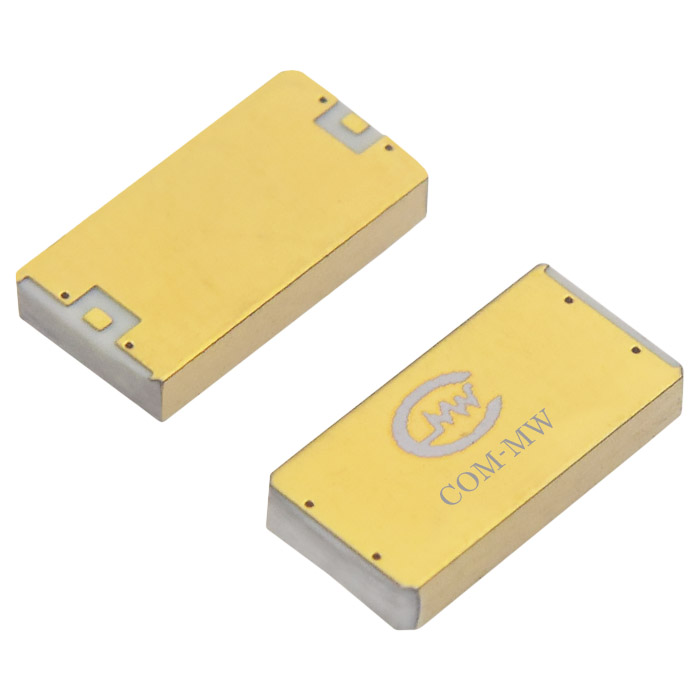

Reference picture

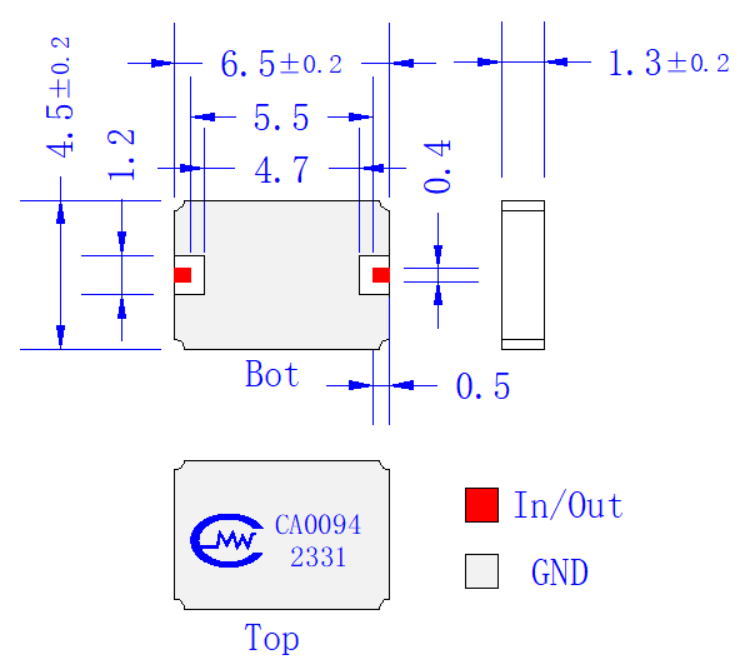

Configuration(mm)

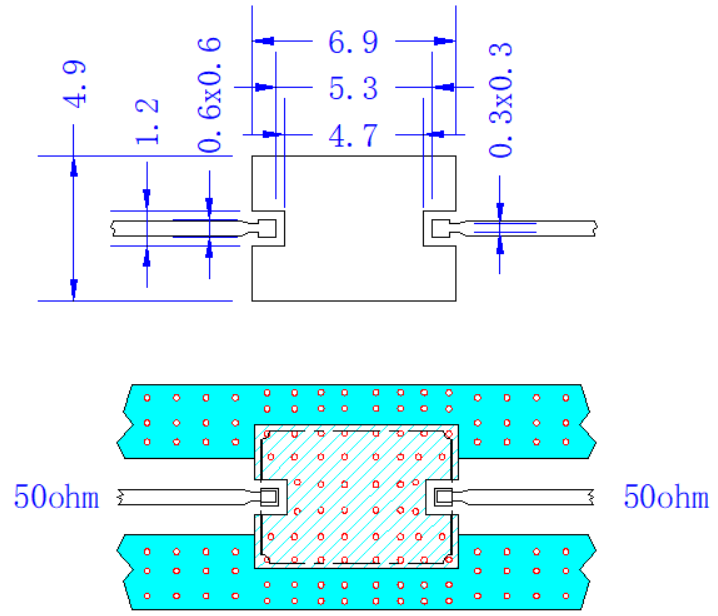

Suggested PCB Layout RO4350 ,H:0.254mm
Note
| 1 | Suggest using separate cavities |
| 2 | The product supports 220 ℃ reflow soldering. |
| 3 | The surface mounted filter should be well grounded. |
| 4 | Clean the surface of the product, do not soak the product in a cleaning solution. |
