LNA
1~18GHz, Gain50dB, SMA, Direct through+amplifier, choose one from two
- DLNA8-1-18G-3561
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1 | ~ | 18 | GHz |
| Gain | 50 | dB | ||
| Gain flatness | ±2 | dB | ||
| Noise figure | 4 | dB | ||
| VSWR | 2.2 | |||
| P-1dB | 15 | dBm | ||
| Max input power | 10 | dBm |
Other parameters
| Connector | SMA-F |
| Connector material | Nickel plating |
| Impedance | 50Ω |
| Working voltage | +24V |
| Operation Temp. | -20~+60℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | Direct through+amplifier, choose one from two |

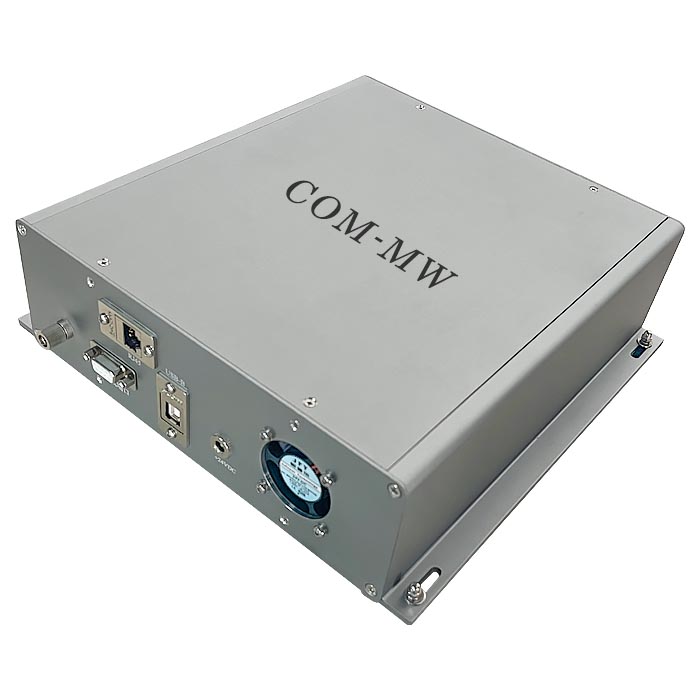

Reference picture

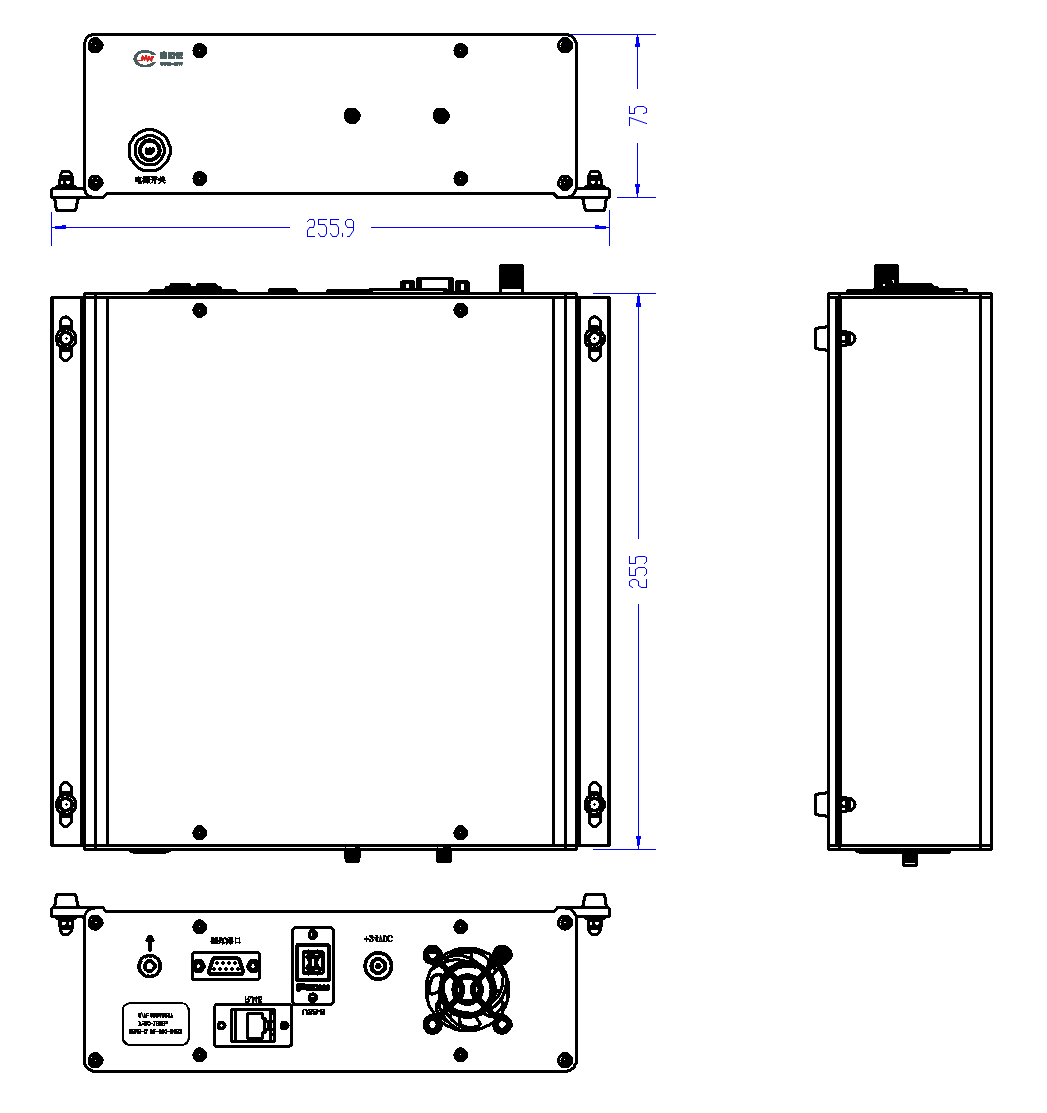

Configuration(mm)
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
