Power amplifier
10~500MHz, Gain40dB, P-1dB36, Psat37dBm, SMA
- DPA8-10-500-3217
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
High power
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 10 | ~ | 500 | MHz |
| Gain | 40 | dB | ||
| Gain flatness | ±2 | dB | ||
| VSWR | 2.5 | |||
| P-1dB | 36 | dBm | ||
| Psat | 37 | dBm | ||
| Max input power | 10 | dBm |
Environmental
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +28V |
| Working current | 1500mA |
| Operation Temp. | -40~+70℃ Design assurance |

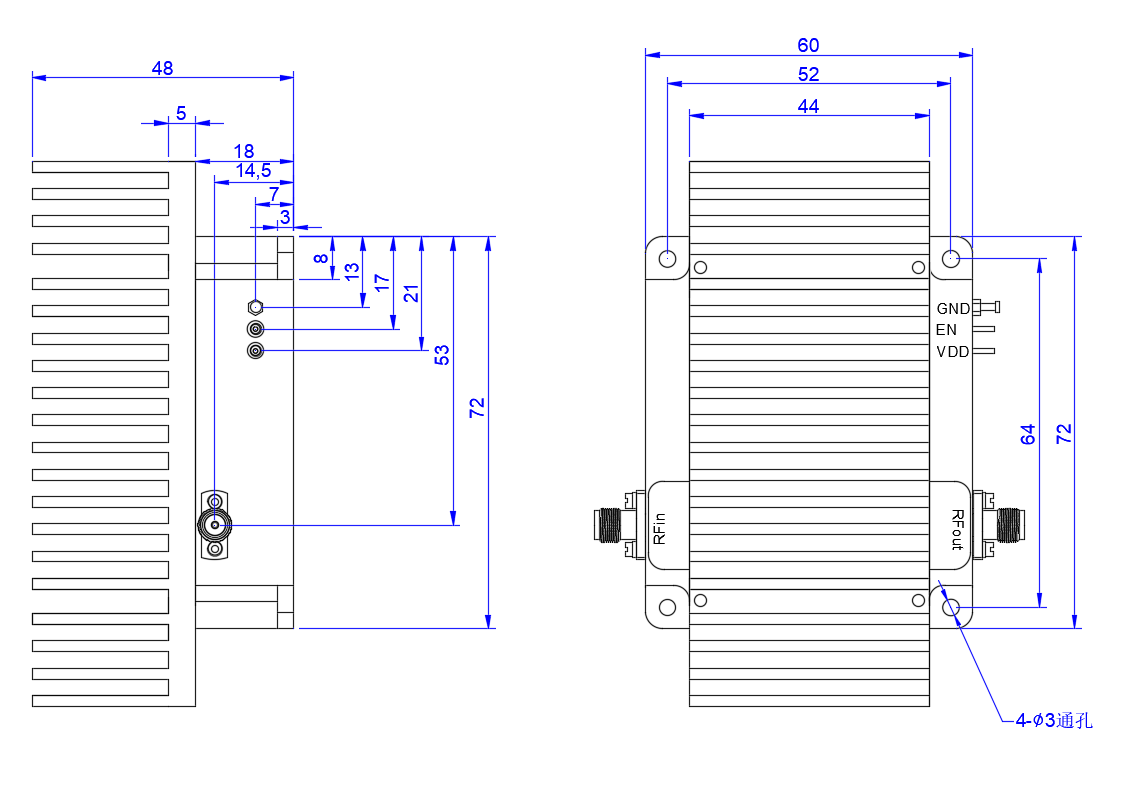

Reference picture
Configuration
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
