Power amplifier
5.1~5.3GHz, Gain42dB, Output power70W, Output portN-F
- DPA8-5.1-5.3G-3973
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units | Note |
| Frequency | 5.1 | ~ | 5.3 | GHz | |
| Gain | 40 | 42 | dB | Saturated gain | |
| Flatness in band | ±3 | dB | |||
| Input VSWR | 2.0 | 2.2 | |||
| Output power | 60 | 70 | W | CW | |
| Efficiency | 28 | 30 | % | ||
| Harmonic Rejection | 40 | dBc | |||
| Spurious suppression | 55 | dBC | F0±300k | ||
| ACP | 65 | dBC |
Other parameters
| Input connector | SMA-F |
| Output port | N -F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +28±4V |
| Working current | 9A |
| Working temperature | -40~+65℃ Design assurance |
| Other | For long-term work, it is recommended to keep the temperature below 40 ℃ |
| 3 |
Typical test data
| F（GHz） | 5 | 5.04 | 5.1 | 5.16 | 5.22 | 5.28 | 5.3 | 5.36 |
| VSWR（IN） | 2.08 | 2.02 | 1.81 | 1.46 | 1.36 | 1.7 | 1.72 | 1.78 |
| Psat（dBm） | 49.02 | 48.73 | 48.89 | 48.69 | 48.46 | 48.17 | 48.02 | 48.01 |
| Psat（W） | 79.8 | 74.64 | 77.45 | 73.96 | 70.15 | 65.61 | 63.39 | 63.24 |
| Gain（sat）（dB） | 49.02 | 48.73 | 48.89 | 48.69 | 48.46 | 48.17 | 48.02 | 48.01 |
| Ids（A） | 8.68 | 8.21 | 8.76 | 8.71 | 8.75 | 8.18 | 8 | 7.85 |
| η(%) | 32.83 | 32.47 | 31.57 | 30.33 | 28.63 | 28.65 | 28.3 | 28.77 |
| 2nd harmonic rejection (dBc) | 39.5 | 42 | 41.5 | 41.8 | 42.4 | 39.7 | 38.6 | 40.2 |
| 3rd harmonic rejection (dBc) | 52 | 48 | 49.8 | 54.7 | 55.7 | 56.5 | 54 | 53.7 |
| 4th harmonic rejection (dBc) | 64 | 66 | 72 | 61.2 | 60.6 | 53.8 | 53.2 | 75 |
| Spurious suppression | 60 | 61 | 59 | 58 | 57.6 | 56.3 | 57 | 56.7 |
| ACP（dBc） | 66.8 | 66 | 66.1 | 66 | 66.2 | 66.4 | 66.5 | 67.3 |

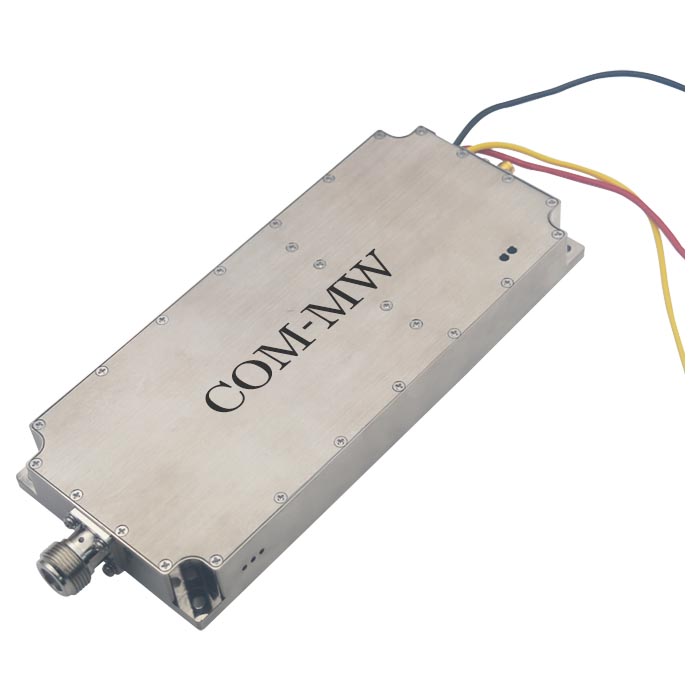

Reference picture

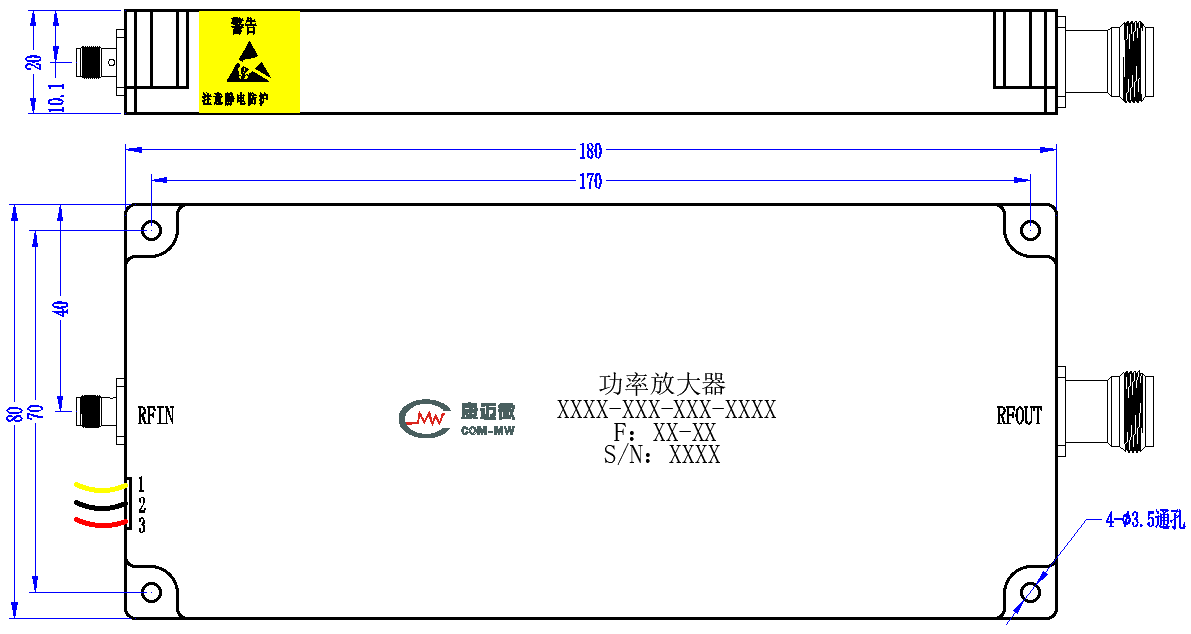

Configuration

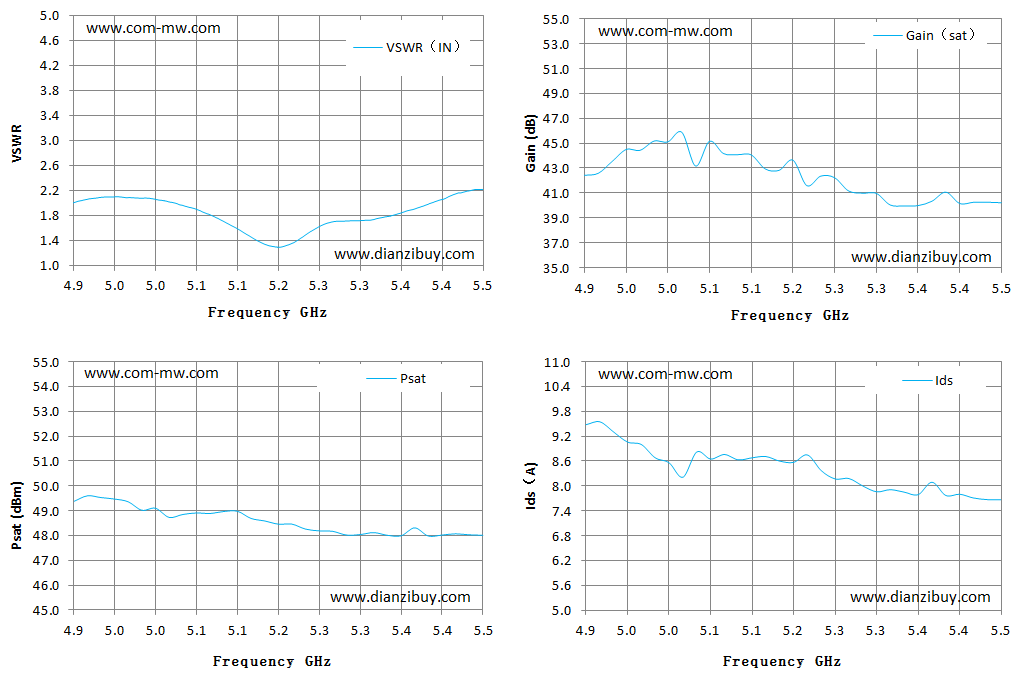

Typical test curve
Port Definition
| No. | Name | definition | Direction | Note |
| 1 | EN | Enable (yellow line) | I | 0:“OFF”；1（+5V）:“ON” |
| 2 | GND | Power Ground (Black Line) | I | |
| 3 | VD | Power supply (red line) | I | +28 ±4V |
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
Equipped with output on/off control interface
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
