Power amplifier
1~18GHz, Gain35dB, P-1dB27dBm, Psat33dBm, SMA
- DPA8-1-18G-2627
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1 | ~ | 18 | GHz |
| Gain | 35 | dB | ||
| Gain flatness | ±2 | ±2.5 | dB | |
| VSWR | 2 | |||
| P-1dB | 27 | dBm | ||
| Psat | 33 | dBm |
Environmental
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +28V |
| Working current | 1200mA |
| Operation Temp. | -40~+60℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | Reverse isolation ≥ 80dB; IP3≥37dBm |
Typical test data
| Frequency | S11 | S22 | GAIN | P-1 | PSAT | IDD@P-1 | IDD@PSAT |
| GHz | VSWR | VSWR | dB | dBm | dBm | A | A |
| 0.5 | 1.41 | 3.67 | 34.44 | 25.06 | 33.3 | 0.55 | 0.93 |
| 1.82 | 1.17 | 1.19 | 39.35 | 27.64 | 37.5 | 0.56 | 1.05 |
| 3.14 | 1.24 | 1.22 | 38.43 | 27.92 | 37.95 | 0.56 | 1.07 |
| 4.46 | 1.16 | 1.24 | 36.91 | 27.17 | 36.96 | 0.57 | 1.03 |
| 5.79 | 1.13 | 1.02 | 37.41 | 26.77 | 36.89 | 0.57 | 1.07 |
| 7.11 | 1.08 | 1.36 | 37.32 | 27.46 | 36.47 | 0.56 | 1 |
| 8.43 | 1.18 | 1.41 | 37.46 | 27.26 | 35.59 | 0.57 | 1.05 |
| 9.75 | 1.22 | 1.06 | 37.91 | 27.41 | 35.74 | 0.57 | 1.04 |
| 11.07 | 1.36 | 1.29 | 37.89 | 27.77 | 36.08 | 0.57 | 1.04 |
| 12.39 | 1.61 | 1.30 | 37.39 | 27.88 | 35.6 | 0.57 | 0.97 |
| 13.71 | 1.53 | 1.24 | 37.21 | 27.84 | 35.23 | 0.57 | 0.98 |
| 15.04 | 1.53 | 1.62 | 37.48 | 27.31 | 34.64 | 0.59 | 1.02 |
| 16.36 | 1.25 | 1.51 | 38.3 | 28.9 | 35.9 | 0.6 | 0.98 |
| 17.68 | 1.37 | 1.12 | 38.04 | 29.57 | 34.33 | 0.62 | 0.93 |
| 19 | 1.78 | 1.42 | 36.11 | 29.58 | 32.69 | 0.64 | 0.85 |

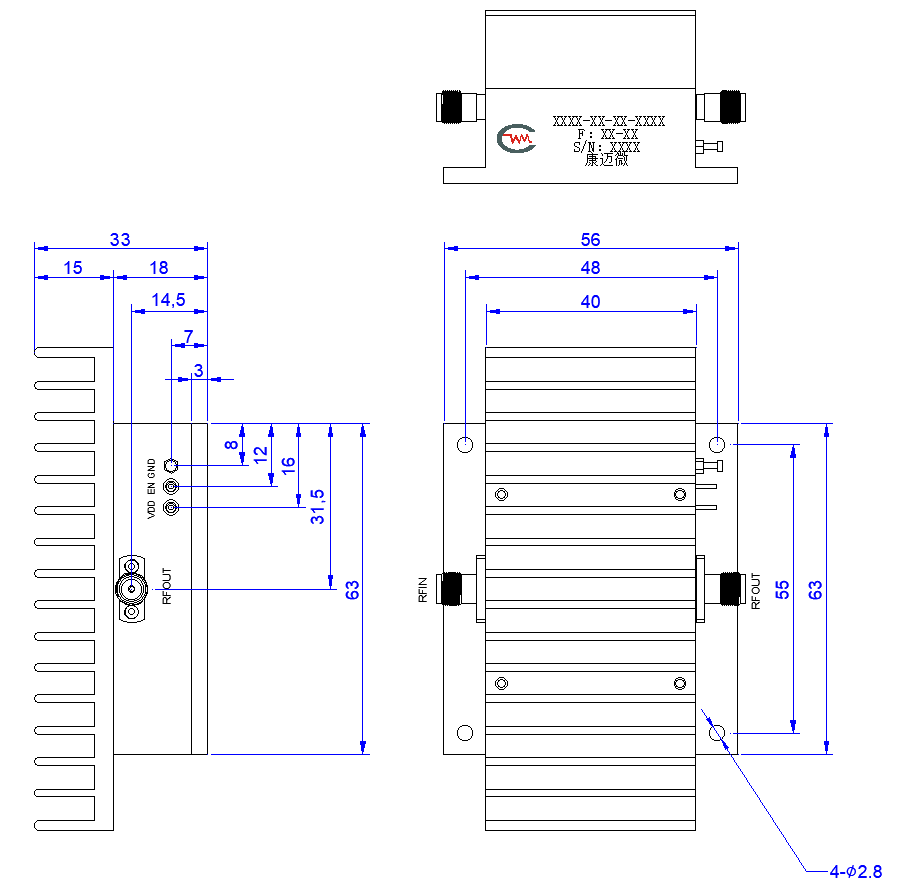

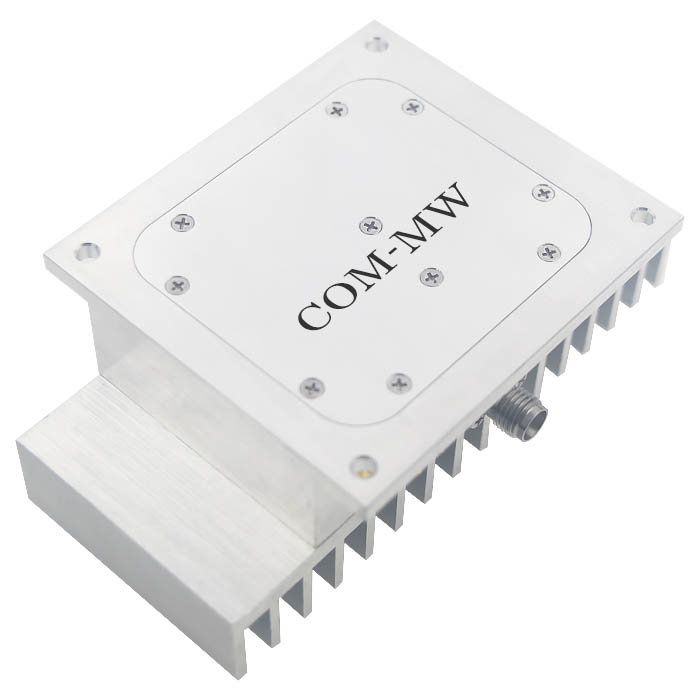

Reference picture
Configuration

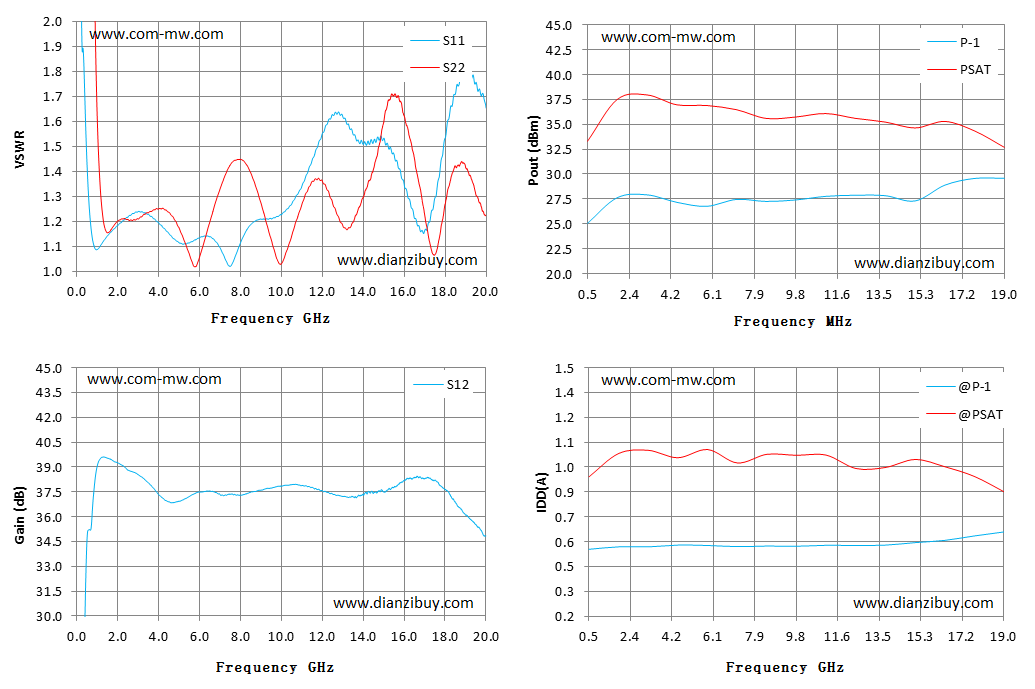

Typical test curve
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
