Power amplifier
50~8000MHz, Gain50dB, SMA
- DPA8-50-8000-9694
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 50 | ~ | 8000 | MHz |
| Gain | 50 | dB | ||
| Gain flatness | ±2.5 | dB | ||
| VSWR | 2.2 | |||
| P-1dB | 27 | 30 | dBm |
Other parameters
| Connector | SMA-F or K |
| Impedance | 50Ω |
| Working voltage | +12V |
| Working current | 850mA |
| Operation Temp. | -40~+60℃ Design assurance |
Typical test data
| Frequency | S11 | S22 | GAIN | P-1 | PSAT |
| GHz | VSWR | VSWR | dB | dBm | dBm |
| 0.01 | 5.89 | 15.55 | 54.03 | 25.5 | 27.7 |
| 0.72 | 1.31 | 1.55 | 53.46 | 30.4 | 32.4 |
| 1.44 | 1.46 | 1.54 | 53.59 | 30.5 | 32.9 |
| 2.15 | 1.5 | 1.48 | 53.6 | 30.9 | 33.1 |
| 2.86 | 1.57 | 1.46 | 53.11 | 31.1 | 32.9 |
| 3.58 | 1.65 | 1.15 | 53.5 | 31.7 | 33.4 |
| 4.29 | 1.72 | 1.12 | 52.93 | 31.5 | 33.3 |
| 5.01 | 1.77 | 1.08 | 52.98 | 31.2 | 33.1 |
| 5.72 | 1.73 | 1.23 | 52.93 | 31 | 32.8 |
| 6.43 | 1.62 | 1.28 | 53.28 | 31.1 | 32.5 |
| 7.15 | 1.44 | 1.24 | 53.18 | 30.7 | 32.6 |
| 7.86 | 1.28 | 1.15 | 52.89 | 30.4 | 32.5 |
| 8.57 | 1.16 | 1.12 | 52.34 | 29.5 | 31.9 |
| 9.29 | 1.21 | 1.14 | 51.92 | 29.8 | 32 |
| 10 | 1.33 | 1.15 | 51.56 | 29.4 | 31.4 |

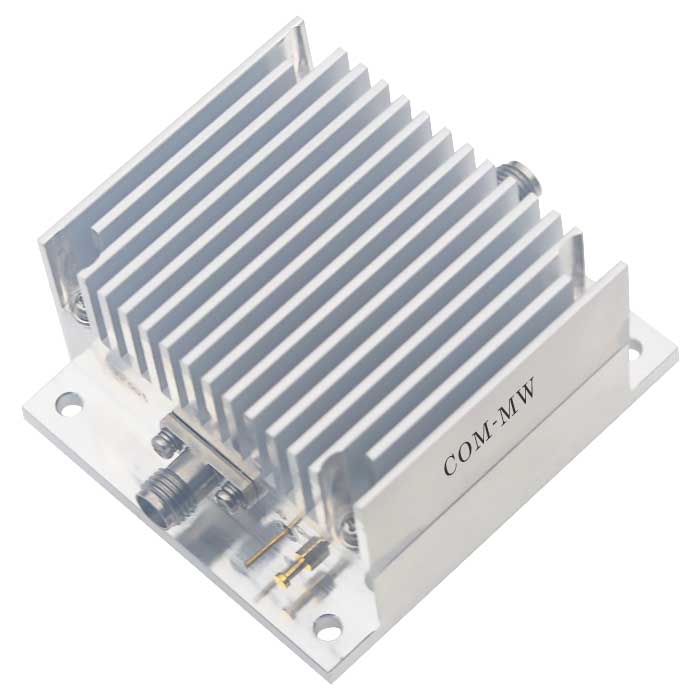

Reference picture

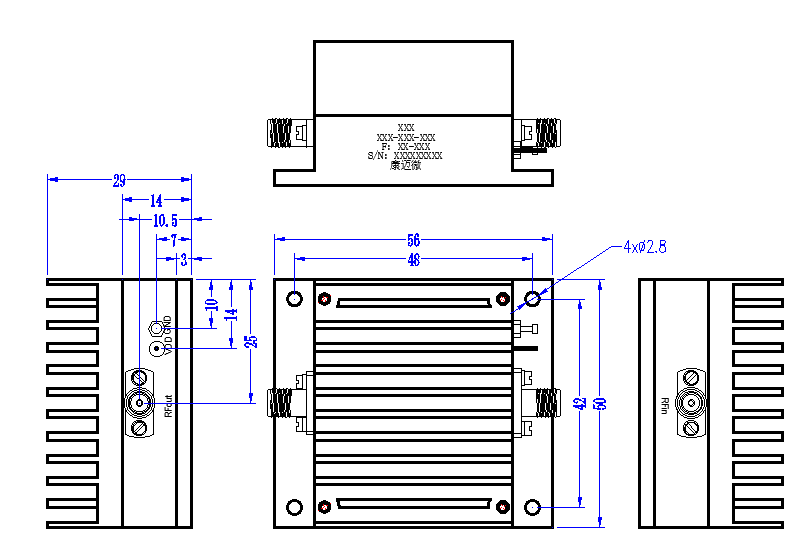

Configuration

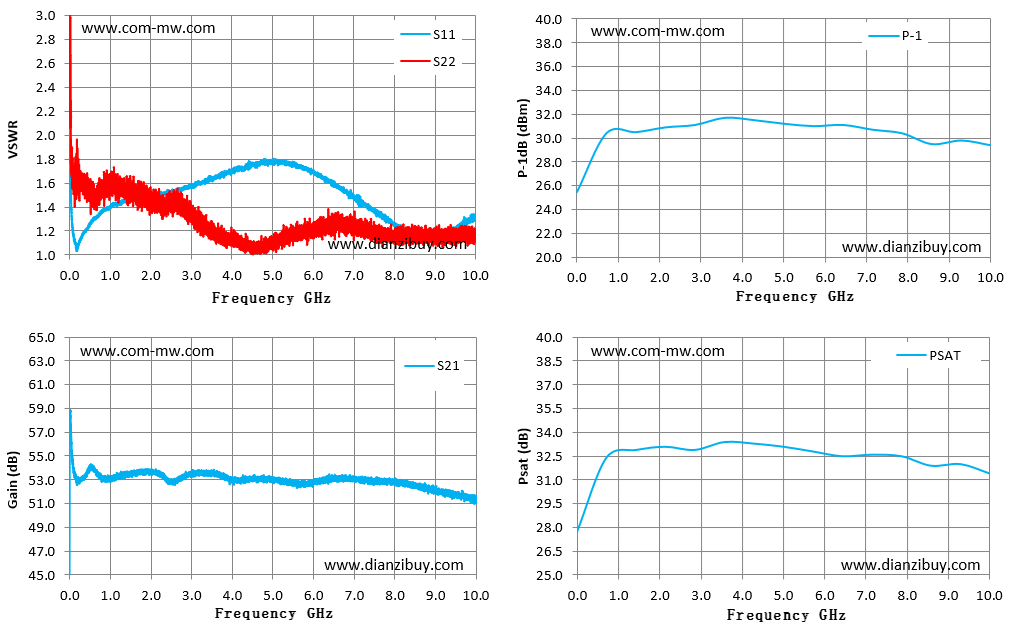

Typical test curve
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
Working or storage temperature less than 125 ℃;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
