LNA
0.1~40GHz, Gain25dB, Noise figure5dB, P-1dB10dBm, 2.92-F
- DLNA8-1-40G-3700
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.1 | ~ | 40 | GHz |
| Gain | 25 | dB | ||
| Gain flatness | ±3 | dB | ||
| Noise figure | 5 | dB | ||
| VSWR | 2 | |||
| P-1dB | 10 | dBm | ||
| Max input power | 5 | dBm | ||
| Spur reduction | 65 | dBc | ||
| Harmonic Rejection | 25 | dBc | ||
| OIP3 | 23 | dBm |
Other parameters
| Connector | 2.92-F |
| Connector material | Stainless steel |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| Frequency | S11 | S22 | GAIN | P-1 | PSAT | NF |
| GHz | VSWR | VSWR | dB | dBm | dBm | dB |
| 0.01 | 1.21 | 1.55 | 32.88 | 14.23 | 16.38 | 12.29 |
| 0.02 | 1.22 | 1.54 | 33 | 14.96 | 17.16 | 9.4 |
| 0.05 | 1.21 | 1.55 | 32.88 | 14.32 | 16.62 | 6.49 |
| 0.08 | 1.21 | 1.55 | 32.9 | 14.3 | 16.77 | 5.52 |
| 0.1 | 1.21 | 1.54 | 32.92 | 14.34 | 16.84 | 4.86 |
| 0.2 | 1.22 | 1.54 | 33 | 13.97 | 16.54 | 4.44 |
| 0.5 | 1.28 | 1.45 | 33.47 | 14.39 | 16.86 | 3.51 |
| 0.8 | 1.29 | 1.48 | 32.59 | 14.25 | 16.89 | 3.83 |
| 1 | 1.28 | 1.52 | 31.87 | 14.09 | 14.64 | 3.54 |
| 5 | 1.64 | 1.16 | 31.17 | 16.12 | 17.93 | 3.66 |
| 10 | 1.61 | 1.26 | 28.69 | 15.75 | 17.54 | 3.01 |
| 15 | 1.68 | 1.77 | 28.7 | 13.79 | 15.78 | 2.99 |
| 20 | 1.79 | 1.49 | 27.34 | 14.58 | 16.42 | 3.82 |
| 25 | 1.53 | 1.38 | 26.75 | 14.31 | 16.12 | 4.32 |
| 30 | 1.46 | 1.3.2 | 26.92 | 13.43 | 15.93 | 4.72 |
| 35 | 1.29 | 1.61 | 27.72 | 11.88 | 15.2 | 5.11 |
| 40 | 1.85 | 1.52 | 27.51 | 11 | 15.1 | 5.93 |
| 42 | 2.1 | 1.13 | 26.72 | 10.59 | 14.57 | 6.52 |
Reference picture
Configuration(mm)

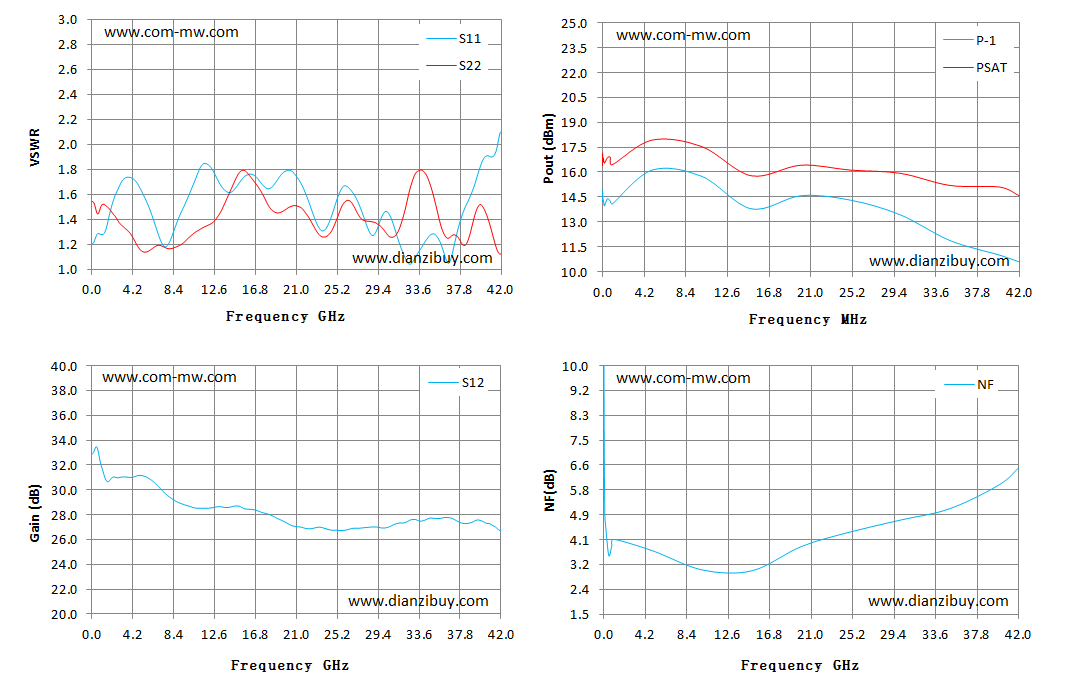

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
