Power amplifier
10~500MHz, Gain44dB, Input VSWR2dBm, P-1dB40dBm, Psat44dBm
- DPA8-10-500-3139
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, high-power output.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 10 | ~ | 500 | MHz |
| Gain | 44 | dB | ||
| Gain flatness | ±2 | dB | ||
| Input VSWR | 2 | dBm | ||
| P-1dB | 40 | dBm | ||
| Psat | 44 | dBm | ||
| Spur reduction | 60 | dBc | ||
| Harmonic Rejection | 10 | dBc | ||
| Power | 5 | dBm |
Other parameters
| Connector | N -K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Black |
| Working voltage | +220V |
| Operation Temp. | -25~+55℃ Design assurance |
| Quality Grade | Industrial grade |
| Protection temperature | +80℃ |
Indication Lights
| Name | Color | Light Off | Light On |
| Power | Green | Power off | Power on |
| Power | Red | Normal | Alarm Shutdown |
| Power | Red | Normal | Fault |
D-Sub Male Connector Pin Functions
| Pin | Function | TTL Logic Level(Low) | TTL Logic Level(High) |
| 1 | Temperature Alarm | Normal | Alarm Shutdown |
| 2 | Fan Alarm | Normal | Fault |
| 3 | GND | - | - |
| 4-9 | No connection | - | - |

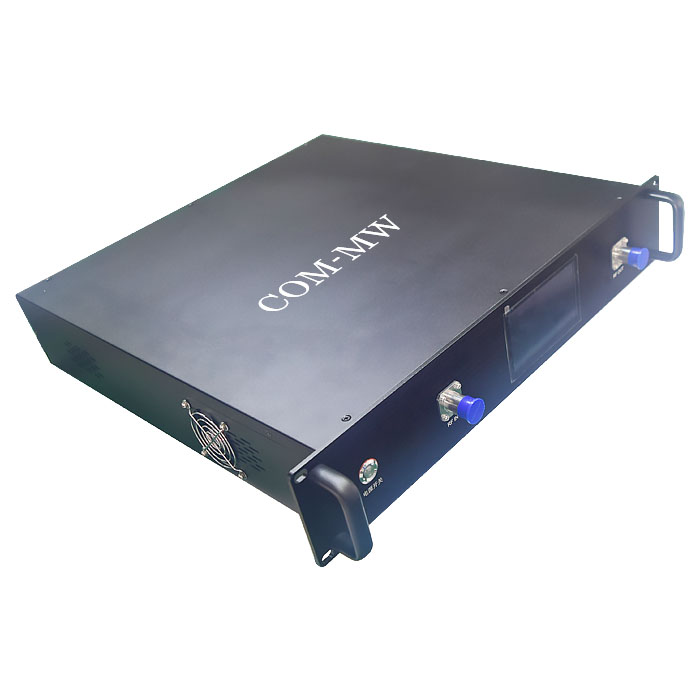

Reference picture

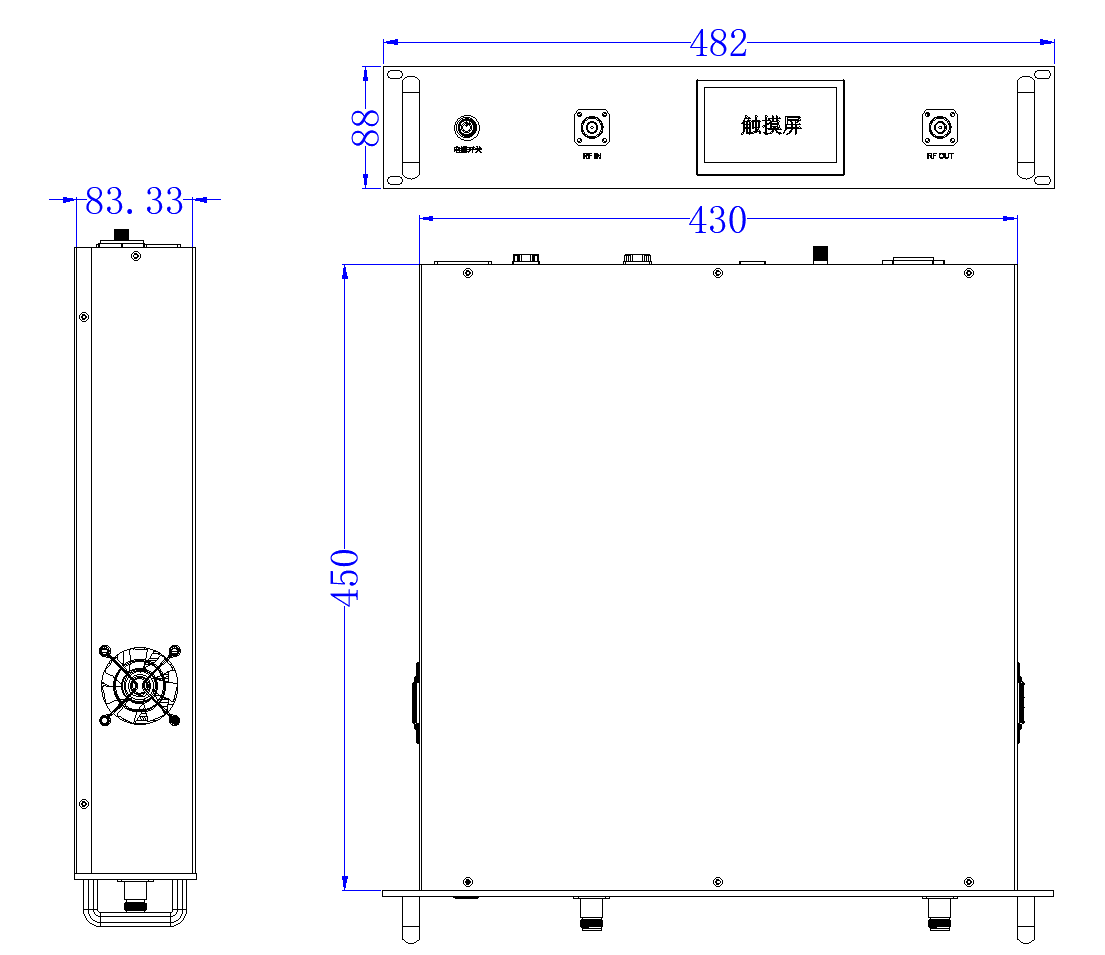

Configuration(mm)
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
