LNA
0.05~20000MHz, Gain30dB, Noise figure3.8dB, P-1dB21dBm, SMA
- DLNA8-0.1-18000-9335
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.05 | ~ | 20000 | MHz |
| Gain | 30 | 32 | dB | |
| Noise figure | 3.8 | dB | ||
| VSWR | 1.8 | |||
| P-1dB | 21 | dBm | ||
| Psat | 23 | dBm | ||
| Max input power | 5 | dBm |
Other parameters
| Connector | SMA-F or K |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 350mA |
| Operation Temp. | -30~+65℃ Design assurance |
Typical test data
| Frequency GHz | S11 VSWR | S22 VSWR | S21 Gain dB | S21 NF dB | P-1 dBm | Psat dBm |
| 0.00005 | 2.43 | 9.26 | 32.16 | \ | \ | \ |
| 0.001 | 1.18 | 1.65 | 37.68 | \ | 21.04 | 25.27 |
| 0.01 | 1.19 | 1.56 | 33.66 | 7.55 | 20.87 | 24.72 |
| 1.58 | 1.16 | 1.60 | 33.33 | 3.91 | 20.72 | 24.42 |
| 3.15 | 1.12 | 1.32 | 33.94 | 3.24 | 21.94 | 25.60 |
| 4.72 | 1.17 | 1.02 | 33.86 | 2.55 | 22.47 | 25.70 |
| 6.29 | 1.11 | 1.24 | 33.76 | 2.04 | 22.18 | 25.88 |
| 7.86 | 1.08 | 1.07 | 33.91 | 2.04 | 22.84 | 26.17 |
| 9.43 | 1.13 | 1.36 | 33.31 | 2.21 | 22.23 | 25.65 |
| 11.01 | 1.18 | 1.39 | 32.82 | 2.43 | 22.61 | 25.61 |
| 12.58 | 1.13 | 1.25 | 32.38 | 2.72 | 21.66 | 24.96 |
| 14.15 | 1.14 | 1.33 | 32.17 | 2.84 | 21.80 | 24.80 |
| 15.72 | 1.10 | 1.31 | 31.91 | 3.31 | 21.04 | 24.34 |
| 17.29 | 1.23 | 1.42 | 31.65 | 3.65 | 21.56 | 24.46 |
| 18.86 | 1.36 | 1.31 | 31.28 | 4.18 | 21.11 | 24.41 |
| 20.43 | 1.07 | 1.22 | 31.22 | 4.17 | 21.62 | 25.22 |
| 22.00 | 1.38 | 1.64 | 30.48 | 4.59 | 22.10 | 25.40 |

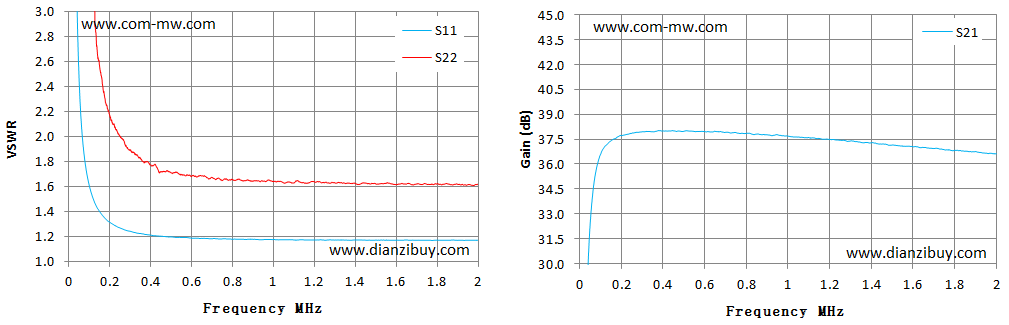

Typical test curve

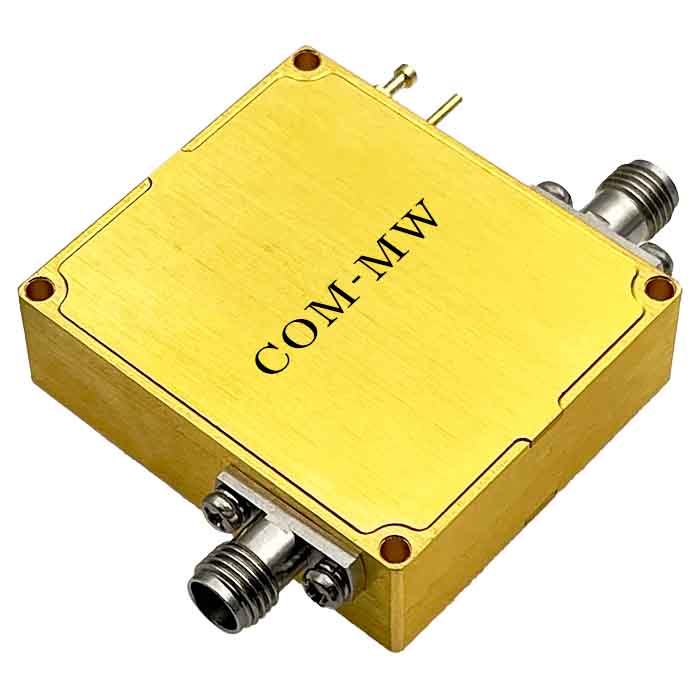

Reference picture

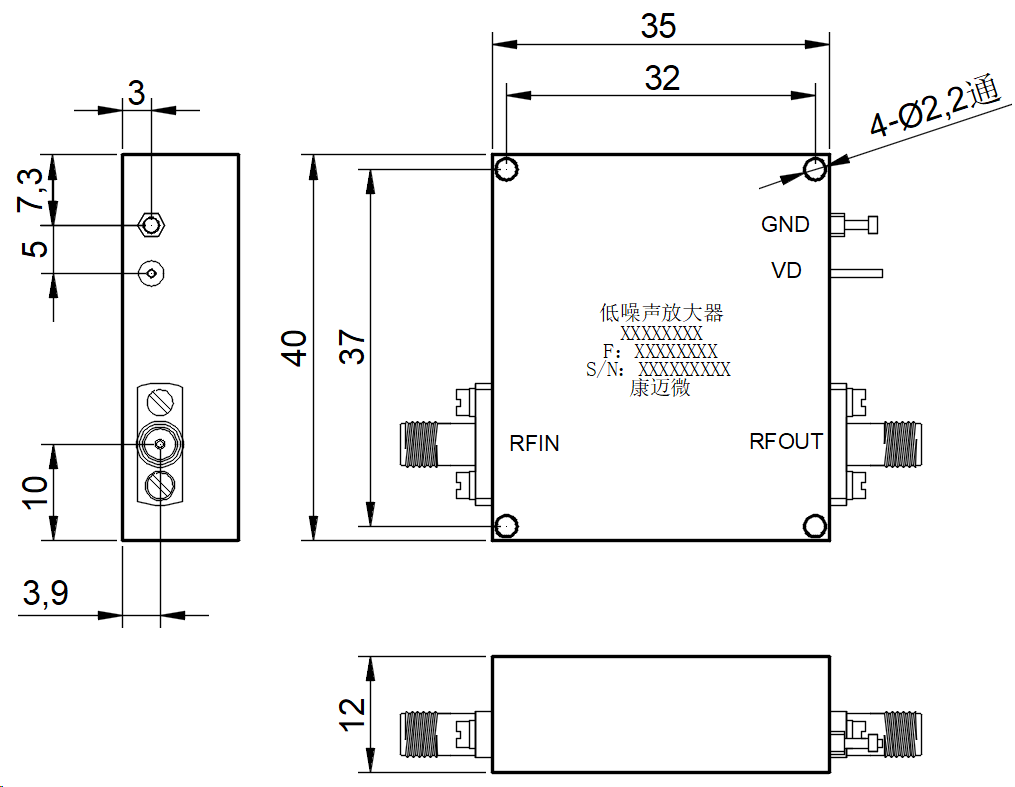

Configuration(mm)

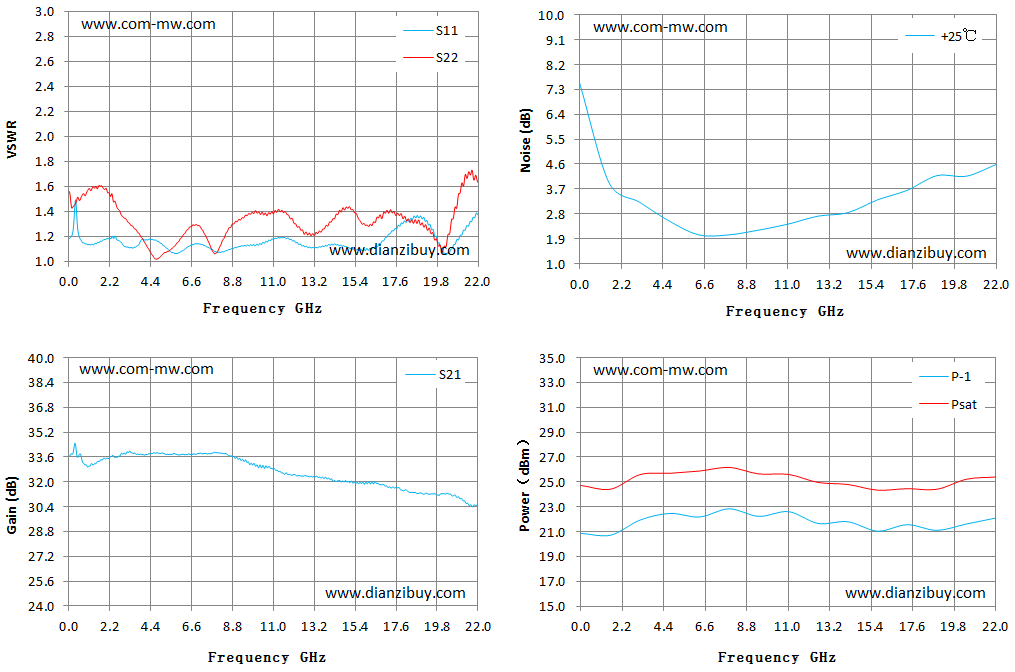

Typical test curve
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
Working or storage temperature less than 125 ℃;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
