Power amplifier
Frequency1~18GHz, Gain35dB, Noise figure3.5dB, P-1dB26dBm, SMA
- DPA8-1-18G-3693
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1 | ~ | 18 | GHz |
| Gain | 35 | dB | ||
| Gain flatness | ±2 | ±2.5 | dB | |
| Noise figure | 3.5 | 5 | dB | |
| VSWR | 2 | 2.5 | ||
| P-1dB | 26 | dBm | ||
| Output Psat | 33 | dBm |
Product Application
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Color conductive oxidation |
| Operation Temp. | -20~+60℃ Design assurance |
Instructions for use
| 1 | Power supply method | DC power supply, powered by a 220V power adapter with interface DC5.5mm (outer diameter) * 2.5mm (inner diameter). |
| 2 | Surface color | Anodizing treatment (blue) |
| 3 | Shell Material | Shell aluminum material |
| 4 | Instructions for using the power switch | The switch is equipped with a power on indicator, and the light will turn on after power on. Once turned on, it can be used. |
Parts list
| 1 | Optional | Equipped with a power adapter |

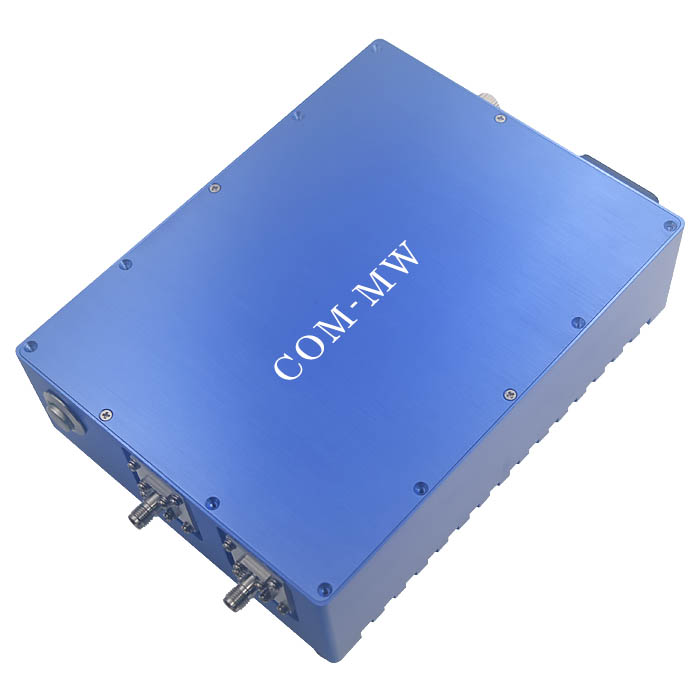

Reference picture

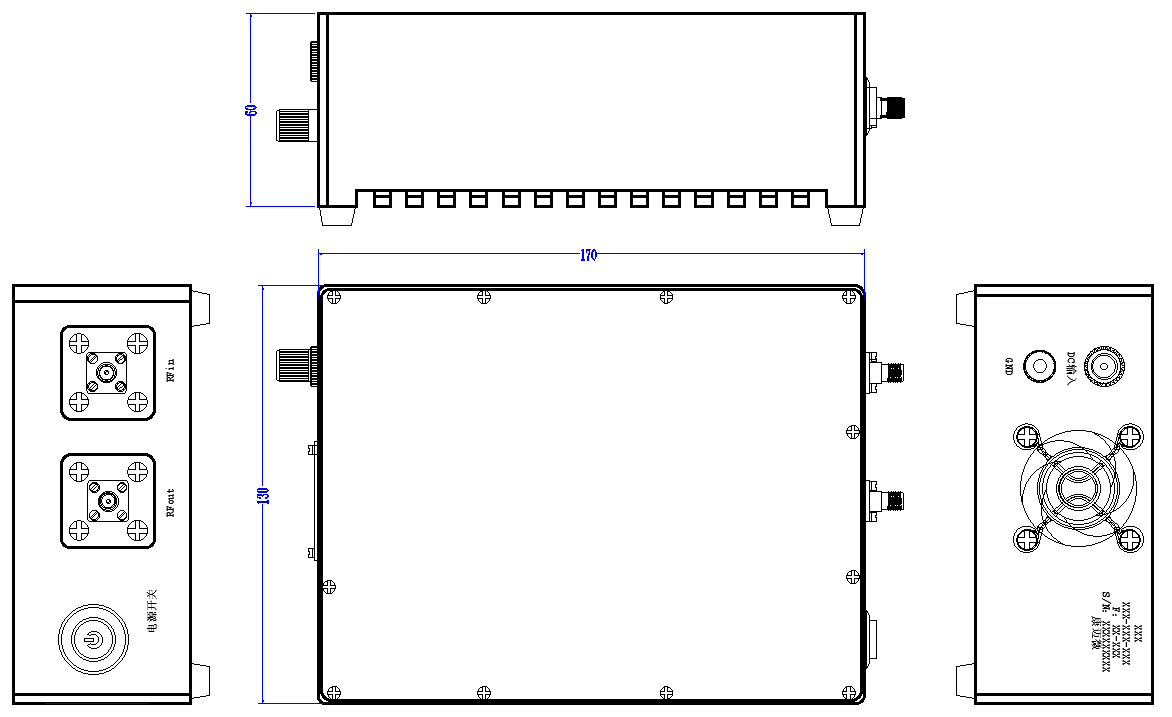

Configuration(mm)
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
