LNA
22~24GHz, GaindB, Noise figure1.8dB, P-1dB10dBm, 2.92
- DLNA8-22-24G-3953
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 22 | ~ | 24 | GHz |
| Gain | 21 | dB | ||
| Gain flatness | ±1 | dB | ||
| Noise figure | 1.8 | dB | ||
| VSWR | 1.8 | |||
| P-1dB | 10 | dBm |
Other parameters
| Connector | 2.92-F&waveguide port |
| Connector material | Stainless steel |
| Waveguide port | BJ260 |
| Impedance | 50Ω |
| Working voltage | +9-15V |
| Working current | 250mA |
| Operation Temp. | -40~+65℃ Design assurance |
| Other | Power supply connector SF812/P-2; Protection level IP65 |

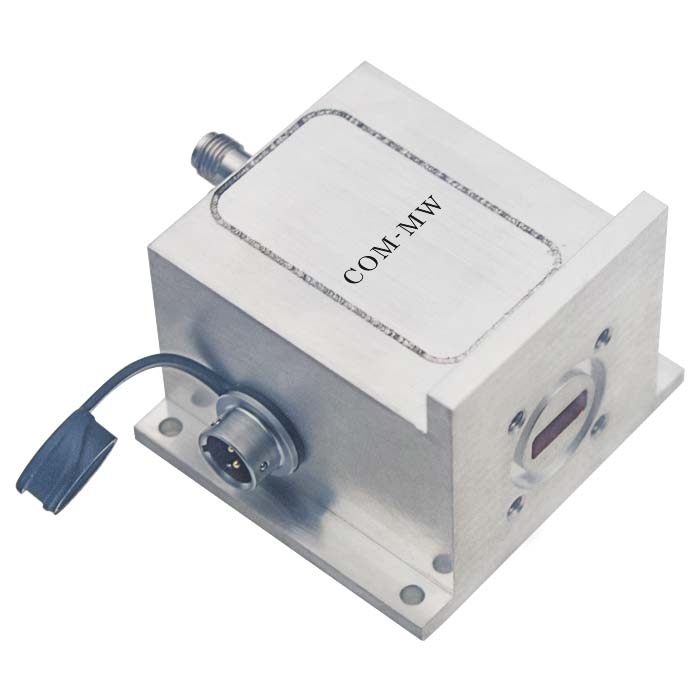

Reference picture

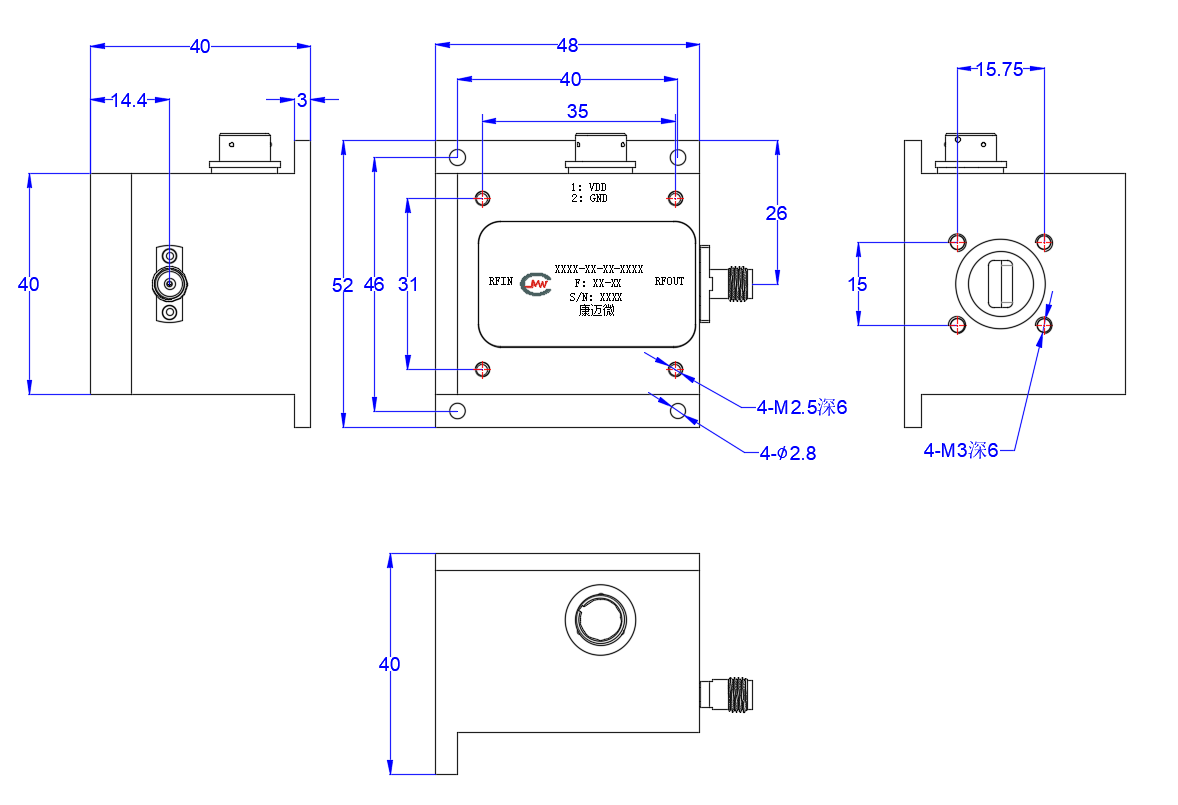

Configuration(mm)
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
