Loop antenna
Frequency0.009~200MHz, Linear Pol., N-K
- ZHX7-0.009-200-1486
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.009 | ~ | 200 | MHz |
| Gain | -60 | dBi | ||
| VSWR | 2.5 | |||
| Antenna factor | 30 | dB/m |
Other parameters
| Polarization | Linear Pol. |
| Connector | N -K |
| Outline size | 455*315*60mm |
| Estimated weight | 800g |
| Surface | Black |
| Operation Temp. | -25~+45℃ Design assurance |

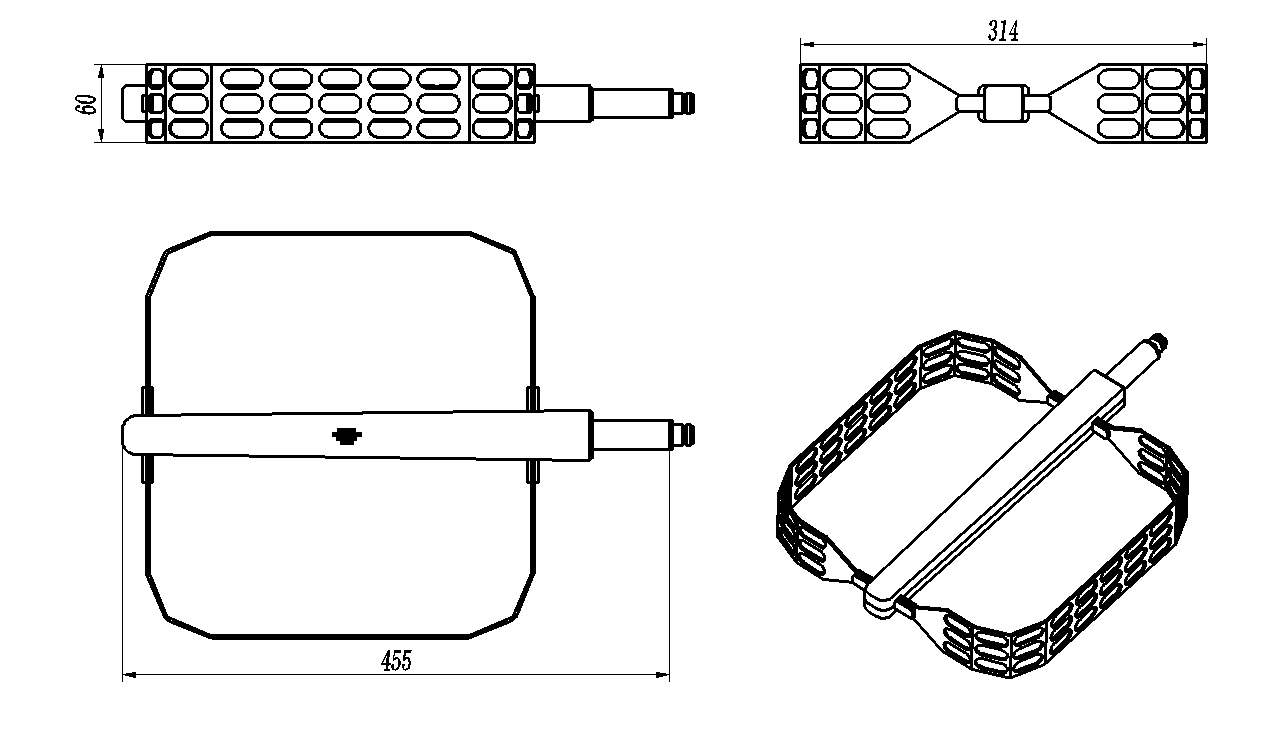

Configuration(mm)
Note
Avoid collisions during installation.
It is strictly prohibited to disassemble antenna accessories, as it may cause poor antenna performance.
The installation position of the antenna should be free of any obstacles.
Outdoor use should be equipped with lightning protection facilities.
May contain electronic components, please do not dispose of them randomly.

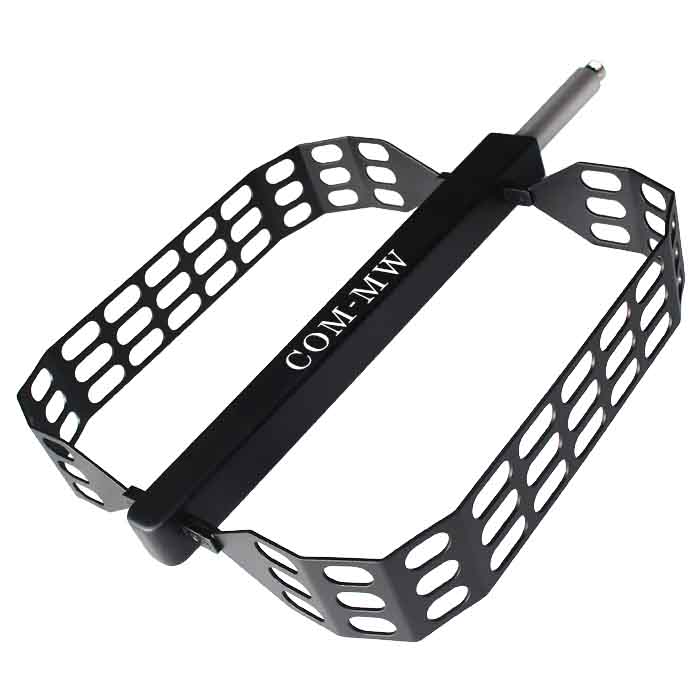

Reference picture

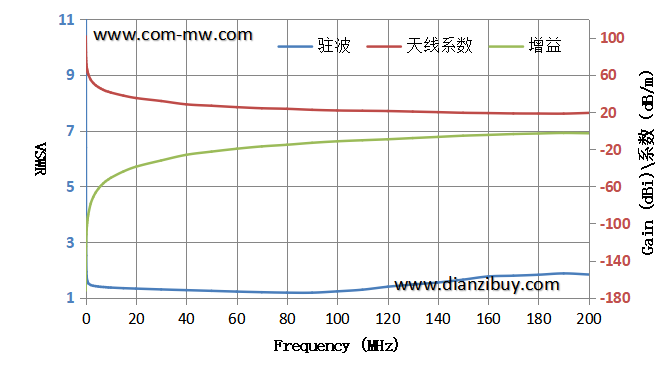

Typical test curve
