LNA
- DLNA8-100-18000-1929
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
工作温度范围宽，高可靠性； 小体积，高性价比。
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 100 | ~ | 18000 | MHz |
| Gain | 35 | dB | ||
| Gain flatness | ±2.75 | dB | ||
| Noise figure | 2.5 | dB | ||
| VSWR | 2.5 | |||
| P-1dB | 10 | dBm | ||
| IP3 | 20 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -30~+65℃ Design assurance |

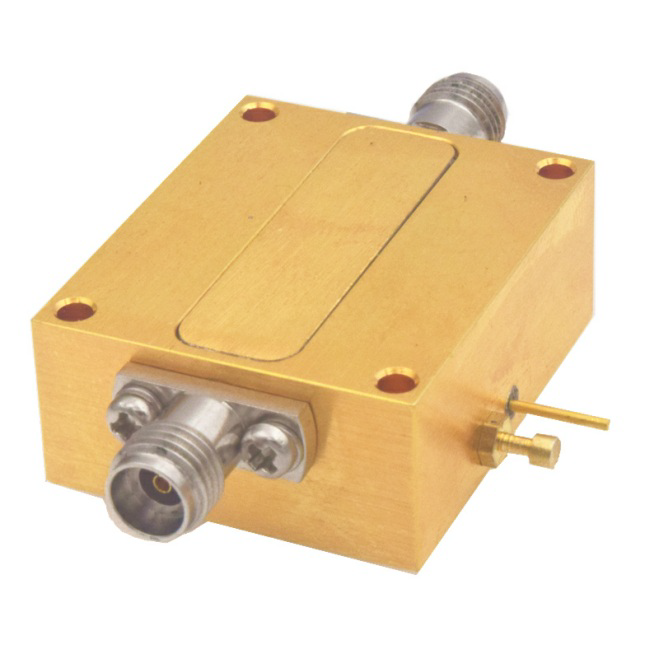

Reference picture

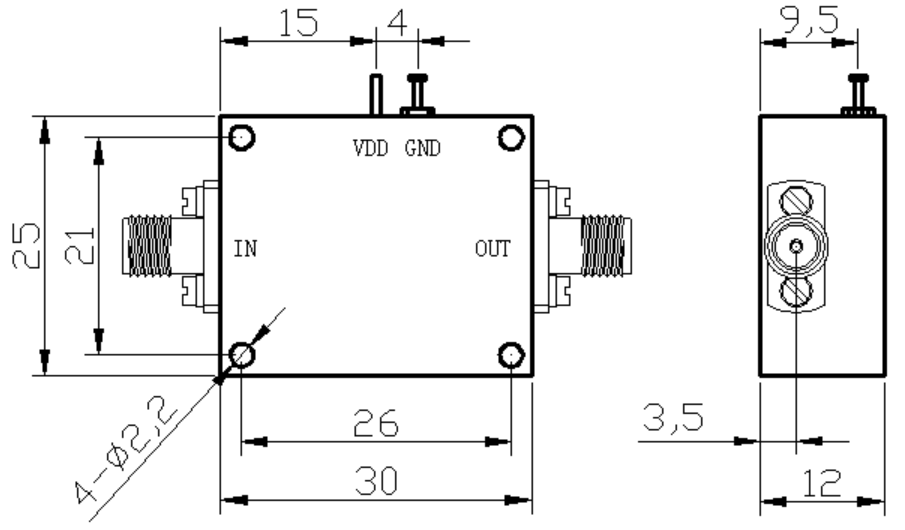

Configuration(mm)
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
