LNA
9~10GHz, Gain27dB, Noise figure1.2dB, P-1dB10dBm, SMA
- DLNA8-9-10G-2814
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 9 | ~ | 10 | GHz |
| Gain | 26 | 27 | 28 | dB |
| Gain flatness | ±1 | dB | ||
| Noise figure | 1.2 | dB | ||
| VSWR | 1.6 | |||
| P-1dB | 10 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -55~+85℃ |
| vibration test | 7Gs@50~500Hz |
Typical test data
| Frequency(GHz) | S11 VSWR | S22 VSWR | S21 Gain dB | Noise dB | P-1dB |
| 6 | 1.75 | 1.06 | 26.66 | 0.84 | 8.73 |
| 6.5 | 1.58 | 1.07 | 26.9 | 0.99 | 9.03 |
| 7 | 1.45 | 1.15 | 27.08 | 0.93 | 9.42 |
| 7.5 | 1.32 | 1.23 | 27.21 | 0.81 | 9.65 |
| 8 | 1.21 | 1.31 | 27.33 | 0.87 | 9.8 |
| 8.5 | 1.1 | 1.36 | 27.38 | 0.91 | 10.28 |
| 9 | 1.03 | 1.4 | 27.36 | 0.91 | 10.78 |
| 9.5 | 1.09 | 1.43 | 27.3 | 0.88 | 11.04 |
| 10 | 1.15 | 1.45 | 27.21 | 0.96 | 11.05 |
| 10.5 | 1.19 | 1.46 | 27.12 | 0.97 | 11.15 |
| 11 | 1.21 | 1.46 | 27.12 | 0.97 | 11.15 |
| 11.5 | 1.23 | 1.45 | 26.76 | 1.07 | 10.92 |
| 12 | 1.27 | 1.4 | 26.77 | 1.08 | 10.66 |
| 12.5 | 1.33 | 1.32 | 26.83 | 1.21 | 10.58 |
| 13 | 1.46 | 1.23 | 26.57 | 1.24 | 10.12 |

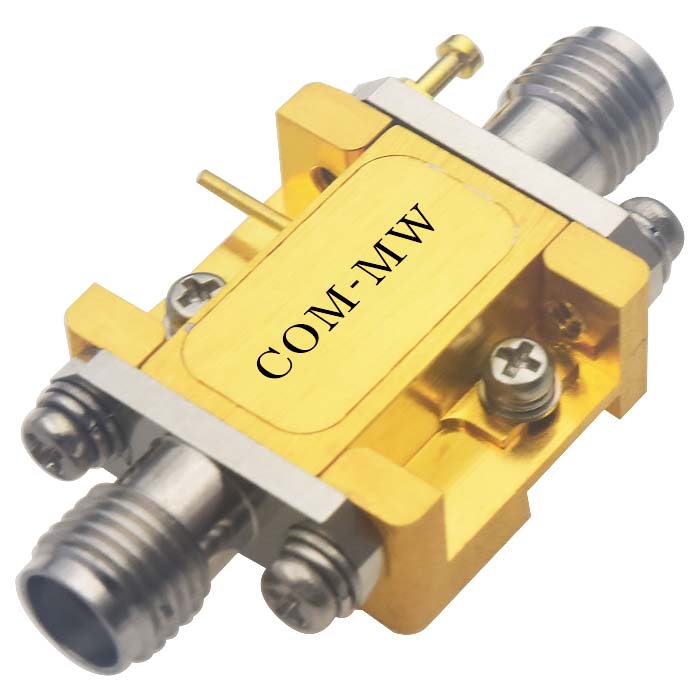

Reference picture

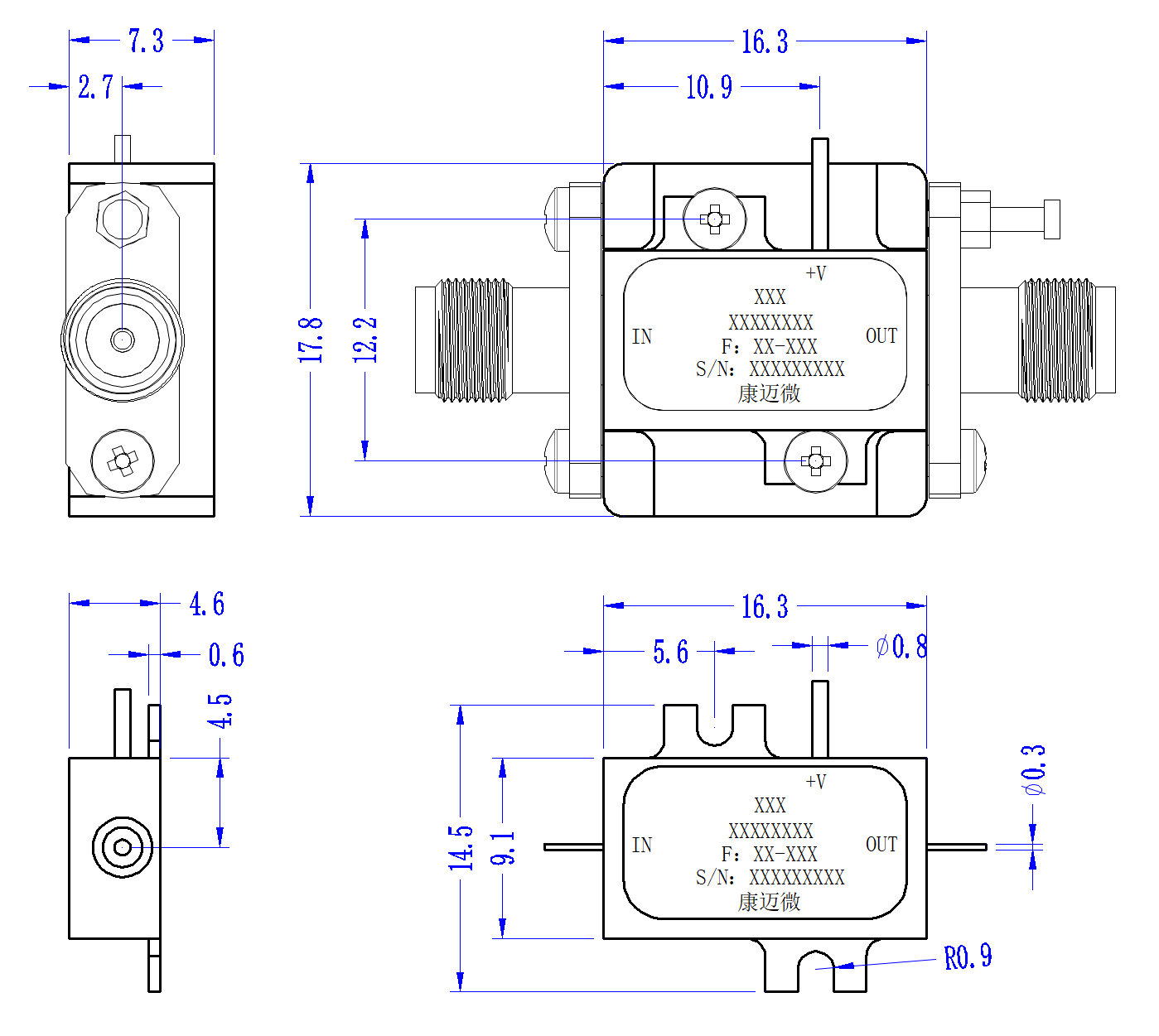

Configuration(mm)

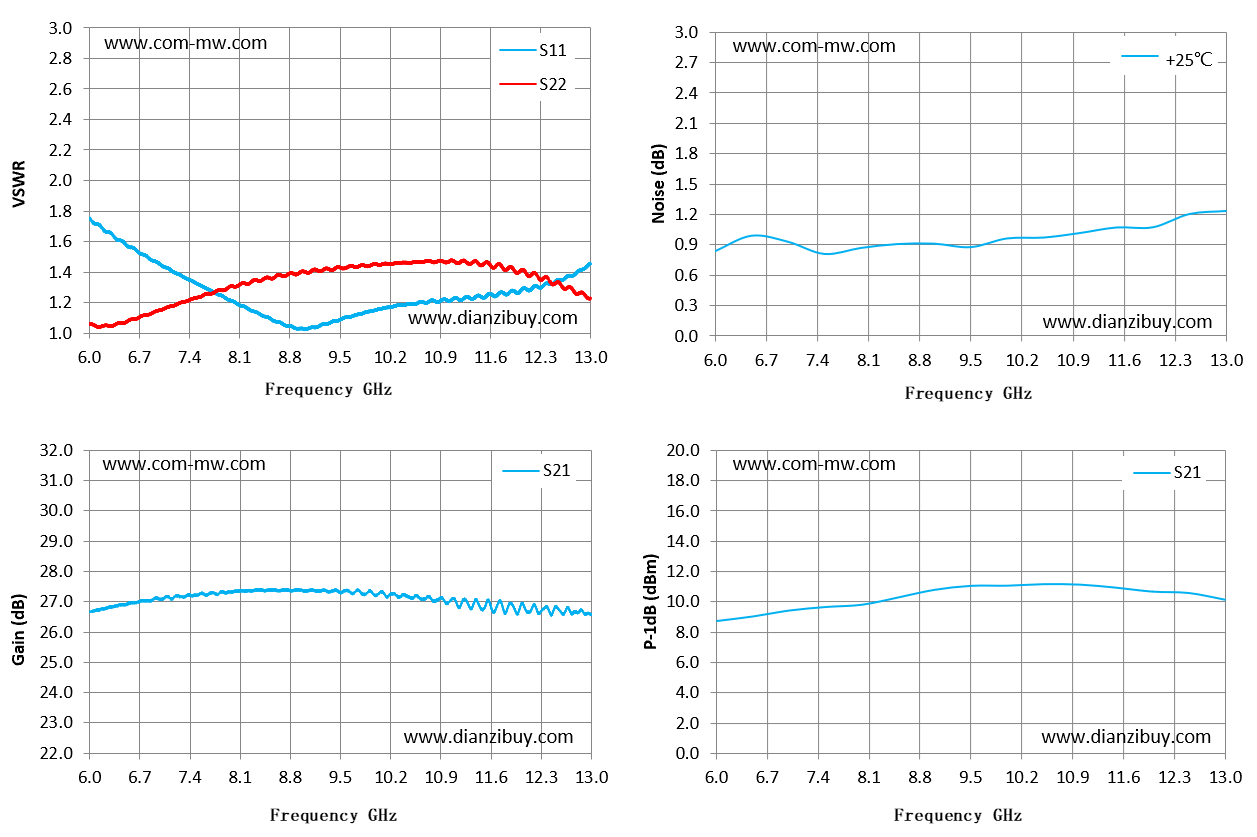

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
